Manufacturer Part No.

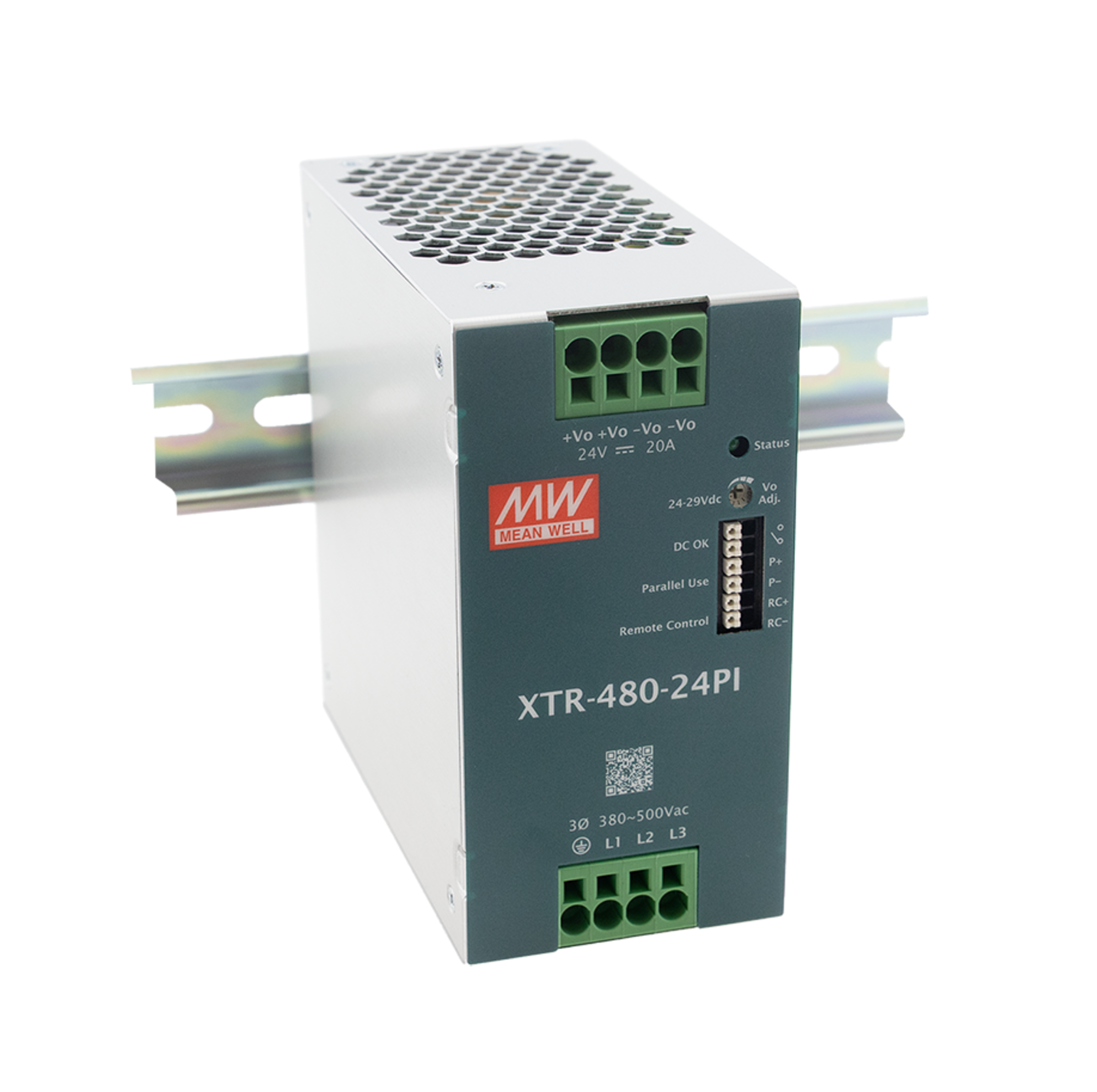

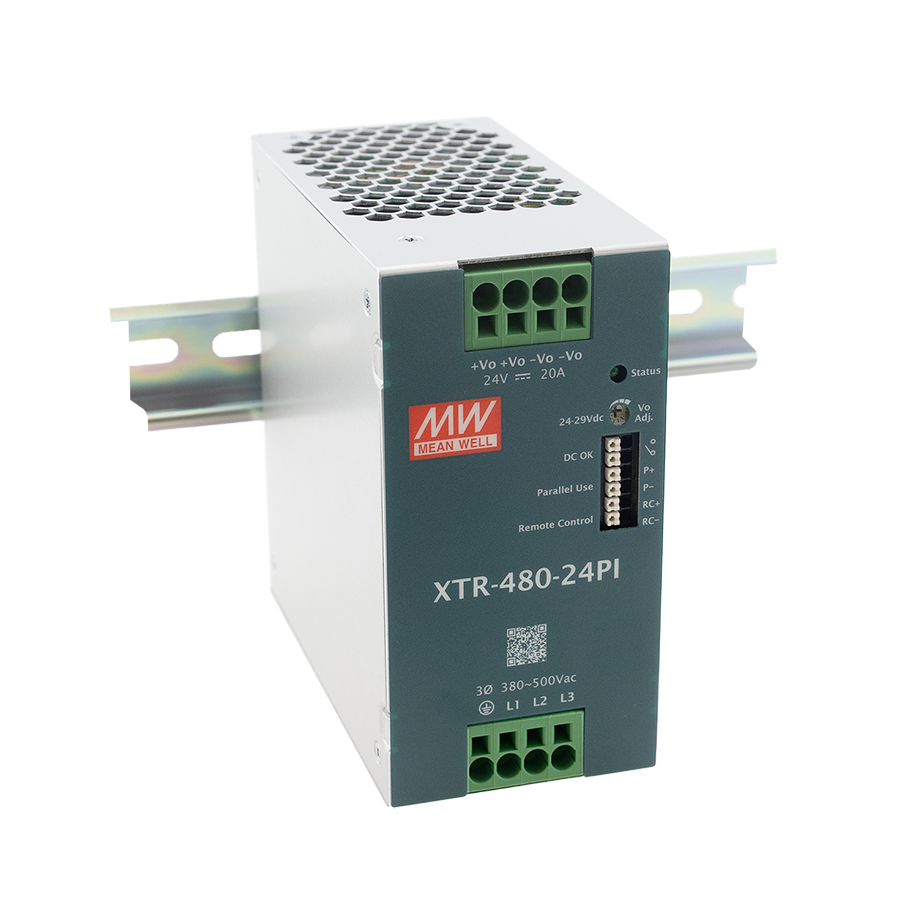

XTR-480-24PI
Schukat Part No.
XTR-480-24PI
57 Pcs. in stock Planned delivery time
Ø 14 Weeks
Active
Available (from stock)
Prices Manufacturer bundle 8 Pcs.
Price per 1 Pcs.

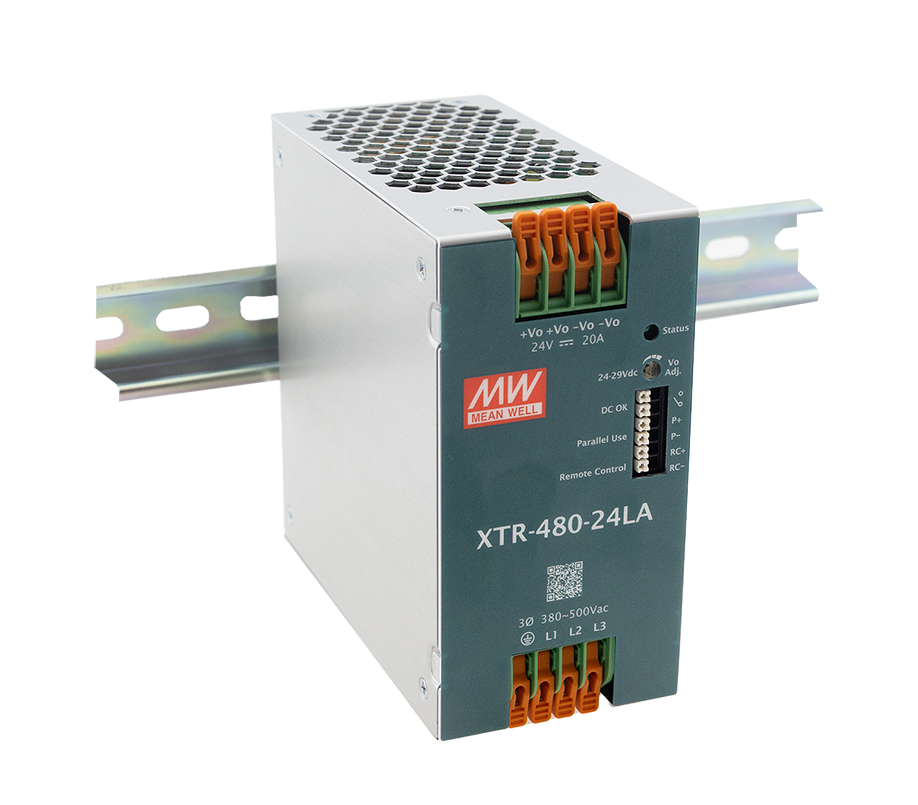

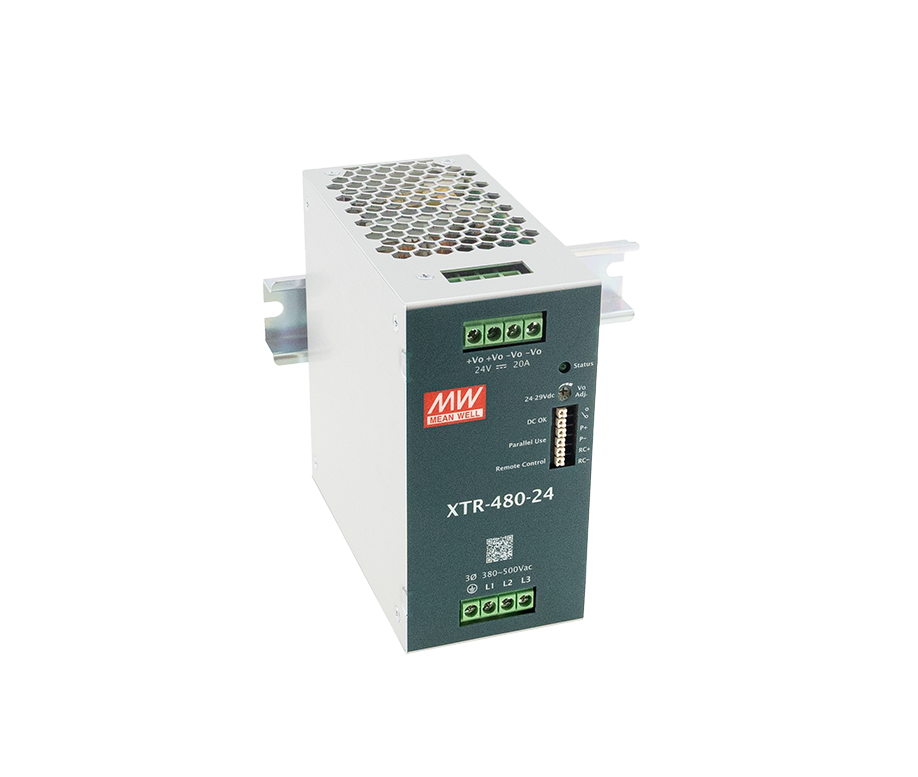

Fact Sheet Package/Case DIN Rail Output Power 480 W Output voltage 24 V Output current 20.000 A Efficiency 94 % RoHS-Conform Manufacturer Series Product group Application ITE Industry MSR/Laboratory Package/Case Dimension: Width Dimension: Height Dimension: Depth Weight Label Manufacturer's warranty (years) Product description The XTR-480 series is an ultra-slim and highly reliable industrial 480W AC/DC DIN rail power supply with 3-phase 320-600Vac input. Key features of this series include a slim 63mm housing that saves installation space in the end system, a maximum efficiency of 95.5% and a low standby power consumption of <3.1W through remote control for energy saving and carbon reduction. It offers constant current output with up to 200% peak power; fanless design, ultra-wide operating temperature range of -40 to +85°C (up to +60°© at full load), OVCIII compliance, parallel function capability up to 1920W, ultra-low inrush current of <10A, built-in remote control, DC OK and ORing FET, internal PCB coating provides basic moisture and dust protection, and it has multiple terminal blocks to choose from. With comprehensive protection features, full safety certifications and a 5-year warranty, the XTR-480 series is a compact, powerful and highly reliable DIN rail power supply. Features DC compatible DC-OK-Signal Peak Power Remote Function Operating Temperature Min. Operating Temperature Max. Storage Temperature Min. Storage Temperature Max. Mains connection/phases Mains frequency min. Mains frequency max. Input voltage min. AC Input voltage max. AC Input voltage min. DC Input voltage max. DC Input current Efficiency No load power, less than Leakage current, max. Inrush current, max. Power factor correction (PFC) Power factor Connection type, input Number of outputs Output Power Output voltage Output voltage tolerance Ripple & Noise Output current Overload protection Type of overload protection Constant Current Limitting Short-circuit protection Overvoltage protection Overtemperature protection Connection type, output Protection class Isolation voltage I/P-O/P Isolation voltage I/P-FG Isolation voltage O/P-FG Overvoltage category Approvals AS/NZ BSMI CCC CE CSA EAC EN IEC RCM UKCA UL Standards (EMC) EN 55032 EN 55032 Class B EN 61204-3 Standards (safety) EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 MEAN_WELL_Katalog_Industrie_2026.pdf
