27 Pcs. in stock
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Operating mode
CP
Output Power
60 W
Output Current Min.
0.900 A
Output Current Max.
1.700 A
Output Voltage Min.
9 V
Output Voltage Max.
54 V
Protection Class IP
IP67
Interfaces
not dimmable
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
XLN-60
Product group
L4590
Application
Lighting
Operating mode
CP
Package/Case
Enclosed Plastic
Dimension: Length
141.5 mm
Dimension: Width
49 mm
Dimension: Height
32 mm
Weight
524 g
Label
MM-Zeichen;SELV
Dimmable
Interfaces
not dimmable
Manufacturer's warranty (years)
5
Product description

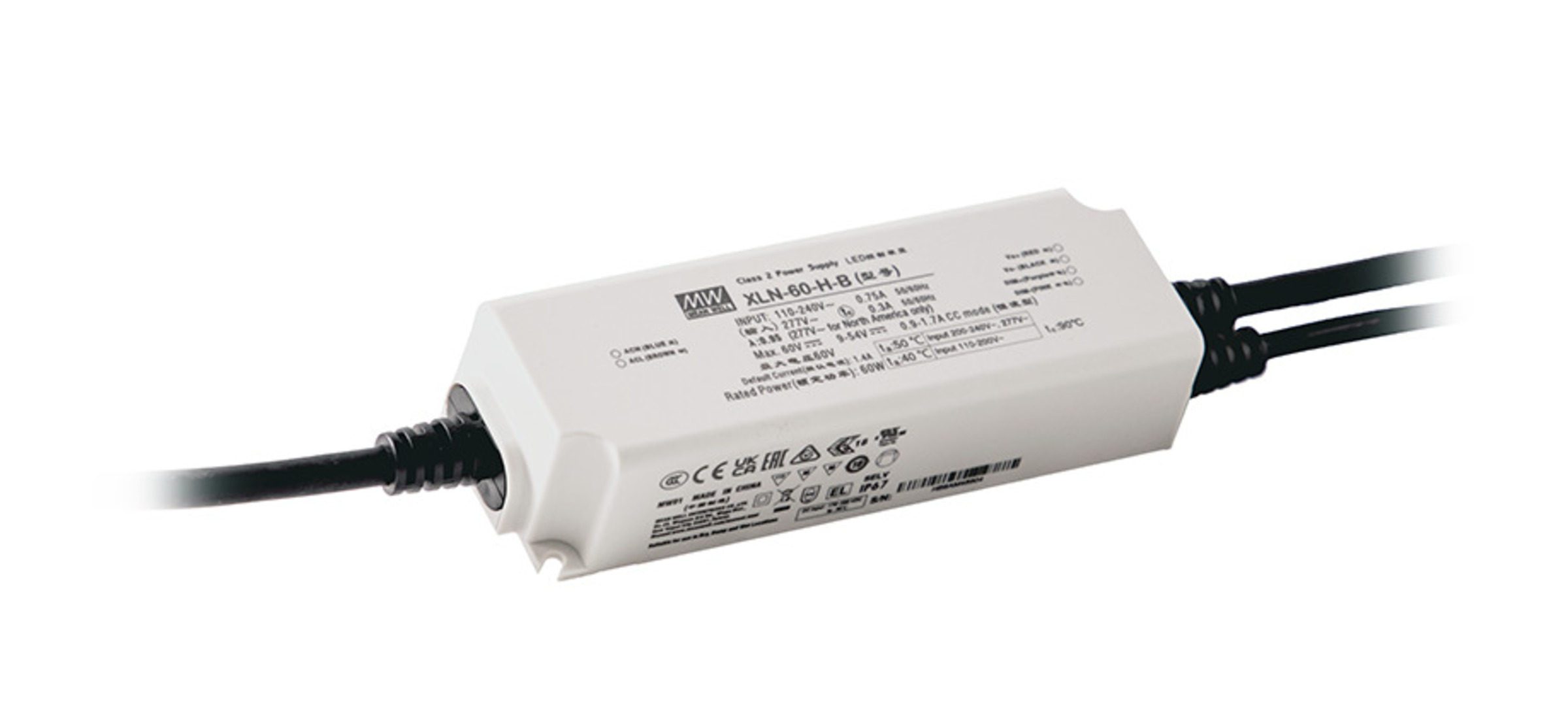

XLN-60 Series is a 60W with constant power and constant voltage output LED driver . It can operate from 110-305V AC and output current ranging between 900 mA to 1700 mA selectable by NFC setting. Thanks to high efficiency up to 90%, it is able to operate for -25°C-90°C case temperature under free air convection. XLN-60 is designed based on latest safety regulation with 3 in 1 and DALI-2 dimming. XLN-60 can be adjusted for brightness with a push button as a simple way dimming, so it provides the flexibility for LED Lighting.
Features
DC compatible
Emergency Lighting Unit
Flicker Free
Independent Control Gear
Output Current Selectable
Application note
Power supply for the operation of LED light sources.
Old electronic devices are recyclable materials and should not be disposed of with household waste.
If the device has reached the end of its service life, dispose of it in accordance with the applicable legal regulations at the collection points of the waste disposal system.
Disposal with household waste is prohibited.
