XLG-50-L-DA2

MEAN WELL AC/DC LED power supply unit CP 50W IP67 Dali-2

XLG-50-L-DA2XLG-50-L-DA2XLG-50-L-DA2
Manufacturer Part No.
XLG-50-L-DA2
Schukat Part No.
XLG-50-L-DA2
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

4 Pcs. in stock

Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 24 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable surge protection devices.
Here you will find suitable inrush current limiters.
Here you will find suitable EMC & noise suppression components.
Operating mode
CP
Output Power
50 W
Output Current Min.
0.350 A
Output Current Max.
0.700 A
Output Voltage Min.
60 V
Output Voltage Max.
142 V
Protection Class IP
IP67
Interfaces
Dali-2
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • XLG-50-DA2
Product group
  • L4434
Application
  • Lighting
Operating mode
  • CP
Package/Case
  • Enclosed Metal

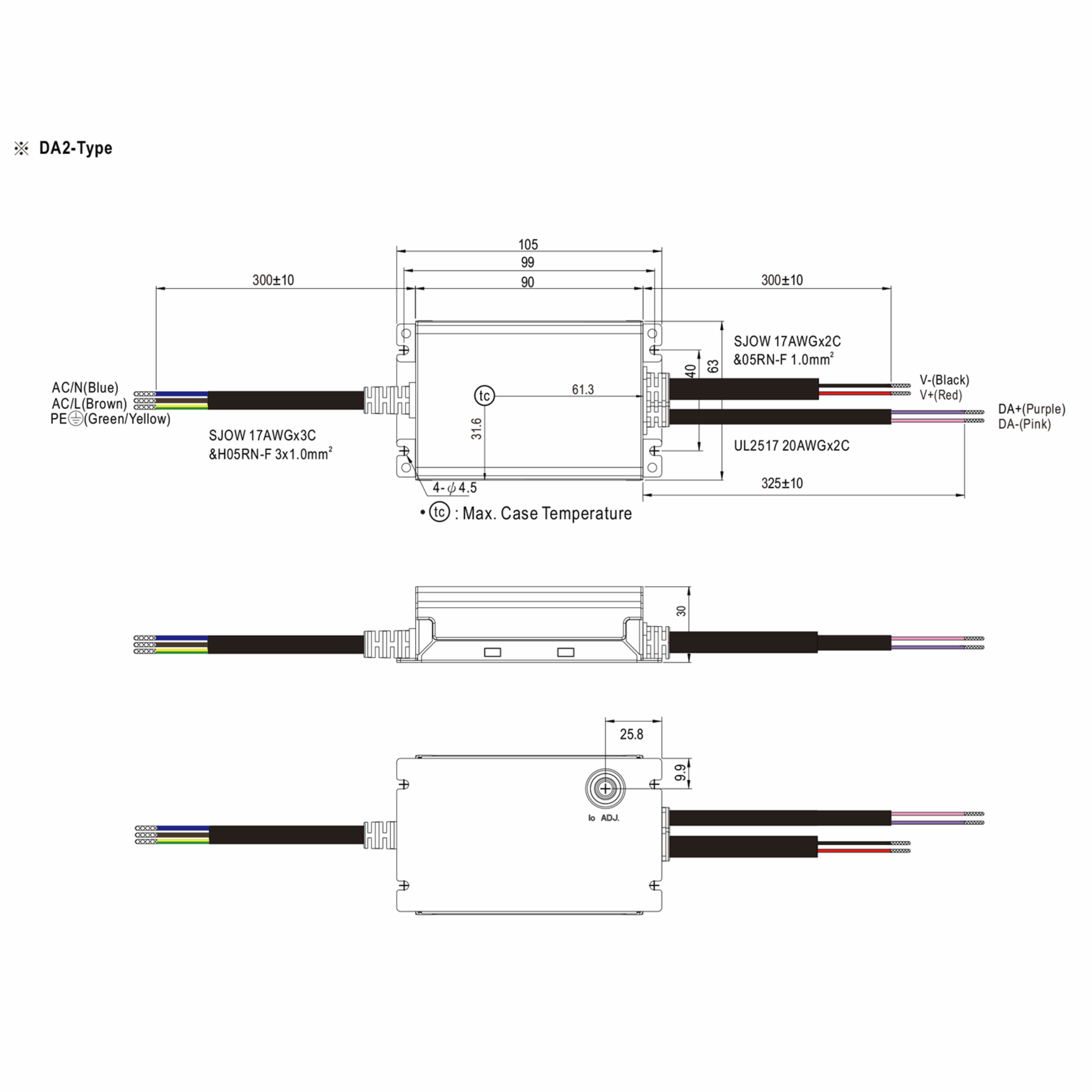

Dimension: Length
  • 105 mm
Dimension: Width
  • 63 mm
Dimension: Height
  • 30 mm
Weight
  • 420 g
Label
  • MM-Zeichen
Dimmable
Interfaces
  • Dali-2
Manufacturer's warranty (years)
  • 5
Product description
  • XLG-50-DA2 series is a 50W AC/DC LED driver featuring the constant power mode output. XLG-50-DA2 operates from 90-305VAC. Thanks to the high efficiency up to 89%, the entire serias is able to operate between -40°C - 85°C wide case temperature range with air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. XLG-50-DA2 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system. XLG-50-DA2 series comply with the latest version of IEC61347/GB19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety ofboth user and luminaire system during installation.
Features
  • Adjustable output current
  • DC compatible
  • Emergency Lighting Unit
  • Independent Control Gear
Application note
  • Power supply for the operation of LED light sources. Used electronic devices are recyclable materials and do not belong in household waste. If the device is at the end of its service life, dispose of it in accordance with the applicable legal regulations at the collection points of the disposal system. Disposal via the household waste is prohibited.
Notice

Operating conditions

MTBF
  • 207,300 h
Operating expectation
  • 50,000 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 80 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 305 V
Input voltage min. DC
  • 127 V
Input voltage max. DC
  • 431 V
Input current
  • 0.29 A
Efficiency
  • 90 %
No load power, less than
  • 0.5 W
Power consumption in networked standby mode (Pnet), less than
  • 0.5 W
Leakage current, max.
  • 0.75 mA
Inrush current, max.
  • 50 A
Max. number on B16 circuit breaker
  • 7
Max. number on C16 circuit breaker
  • 12
Power factor correction (PFC)
Power factor
  • 0.95
Connection type, input
  • Strand
Cable length, input
  • 30 cm

Output

Number of outputs
  • 1
Output Power
  • 50 W
Output Voltage Min.
  • 60 V
Output Voltage Max.
  • 142 V
Output Current Min.
  • 0.350 A
Output Current Max.
  • 0.700 A
Output current tolerance
  • -5.5 %
Current ripple
  • 5 %
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Strand
Cable length, output
  • 30 cm

Safety/Certifications

Protection class
  • I
Protection Class IP
  • IP67
Isolation voltage I/P-O/P
  • 3,750 V
Isolation voltage I/P-FG
  • 2,000 V
Isolation voltage O/P-FG
  • 1,500 V
Approvals
  • AS/NZ
  • CCC
  • CE
  • CSA
  • EAC
  • EN
  • ENEC
  • IEC
  • UKCA
  • UL
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13
  • IEC 61347-1
  • IEC 61347-2-13
  • UL 8750

Documents

LED_GE.pdf
Download (pdf, 1.172 KB)
MEAN_WELL_Katalog_Industrie_2026.pdf
Download (pdf, 48.955 KB)
MEAN_WELL_Katalog_LED.pdf
Download (pdf, 53.159 KB)
