8 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Operating mode
CP
Output Power
50 W
Output Current Min.
0.900 A
Output Current Max.
1.400 A
Output Voltage Min.
27 V
Output Voltage Max.
56 V
Protection Class IP
IP67
Interfaces
Dali-2
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
XLG-50-DA2
Product group
L4434
Application
Lighting
Operating mode
CP
Package/Case
Enclosed Metal

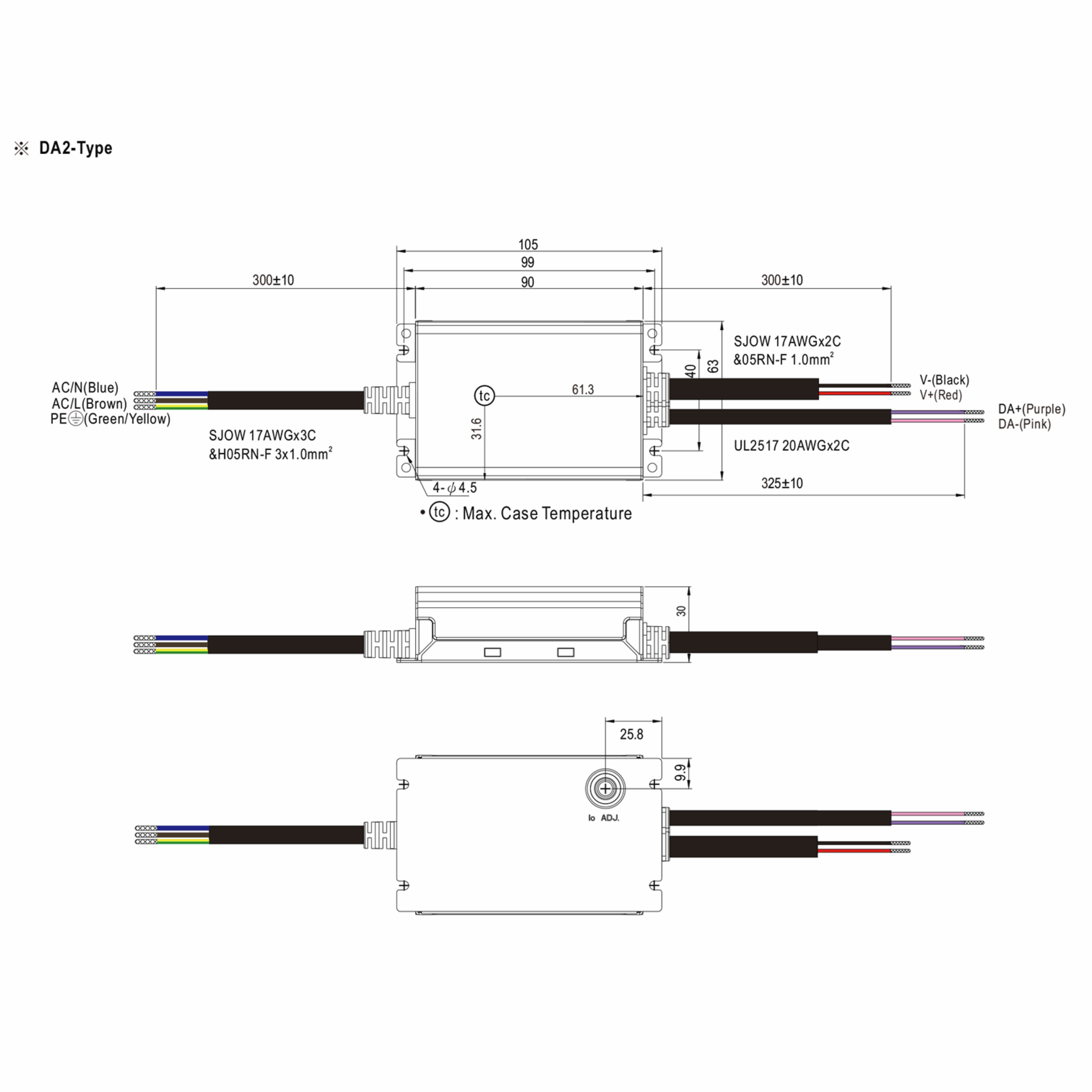

Dimension: Length
105 mm
Dimension: Width
63 mm
Dimension: Height
30 mm
Weight
420 g
Label
MM-Zeichen; SELV
Dimmable
Interfaces
Dali-2
Manufacturer's warranty (years)
5
Product description

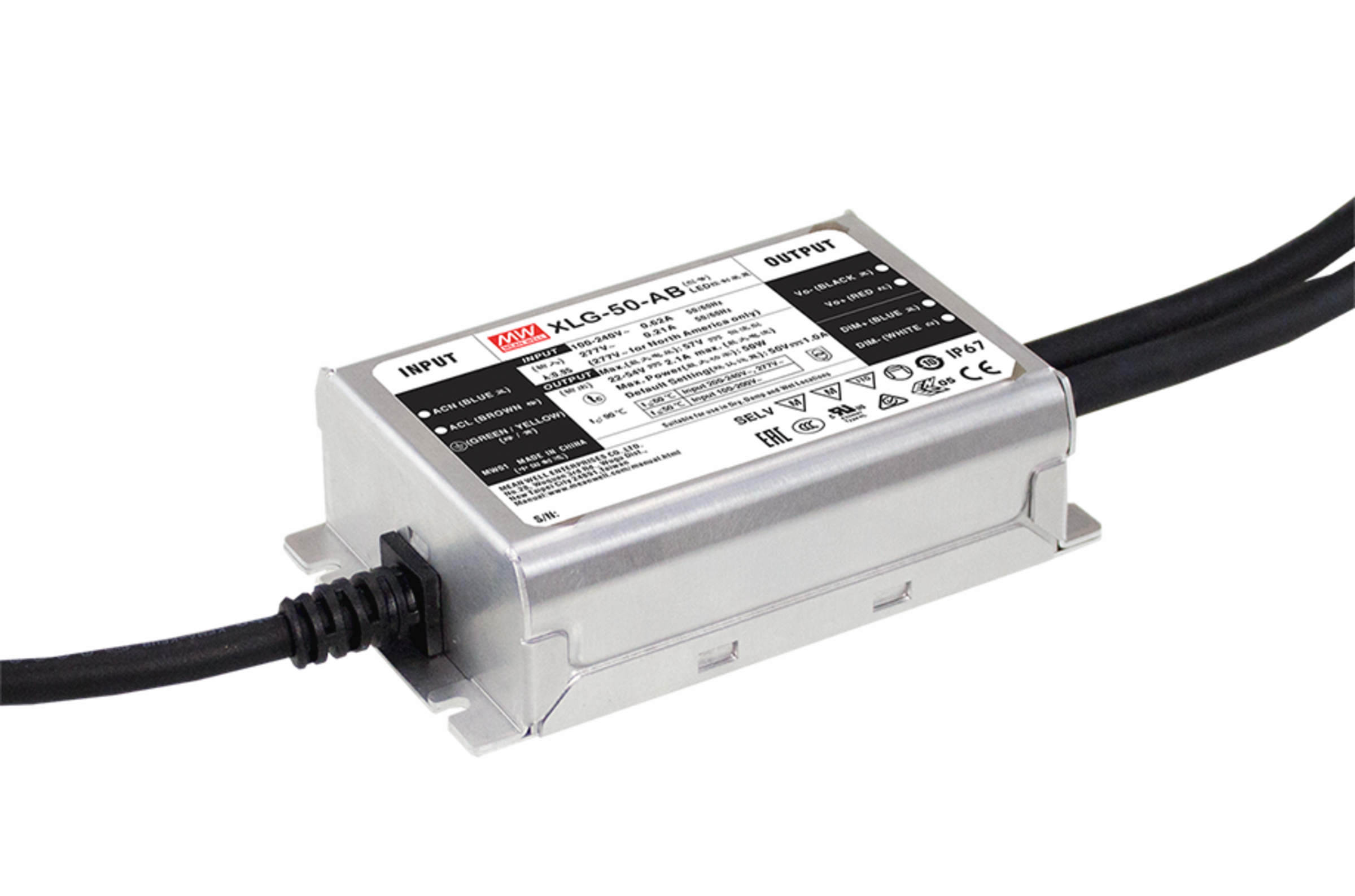

XLG-50-DA2 series is a 50W AC/DC LED driver featuring the constant power mode output. XLG-50-DA2 operates from 90-305VAC. Thanks to the high efficiency up to 89%, the entire serias is able to operate between -40°C - 85°C wide case temperature range with air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. XLG-50-DA2 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system. XLG-50-DA2 series comply with the latest version of IEC61347/GB19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety ofboth user and luminaire system during installation.
Features
Adjustable Output Current
DC compatible
Emergency Lighting Unit
Independent Control Gear
Application note
Power supply for the operation of LED light sources.
Used electronic devices are recyclable materials and do not belong in household waste. If the device is at the end of its service life, dispose of it in accordance with the applicable legal regulations at the collection points of the disposal system. Disposal via the household waste is prohibited.
Operating conditions
MTBF
207,300 h
Operating expectation
50,000 h
Operating Temperature Min.
-40 °C
Operating Temperature Max.
85 °C
Storage Temperature Min.
-40 °C
Storage Temperature Max.
80 °C
Input
Mains frequency min.
47 Hz
Mains frequency max.
63 Hz
Input voltage min. AC
90 V
Input voltage max. AC
305 V
Input voltage min. DC
127 V
Input voltage max. DC
431 V
Input current
0.29 A
Efficiency
89 %
No load power, less than
0.5 W
Power consumption in networked standby mode (Pnet), less than
