0 Pcs. in stock
Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 500 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Operating mode
CP
Output Current Min.
1.050 A
Output Current Max.
1.400 A
Output Voltage Min.
150 V
Output Voltage Max.
300 V
Protection Class IP
IP67
Interfaces
Dali-2
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
XLG-320-DA2
Product group
L4283
Application
Lighting
Operating mode
CP
Package/Case
Enclosed Metal

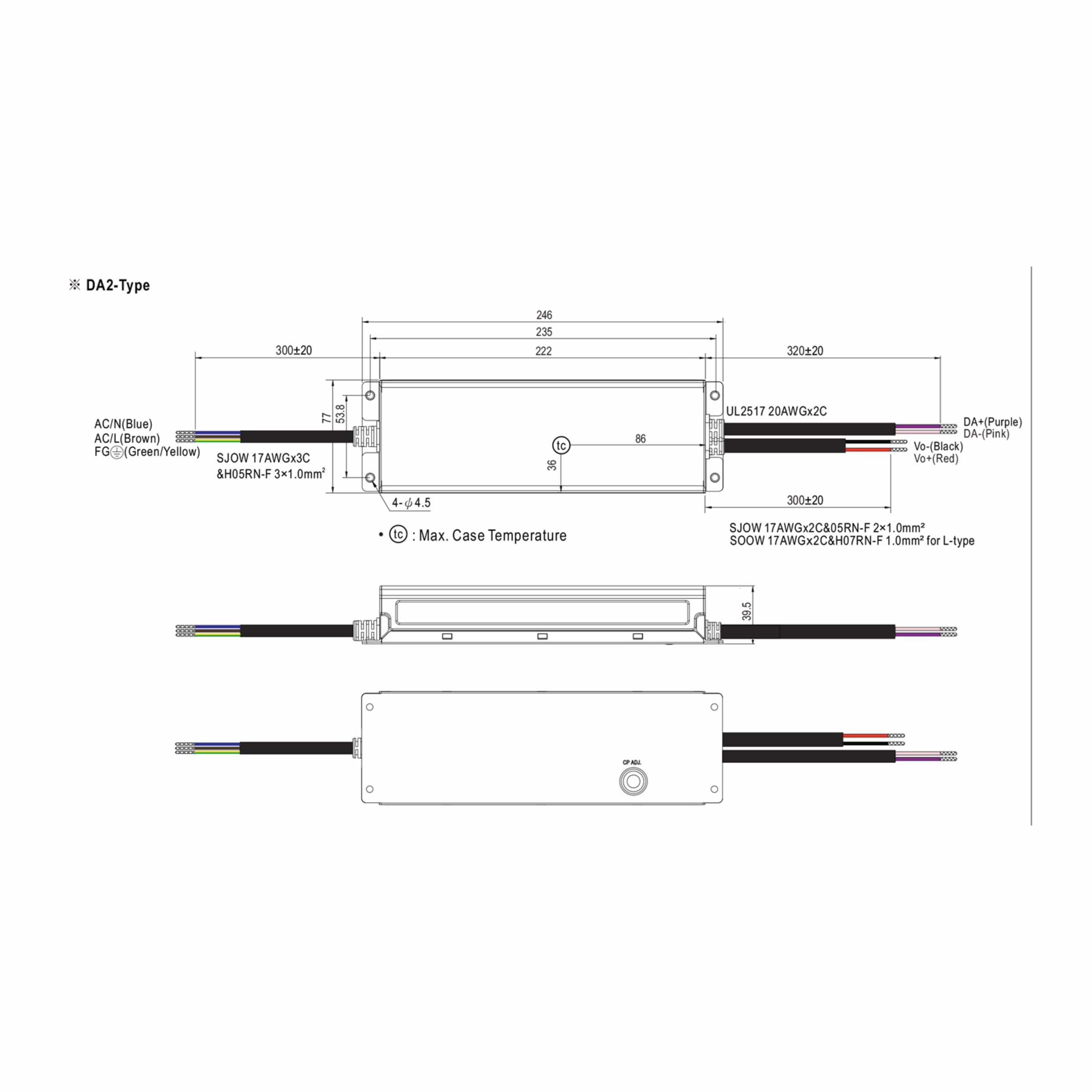

Dimension: Length
246 mm
Dimension: Width
77 mm
Dimension: Height
39.5 mm
Weight
1,450 g
Label
MM-Zeichen; SELV
Dimmable
Interfaces
Dali-2
Manufacturer's warranty (years)
5
Product description

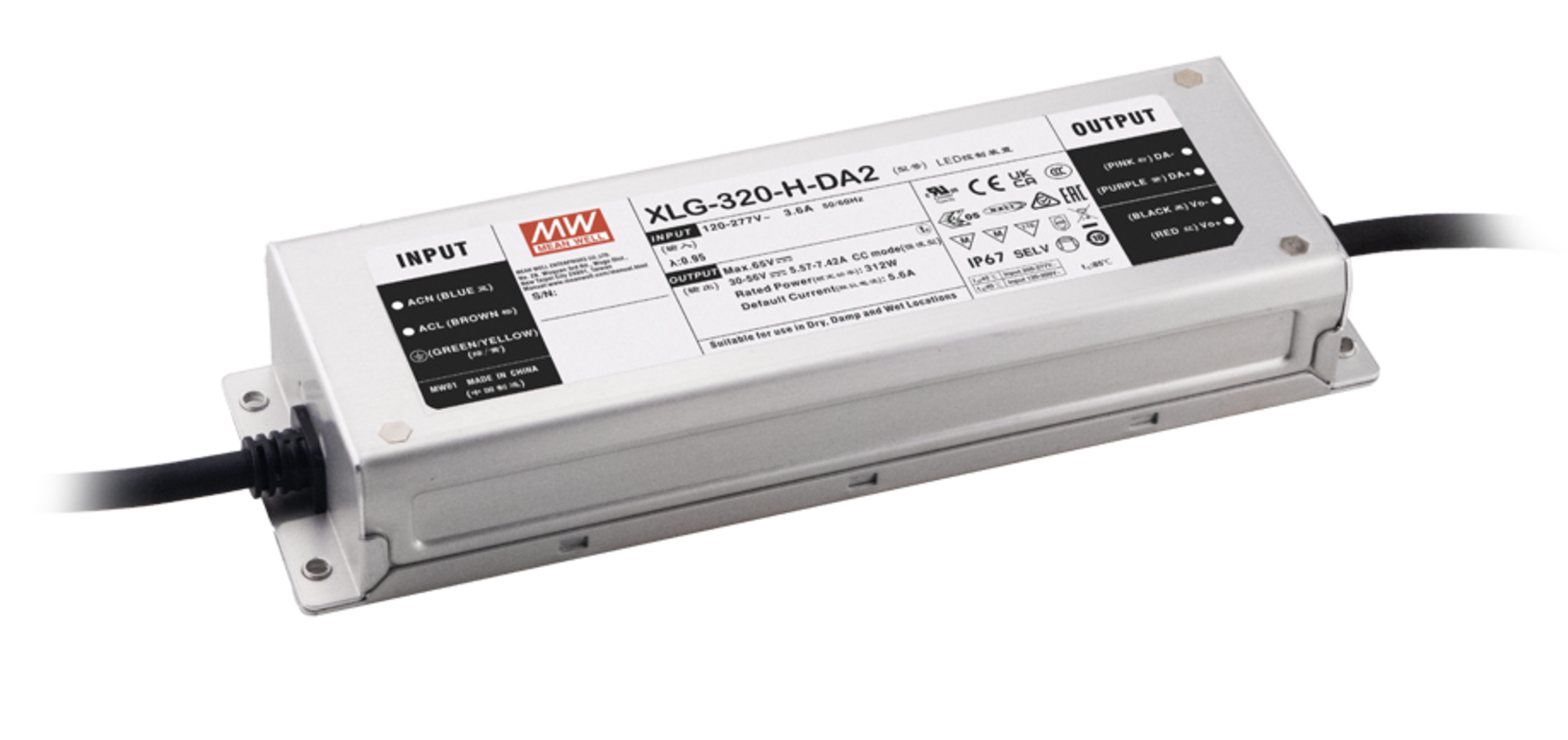

XLG-320-DA2 series is a 320W LED AC/DC driver featuring the constant power mode with DALI-2 dimming function. XLG-320-DA2 operates from 100-305VAC and offers models with different rated current ranging between 1050mA and 7420mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40°C - 85°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-320-DA2 series comply with the latest version of IEC61347/GB19510.1 and UL8750 international safety requlations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Features
AUX Power Supply
Adjustable Output Current
DC compatible
Emergency Lighting Unit
Independent Control Gear
Application note
Power supply for the operation of LED light sources.
Used electronic devices are recyclable materials and do not belong in household waste. If the device is at the end of its service life, dispose of it in accordance with the applicable legal regulations at the collection points of the disposal system. Disposal via the household waste is prohibited.
Operating conditions
MTBF
145,100 h
Operating expectation
50,000 h
Operating Temperature Min.
-40 °C
Operating Temperature Max.
85 °C
Storage Temperature Min.
-40 °C
Storage Temperature Max.
80 °C
Input
Mains frequency min.
47 Hz
Mains frequency max.
63 Hz
Input voltage min. AC
100 V
Input voltage max. AC
305 V
Input voltage min. DC
142 V
Input voltage max. DC
431 V
Input current
1.6 A
Efficiency
94.5 %
No load power, less than
0.5 W
Power consumption in networked standby mode (Pnet), less than
