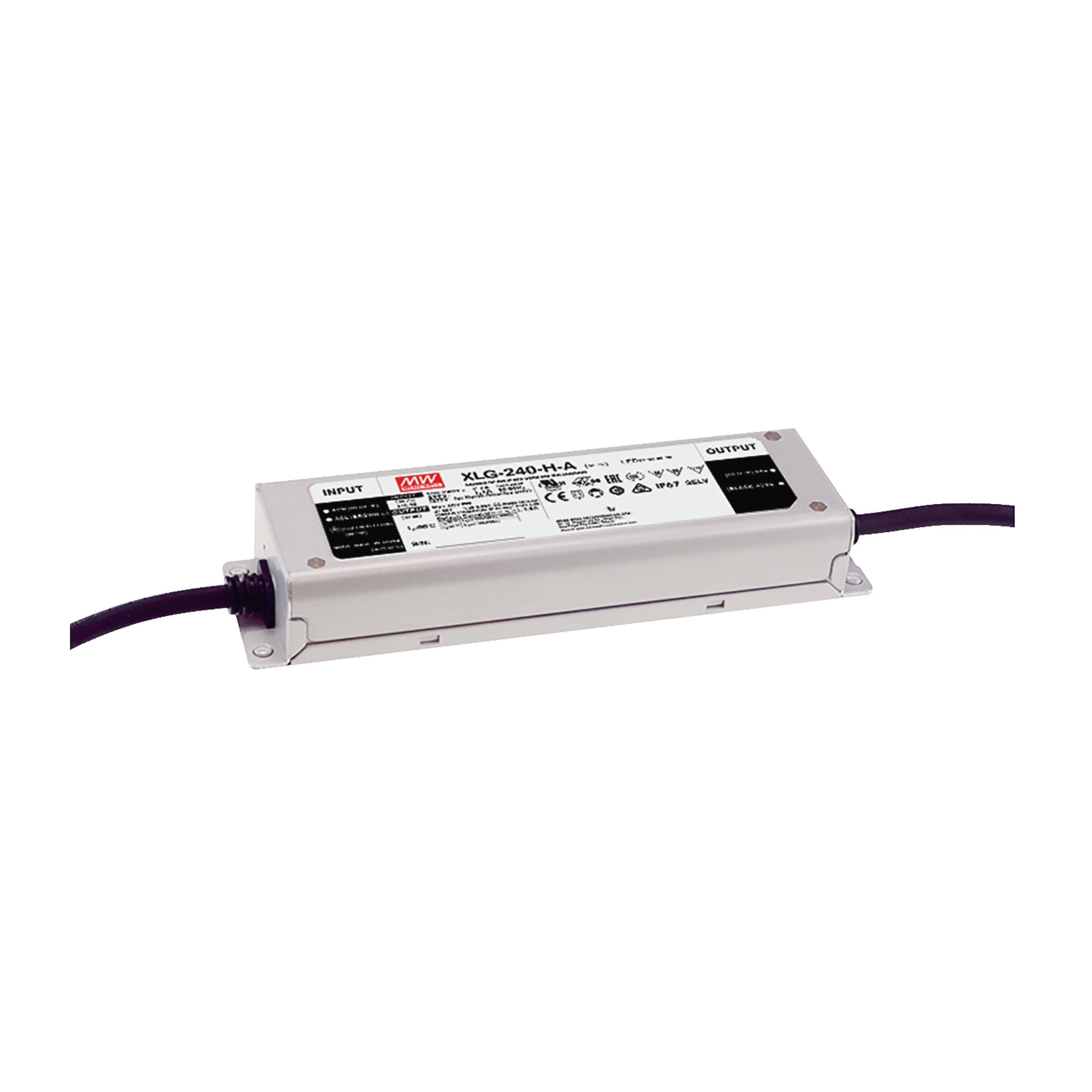

XLG-240-L-AB

MEAN WELL AC/DC LED power supply unit CP 239,4W IP67 0-10 Volt PWM Resistiv

XLG-240-L-ABXLG-240-L-ABXLG-240-L-ABXLG-240-L-AB
Manufacturer Part No.
XLG-240-L-AB
Schukat Part No.
XLG-240-L-AB
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

33 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 16 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable surge protection devices.
Here you will find suitable inrush current limiters.
Here you will find suitable EMC & noise suppression components.
Operating mode
CP
Output Power
239.4 W
Output Current Min.
0.700 A
Output Current Max.
1.050 A
Output Voltage Min.
178 V
Output Voltage Max.
342 V
Protection Class IP
IP67
Interfaces
0-10 Volt
PWM
Resistiv
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • XLG-240
Product group
  • L4183
Application
  • Lighting
Operating mode
  • CP
Package/Case
  • Enclosed Metal

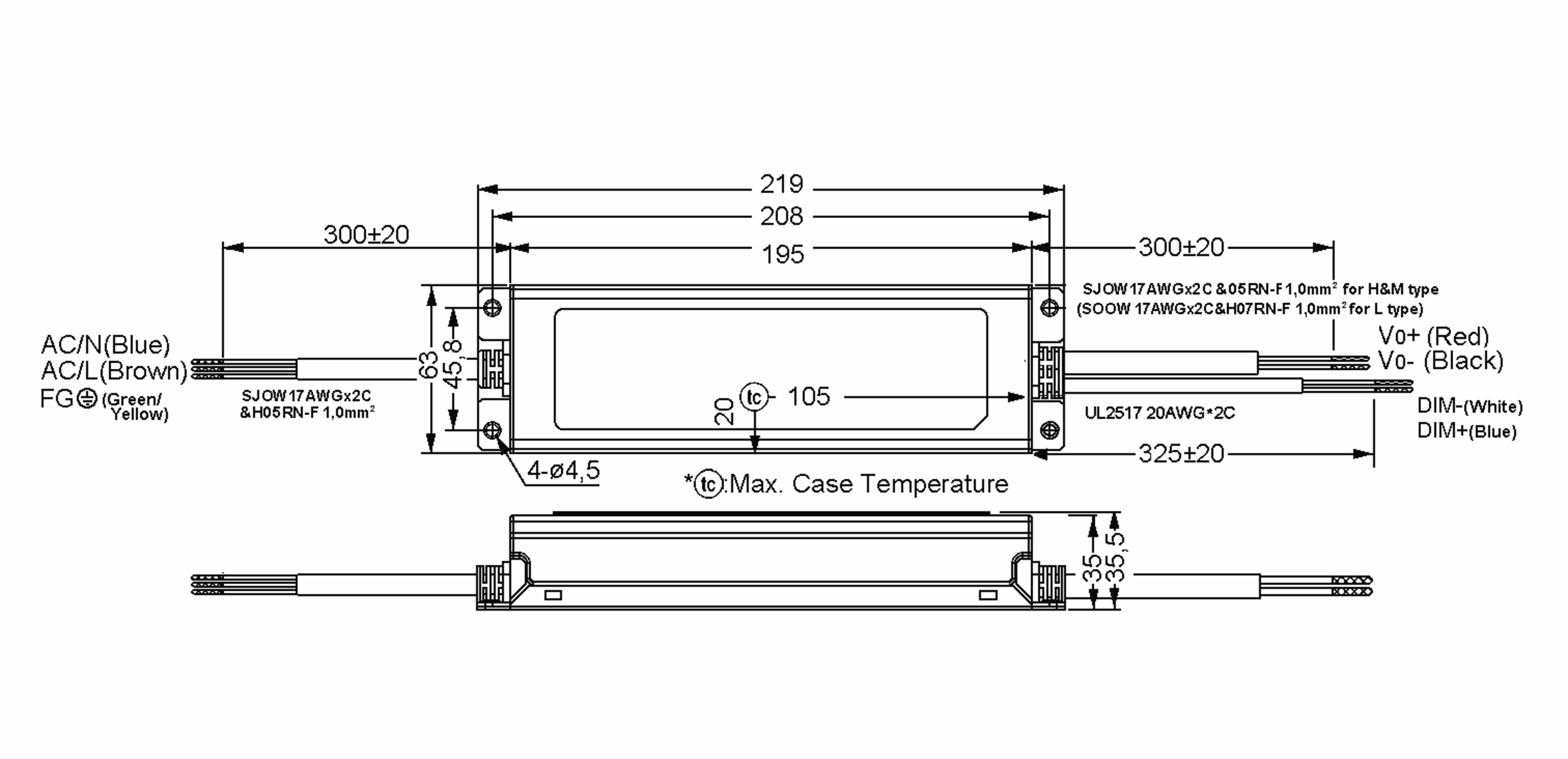

Dimension: Length
  • 219 mm
Dimension: Width
  • 63 mm
Dimension: Height
  • 35.5 mm
Weight
  • 1,000 g
Label
  • MM-Zeichen
Dimmable
Interfaces
  • 0-10 Volt
  • PWM
  • Resistiv
Manufacturer's warranty (years)
  • 5
Product description
  • The XLG-240 series offers 240W AC/DC LED power supplies with constant output power and operates with an input voltage of 100–305VAC. Thanks to its high efficiency of up to 93%, the entire series can be operated within a housing temperature range of -40°C to 90°C using air convection. The design of the metal housing and the IP67 protection rating enable this series to be used in both indoor and outdoor environments. The XLG-240 is equipped with various functional options, such as dimming methods, to provide optimum design flexibility for LED lighting systems.
Features
  • Adjustable output current
  • DC compatible
  • Independent Control Gear
Application note
  • Power supply for operating LED light sources. These products are not designed for operation in idle mode. End-of-life electronic equipment is recyclable and must not be disposed of with household waste. If the device has reached the end of its service life, please dispose of it in accordance with the applicable legal requirements at the collection points of the waste disposal scheme. Disposal via household waste is prohibited.
Notice

Operating conditions

MTBF
  • 219,750 h
Operating expectation
  • 50,000 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 90 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 80 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 100 V
Input voltage max. AC
  • 305 V
Input voltage min. DC
  • 142 V
Input voltage max. DC
  • 431 V
Input current
  • 1.3 A
Efficiency
  • 93 %
No load power, less than
  • 0.5 W
Power consumption in standby mode (PSB), less than
  • 0.5 W
Leakage current, max.
  • 0.75 mA
Inrush current, max.
  • 85 A
Max. number on B16 circuit breaker
  • 2
Max. number on C16 circuit breaker
  • 4
Power factor correction (PFC)
Power factor
  • 0.95
Connection type, input
  • Strand
Cable length, input
  • 30 cm

Output

Number of outputs
  • 1
Output Power
  • 239.4 W
Output Voltage Min.
  • 178 V
Output Voltage Max.
  • 342 V
Output Current Min.
  • 0.700 A
Output Current Max.
  • 1.050 A
Output current tolerance
  • -4.4 %
Current ripple
  • 5 %
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Strand
Cable length, output
  • 30 cm

Safety/Certifications

Protection class
  • I
Protection Class IP
  • IP67
Isolation voltage I/P-O/P
  • 3,750 V
Isolation voltage I/P-FG
  • 2,000 V
Isolation voltage O/P-FG
  • 1,500 V
Approvals
  • CCC
  • CE
  • CSA
  • EAC
  • EN
  • ENEC
  • IEC
  • KC
  • PSE
  • UKCA
  • UL
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13
  • IEC 61347-1
  • IEC 61347-2-13
  • UL 8750

Documents

LED_GE.pdf
Download (pdf, 1.172 KB)
MEAN_WELL_Katalog_Industrie_2026.pdf
Download (pdf, 48.955 KB)
MEAN_WELL_Katalog_LED.pdf
Download (pdf, 53.159 KB)
