46 Pcs. in stock
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Operating mode
CP
Output Power
60 W
Output Current Min.
0.900 A
Output Current Max.
1.700 A
Output Voltage Min.
9 V
Output Voltage Max.
54 V
Interfaces
not dimmable
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
XLC-60
Product group
L4591
Application
Lighting
Operating mode
CP
Package/Case
Enclosed Plastic
Dimension: Length
136 mm
Dimension: Width
45 mm
Dimension: Height
32 mm
Weight
390 g
Label
MM-Zeichen; SELV
Dimmable
Interfaces
not dimmable
Manufacturer's warranty (years)
5
Product description

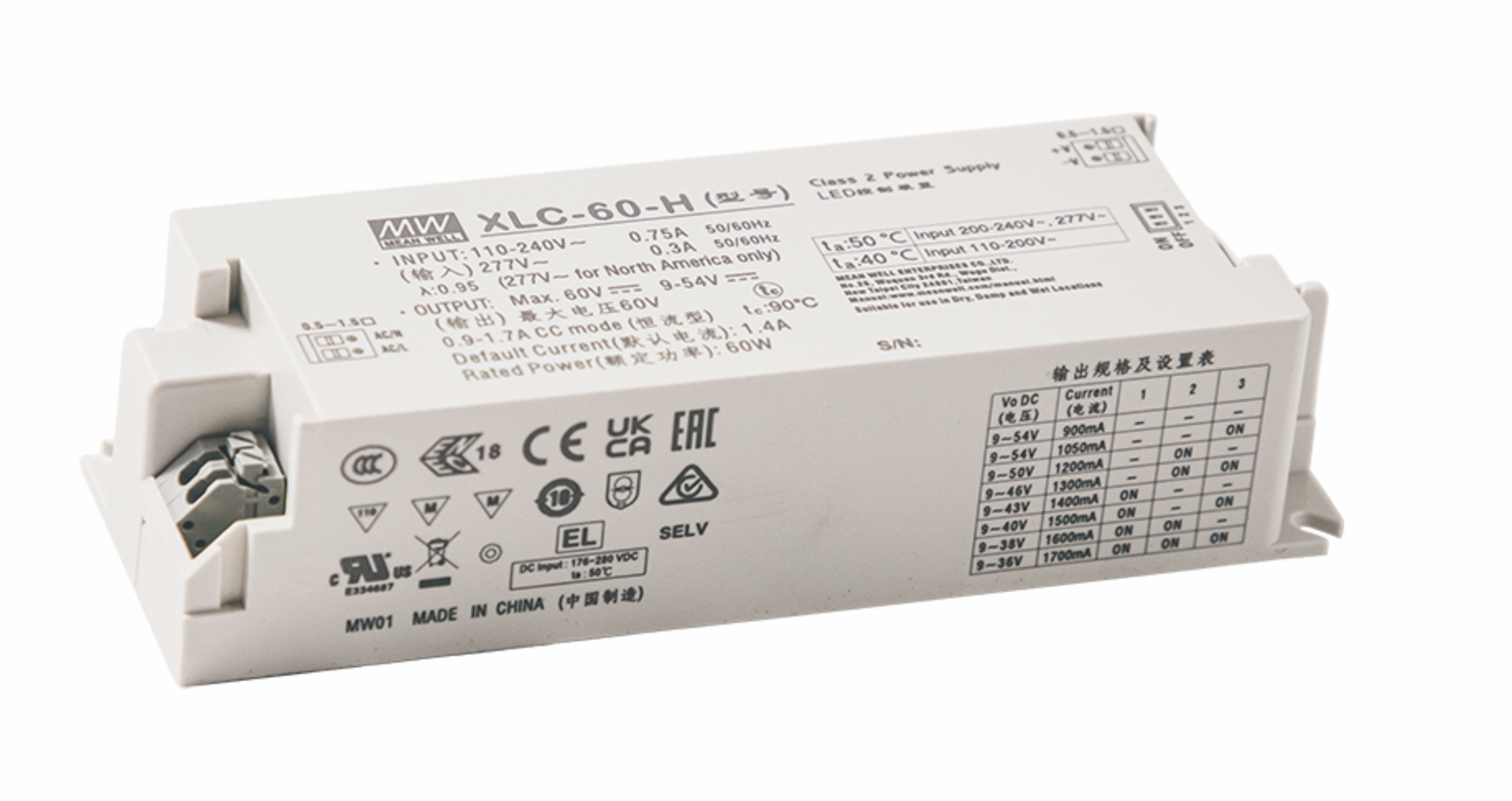

The XLC-60 series is a 60 W LED driver with constant power or constant output voltage (12, 24, 48 volts) that can be operated with 110-305 V AC and whose output current can be selected between 900 mA and 1700 mA via dip switch or NFC setting. Thanks to its high efficiency of up to 90%, it can be operated at a housing temperature of -25°C to 90°C under free air convection. XLC-60 has been developed according to the latest safety regulations with 3 in 1 and DALI-2 dimming. XLC-60 can also be dimmed by PUSH dimming with a push button in a simple way, so it offers any design flexibility for LED lighting applications.
Features
DC compatible
Emergency Lighting Unit
Flicker Free
Output Current Selectable
Application note
Power supply for the operation of LED light sources.
Old electronic devices are recyclable materials and should not be disposed of with household waste.
If the device has reached the end of its service life, dispose of it in accordance with the applicable legal regulations at the collection points of the waste disposal system.
Disposal with household waste is prohibited.
