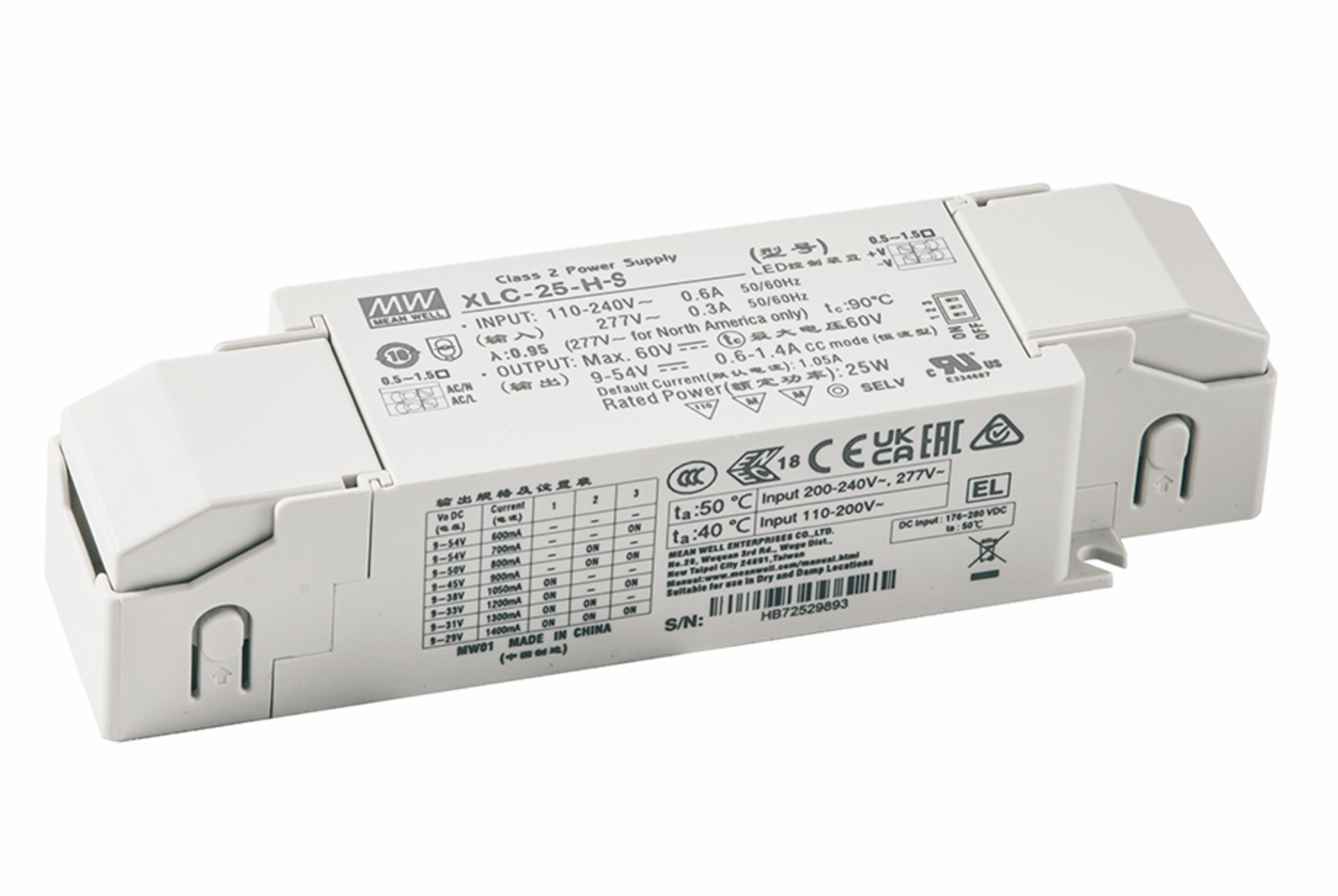

XLC-25-H-DA2S
AC/DC LED power supply unit CV
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Pcs. in stock
Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Lieferbar (ab Lager)
Data Sheet
ECAD Model
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Operating mode
- CP
- RoHS-Conform
Specifications
Open all
Input
- Mains frequency max.
- 63 Hz
- Efficiency
- 88 %
- Power consumption in networked standby mode (Pnet), less than
- 0.5 W
Output
- Selectable output current
- Selectable output currents (A)
- 0,3; 0,35; 0,4; 0,5; 0,6; 0,7; 0,9: 1,5
- Current ripple
- 4 %
- Overtemperature protection
Safety/Certifications
- Protection class
- II
- Approvals
- CE
- EN
- IEC
- EAC
- UKCA
- CCC
- ENEC
- RCM
- Standards (safety)
- EN 61347-2-13
- IEC 61347-1
- IEC 61347-2-13
- EN 61347-1
Documents
LED_GE.pdf
