16 Pcs. in stock
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Operating mode
CP
Output Power
25 W
Output Current Min.
0.300 A
Output Current Max.
1.050 A
Output Voltage Min.
9 V
Output Voltage Max.
54 V
Interfaces
Dali-2 Push Dimming
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
XLC-25
Product group
L4542
Application
Lighting
Operating mode
CP
Package/Case
Enclosed Plastic
Dimension: Length
147 mm
Dimension: Width
40 mm
Dimension: Height
32 mm
Weight
180 g
Label
MM-Zeichen; SELV
Dimmable
Interfaces
Dali-2
Push Dimming
Manufacturer's warranty (years)
5
Product description

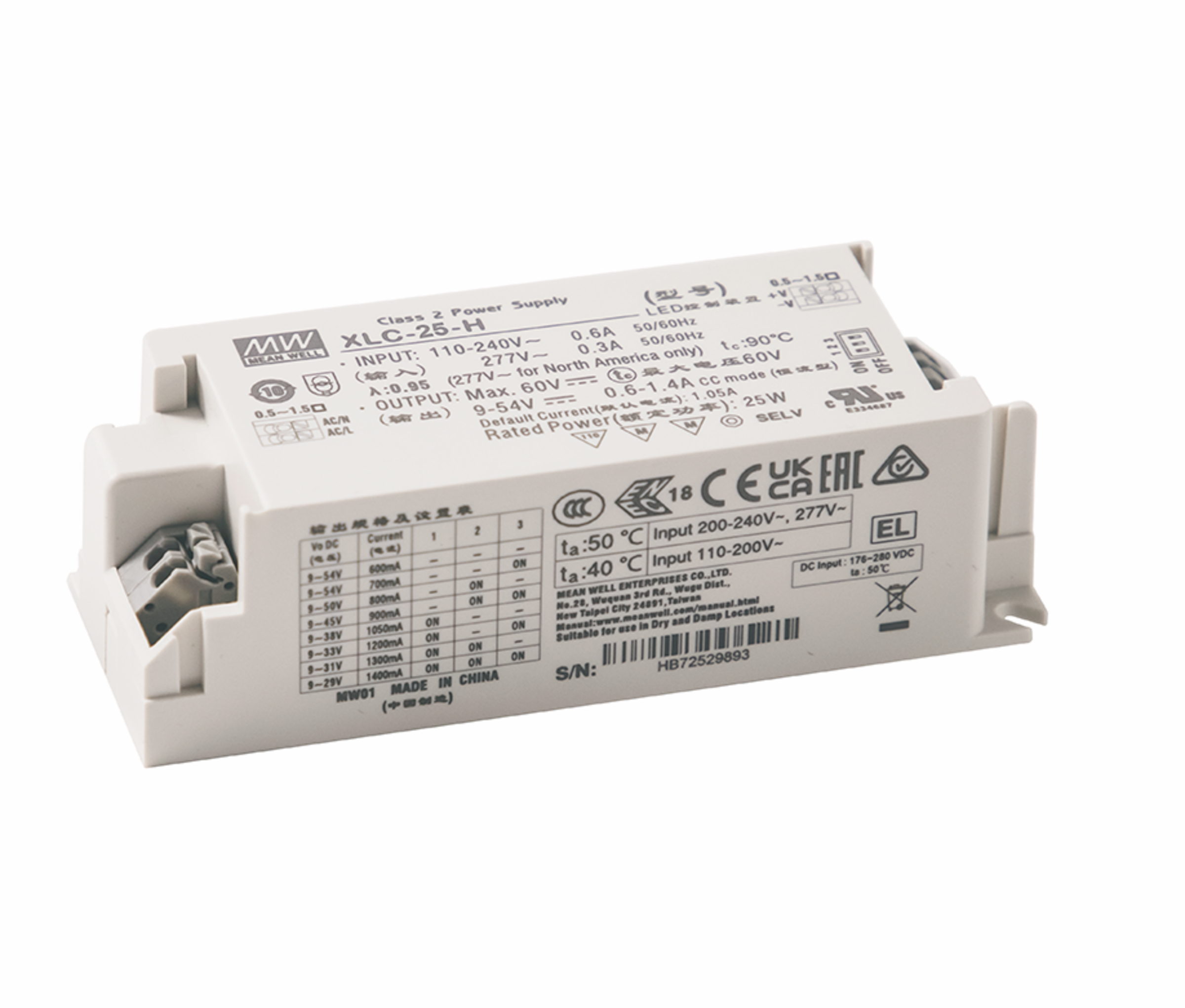

The XLC-25 series is a 25W LED driver with constant power or constant output voltage (12 and 24 volts), which can be operated with 110-305V AC and whose output current is selectable between 300 mA and 1050 mA by NFC setting. Thanks to its high efficiency of up to 88%, it can be operated at a housing temperature of -25°C to -90°C under free air convection. XLC-25 has been developed on the basis of the latest safety regulations with 3-in-1 and DALI-2 dimming. XLC-25 can also be dimmed by PUSH dimming with a push button in a simple way, offering full design flexibility for LED lighting applications
Features
DC compatible
Emergency Lighting Unit
Flicker Free
NFC-Function
Programmable Output Current
Application note
Power supply for the operation of LED light sources.
Old electronic devices are recyclable materials and should not be disposed of with household waste.
If the device has reached the end of its service life, dispose of it in accordance with the applicable legal regulations at the collection points of the waste disposal system.
Disposal with household waste is prohibited.
Operating conditions
Operating Temperature Min.
-25 °C
Operating Temperature Max.
90 °C
Storage Temperature Min.
-40 °C
Storage Temperature Max.
80 °C
Input
Mains frequency min.
47 Hz
Mains frequency max.
63 Hz
Input voltage min. AC
100 V
Input voltage max. AC
305 V
Input voltage min. DC
141 V
Input voltage max. DC
431 V
Input current
0.15 A
Efficiency
88 %
No load power, less than
0.5 W
Power consumption in networked standby mode (Pnet), less than
