0 Pcs. in stock
Planned delivery time
Ø 30 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Package/Case
DIN Rail
Output Power
960 W
Output voltage
24 V
Output current
40.000 A
Efficiency
95 %
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
XDR-960
Product group
L3237
Application
ITE
Industry
MSR/Laboratory
Package/Case
DIN Rail
Dimension: Width
96 mm
Dimension: Height
125.2 mm
Dimension: Depth
132 mm
Weight
2,060 g
Interfaces
MOD-Bus
Manufacturer's warranty (years)
5
Product description

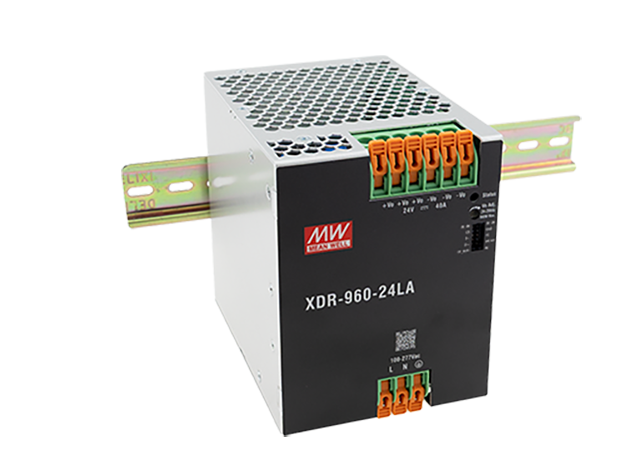

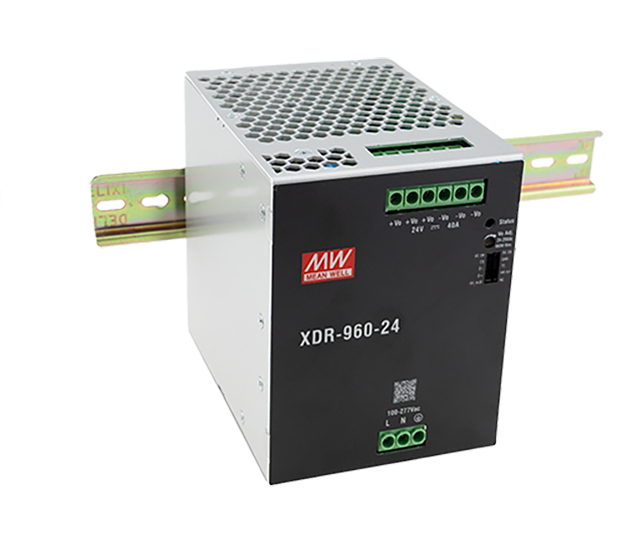

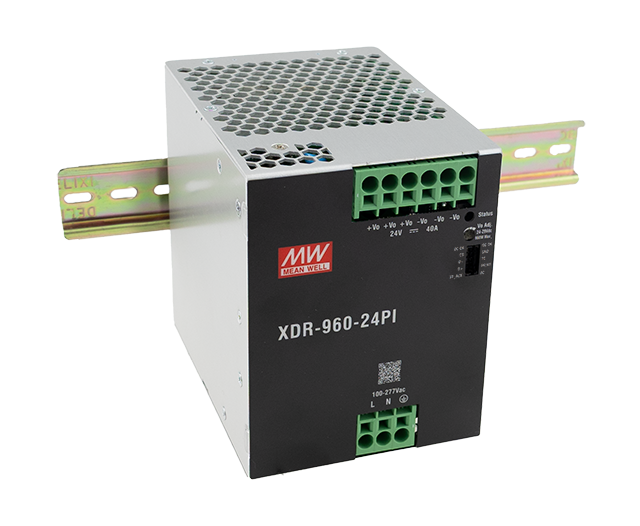

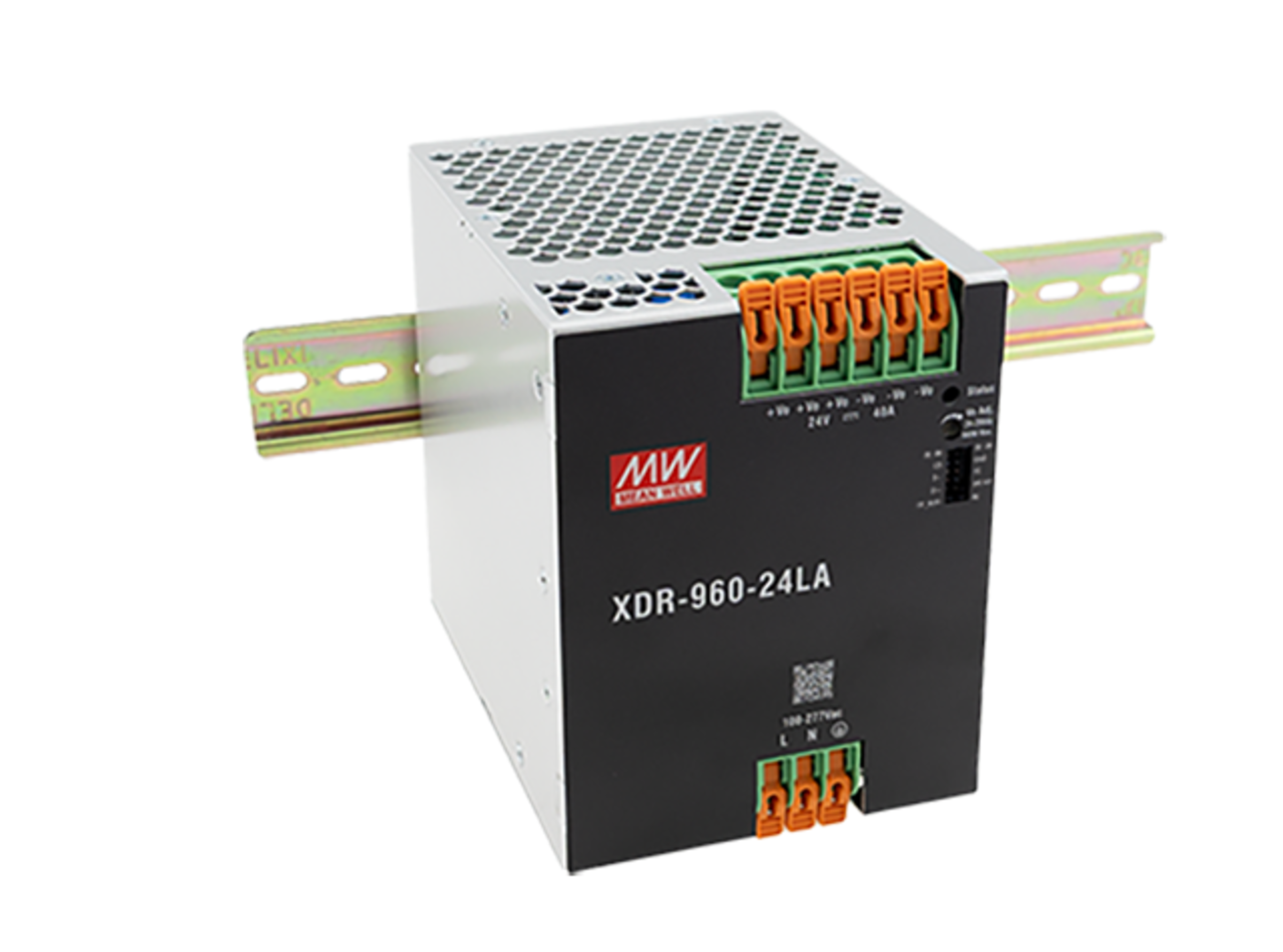

The XDR-960 series is a 960 W AC/DC high-performance industrial DIN rail power supply. Key features of this
series include a narrow 96 mm housing that optimizes space requirements for system installation and an ultra-wide input range of
85–305 VAC, which is suitable for worldwide use. It offers a maximum efficiency of 95.5% and low standby power consumption of <6 W for energy savings and CO2 reduction. It supports the MODBus communication interface ,
delivers a constant current with up to 200% peak power and can handle a momentary peak current
of 600%. It features a fanless design, an extremely wide operating temperature range of -40 to +85°C (up to +60°C
at full load), OVCIII compliance, a parallel connection function up to 3840 W, an extremely low inrush current of <10 A,
and DC OK and remote on/off functions. It also has an integrated OR-ing FET, the internal circuit board is coated with a
coating for basic protection against moisture and dust, and there are several connection blocks to choose from. With
comprehensive protection functions, complete safety certifications, and a 5-year warranty, the XDR-960 series is
a compact, powerful, and extremely reliable DIN rail power supply.
Features
Adjustable Output Voltage
DC compatible
DC-OK-Signal
Parallel Function
Peak Power
Programmable
Programmable Output Current
Programmable Output Voltage
Remote Function
Application note
Certification in accordance with EN 61010 will take place during the third quarter of 2026.
