Fact Sheet
Package/Case
DIN Rail
Output Power
480 W
Output voltage
24 V
Output current
20.000 A
Efficiency
95.5 %
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
XDR-480E
Product group
L3213
Application
ITE
Industry
MSR/Laboratory
Package/Case
DIN Rail
Dimension: Width
48 mm
Dimension: Height
125.2 mm
Dimension: Depth
125 mm
Weight
890 g
Label
TÜV
Manufacturer's warranty (years)
3
Product description

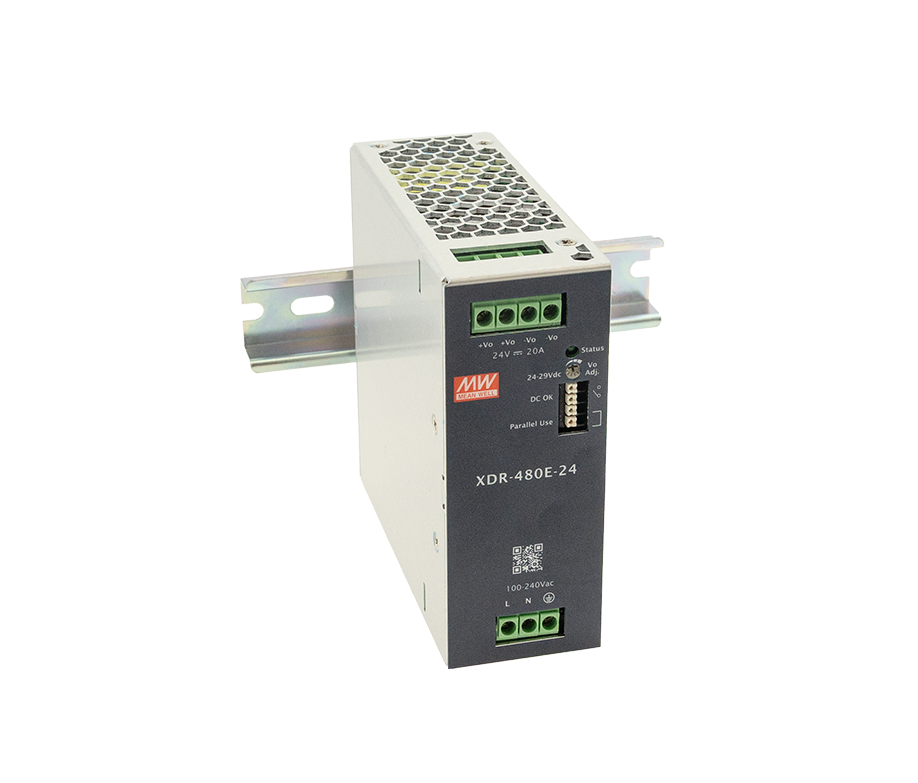

The XDR-480E series is an economical and ultra-slim industrial 480W AC/DC DIN rail power supply. The main features of this series include a slim 48mm housing, which saves installation space in the end system, and an ultra-wide input range of 85-264Vac, which is suitable for worldwide use. The maximum efficiency of 96% and the low standby power consumption of <1.2 W ensure energy savings and the reduction of carbon dioxide emissions. It features built-in constant current output, fanless design, wide operating temperature range from -40 to +70°C (up to +50°C at full load); OVOIlI compliance; parallel function capability up to 1920W; built-in DC OK signal. With comprehensive protection features, full safety certifications and a 3-year warranty, the XDR-480E series is a compact, powerful and highly reliable DIN rail power supply.
