0 Pcs. in stock
Planned delivery time
Ø 30 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Package/Case
DIN Rail
Output Power
480 W
Output voltage
24 V
Output current
20.000 A
Efficiency
95.5 %
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
XDR-480
Product group
L3212
Application
ITE
Industry
MSR/Laboratory
Package/Case
DIN Rail
Dimension: Width
48 mm
Dimension: Height
125.2 mm
Dimension: Depth
125 mm
Weight
1,100 g
Interfaces
MOD-Bus
Manufacturer's warranty (years)
5
Product description

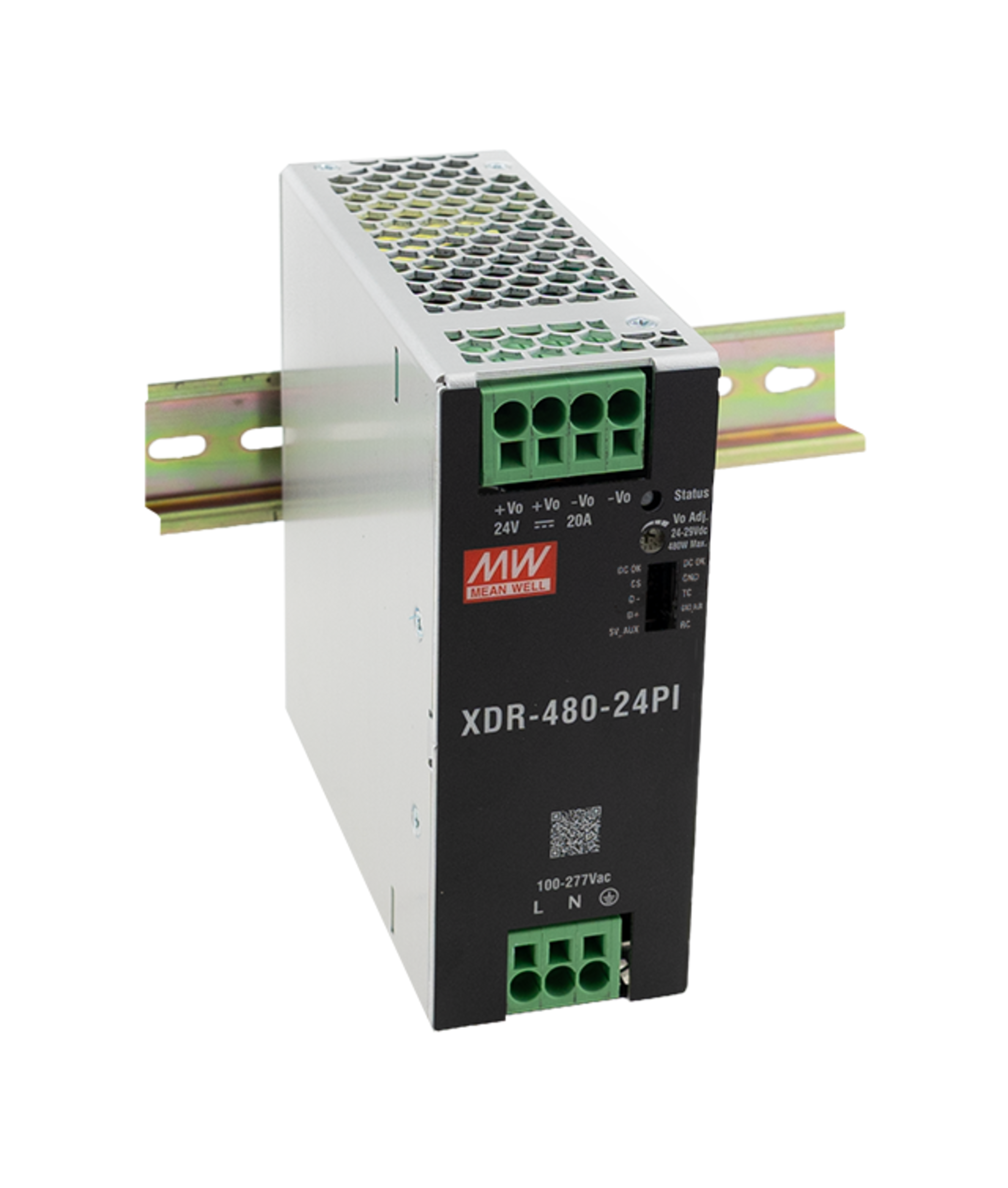

The XDR-480 series is a 480 W AC/DC high-performance industrial DIN rail power supply with an ultra-slim design. Key features of this series include a narrow 48 mm housing that optimizes space requirements for system installation and an ultra-wide input range of 85–305 VAC, making it suitable for worldwide use. It offers a maximum efficiency of 95.5% and low standby power consumption of <2.5 W for energy savings and CO2 reduction. It supports the MODBus communication interface, delivers a constant current with up to 200% peak power, and can handle a momentary peak current of 600%. It features a fanless design, an extremely wide operating temperature range of -40 to +85 °C (up to +60 °C at full load), OVCIII compliance, a parallel connection function up to 1920 W, an extremely low inrush current of <10 A, and includes DC OK and remote on/off functions. It also features an integrated OR-ing FET, the internal circuit board is coated to protect against moisture and dust, and there are several terminal blocks to choose from. With comprehensive protection features, full safety certifications, and a 5-year warranty, the XDR series is a compact, powerful, and extremely reliable DIN rail power supply.
