Fact Sheet
Package/Case
DIN Rail
Output Power
240 W
Output voltage
12 V
Output current
20.000 A
Efficiency
94 %
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
XDR-240
Product group
L3192
Application
ITE
Industry
MSR/Laboratory
Package/Case
DIN Rail
Dimension: Width
40 mm
Dimension: Height
125.2 mm
Dimension: Depth
116 mm
Weight
790 g
Interfaces
MOD-Bus
Manufacturer's warranty (years)
5
Product description

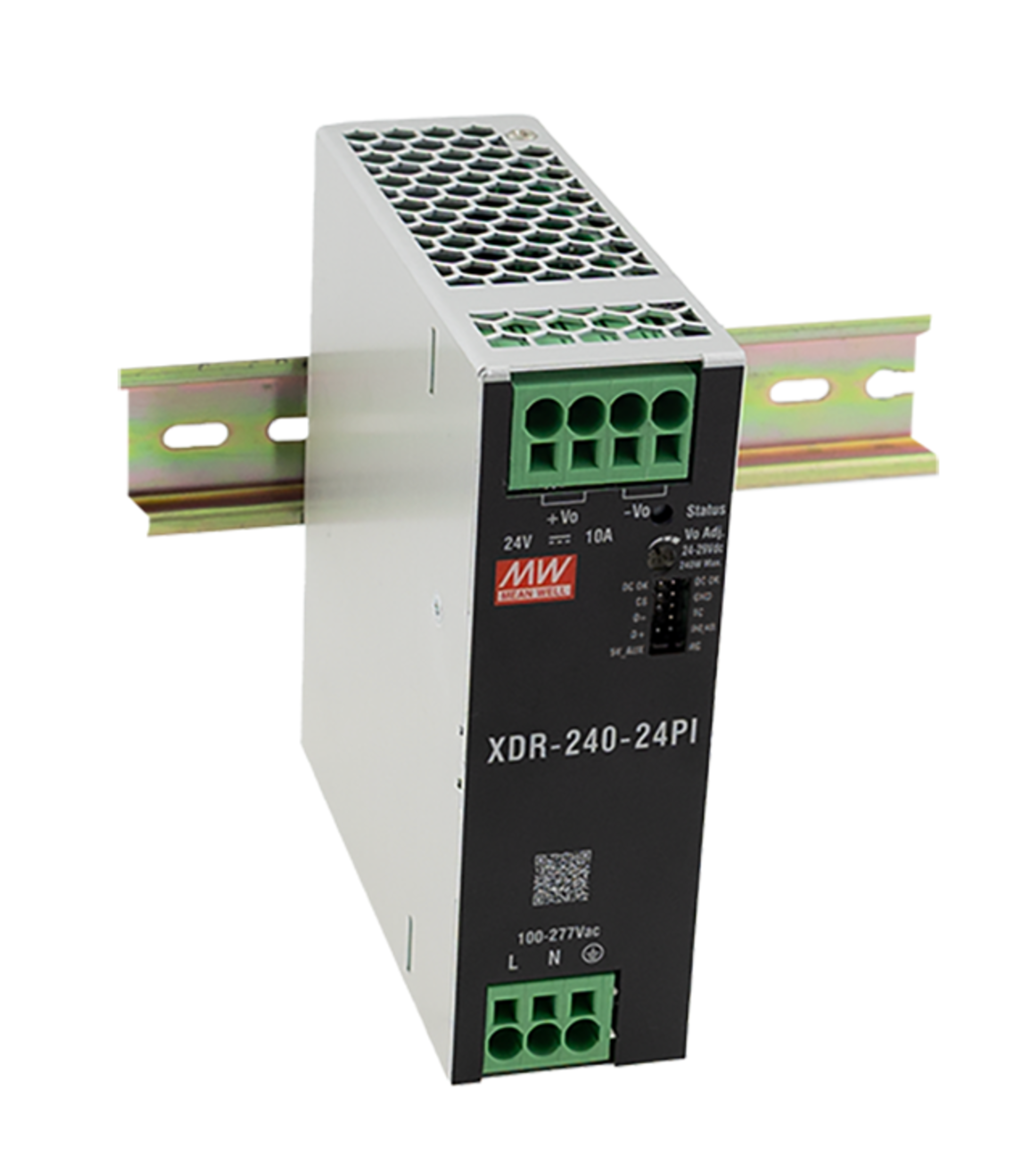

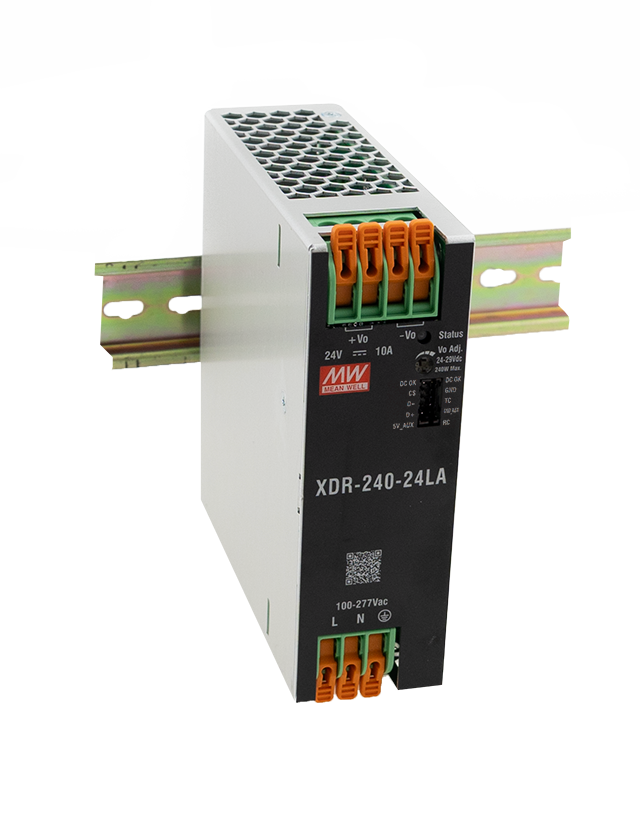

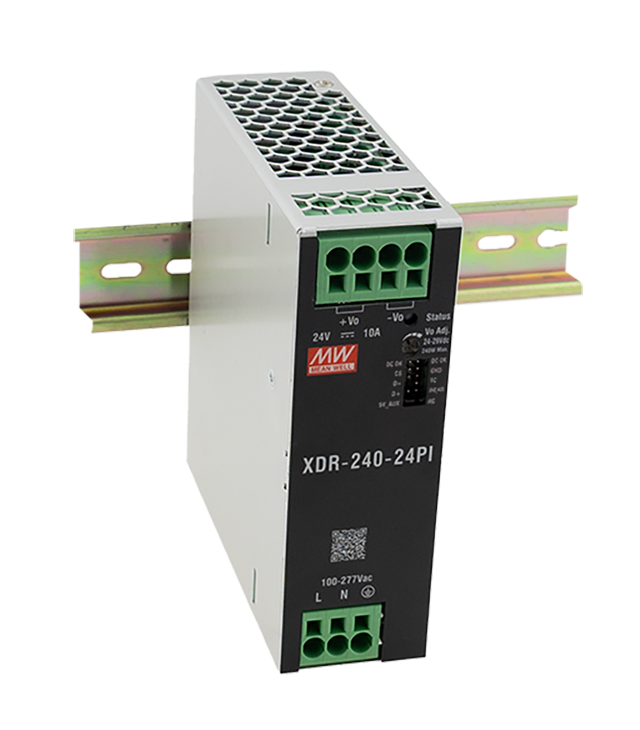

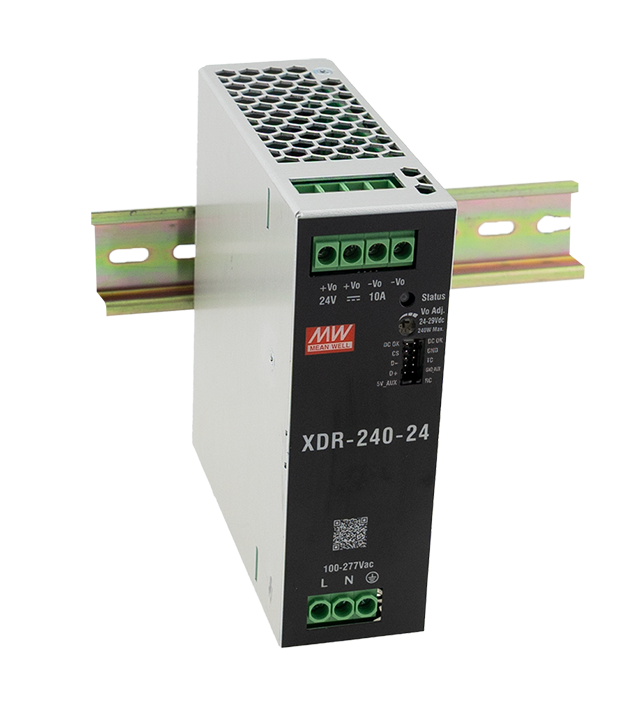

The XDR-240 series is a 240W AC/DC high-end ultra slim industrial DIN rail power. Key features of this series include a narrow 40mm casing, optimizing system installation space, and an ultra-wide input range of 85~305Vac suitable for global use. It boasts a maximum efficiency of 95.5% and a low standby power consumption of 1W for energy savings and carbon reduction. It supports MODBus communication interface, provides constant current with up to 200% peak power, and can handle instantaneous peak current of 600%. It has a fanless design, ultra-wide operating temperature range of -40 to +85°C (up to +60°C at full load); OVCIIl compliance; parallel function capability up to 960W; ultra-low inrush current of <6~15A, and includes DC OK and remote ON/OFF functions. It also has a built-in ORing FET, the internal PCB has a coating for basic moisture and dust protection, and it has multiple terminal blocks for selection. With comprehensive protection functions, complete safety certifications, and a 5-years warranty, the XDR-240 series is a compact, high-performance, and highly reliable DIN rail power supply.
