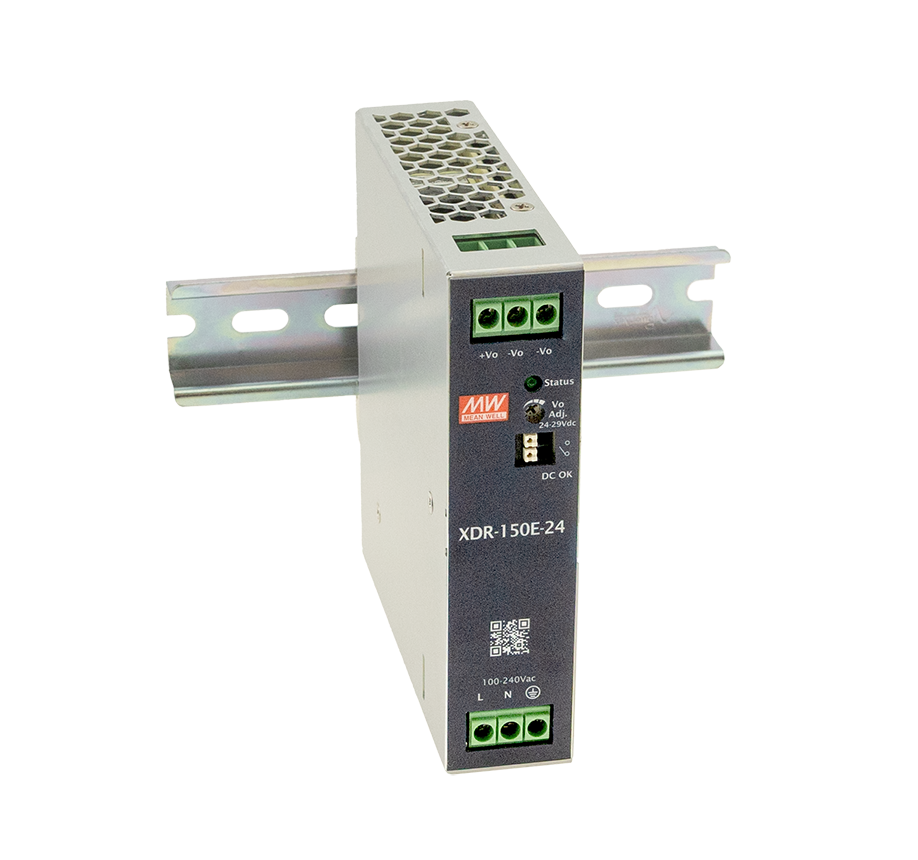

XDR-150E-24

MEAN WELL AC/DC industrial power supply unit DIN Rail 156W 24V 6,5A

XDR-150E-24XDR-150E-24
Manufacturer Part No.
XDR-150E-24
Schukat Part No.
XDR-150E-24
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

455 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 24 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
DIN Rail
Output Power
156 W
Output voltage
24 V
Output current
6.500 A
Efficiency
91 %
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • XDR-150E
Product group
  • L3181
Application
  • ITE
  • Industry
  • MSR/Laboratory
Package/Case
  • DIN Rail
Dimension: Width
  • 30 mm
Dimension: Height
  • 125.2 mm
Dimension: Depth
  • 116 mm
Weight
  • 430 g
Label
  • TÜV
Manufacturer's warranty (years)
  • 3
Product description
  • The XDR-150E series is an economical and ultra-slim industrial 150W AC/DC DIN rail power supply. The main features of this series include a slim 30mm housing, which saves installation space in the end system, and an ultra-wide input range of 85-264Vac, which is suitable for worldwide use. The maximum efficiency of 91% and the low standby power consumption of less than 1 W ensure energy savings and the reduction of carbon dioxide emissions. It features built-in constant current output, fanless design, wide operating temperature range from -40 to +70°C (up to +50°C at full load), OVOCIII compliance, built-in DC-OK signal. With comprehensive protection features, full safety certifications and a 3-year warranty, the XDR-150E series is a compact, powerful and highly reliable DIN rail power supply.
Features
  • Adjustable Output Voltage
  • DC compatible
  • DC-OK-Signal

Operating conditions

MTBF
  • 440,400 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Mains connection/phases
  • I
Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 85 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 120 V
Input voltage max. DC
  • 370 V
Input current
  • 1.6 A
Efficiency
  • 91 %
No load power, less than
  • 0.9 W
Leakage current, max.
  • 1 mA
Inrush current, max.
  • 40 A
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 1
Output Power
  • 156 W
Output voltage
  • 24 V
Output voltage tolerance
  • -1.1 %
Ripple & Noise
  • 120 mVp-p
Output current
  • 6.500 A
Overload protection
Type of overload protection
  • Constant Current Limitting
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Screw Terminal

Safety/Certifications

Protection class
  • I
Isolation voltage I/P-O/P
  • 4,000 V
Isolation voltage I/P-FG
  • 2,000 V
Isolation voltage O/P-FG
  • 1,500 V
Overvoltage category
  • 3
Approvals
  • AS/NZ
  • BSMI
  • CCC
  • CE
  • EAC
  • EN
  • IEC
  • RCM
  • UKCA
  • UL
Standards (EMC)
  • EN 55032
  • EN 55032 Class B
  • EN 61204-3
Standards (safety)
  • EN 61010-1
  • EN 61558-1
  • EN 61558-2-16
  • EN 62368-1
  • IEC 61010-1
  • IEC 61558-1
  • IEC 62368-1
  • UL 61010-1
