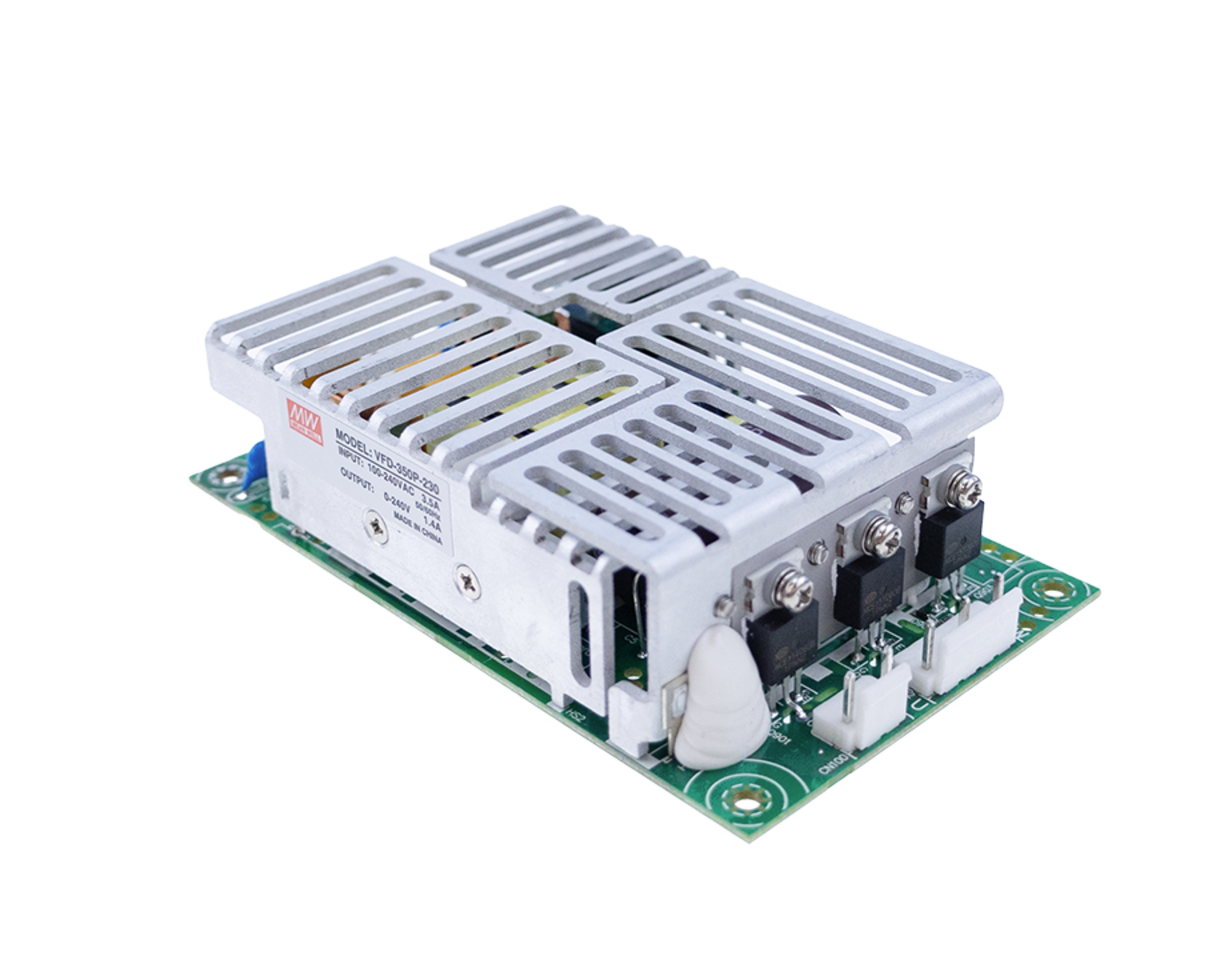

VFD-350P-230

MEAN WELL Frequency inverter 350W 240V 1,4A PWM

NEW
Manufacturer Part No.
VFD-350P-230
Schukat Part No.
VFD-350P-230
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

9 Pcs. in stock

Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 48 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Output current
1.400 A
Interfaces
PWM
Output voltage
240 V
Output Power
350 W
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • MEAN WELL
Series
  • VFD-350P-230
Application
  • ITE
  • Industry
Package/Case
  • Open Frame

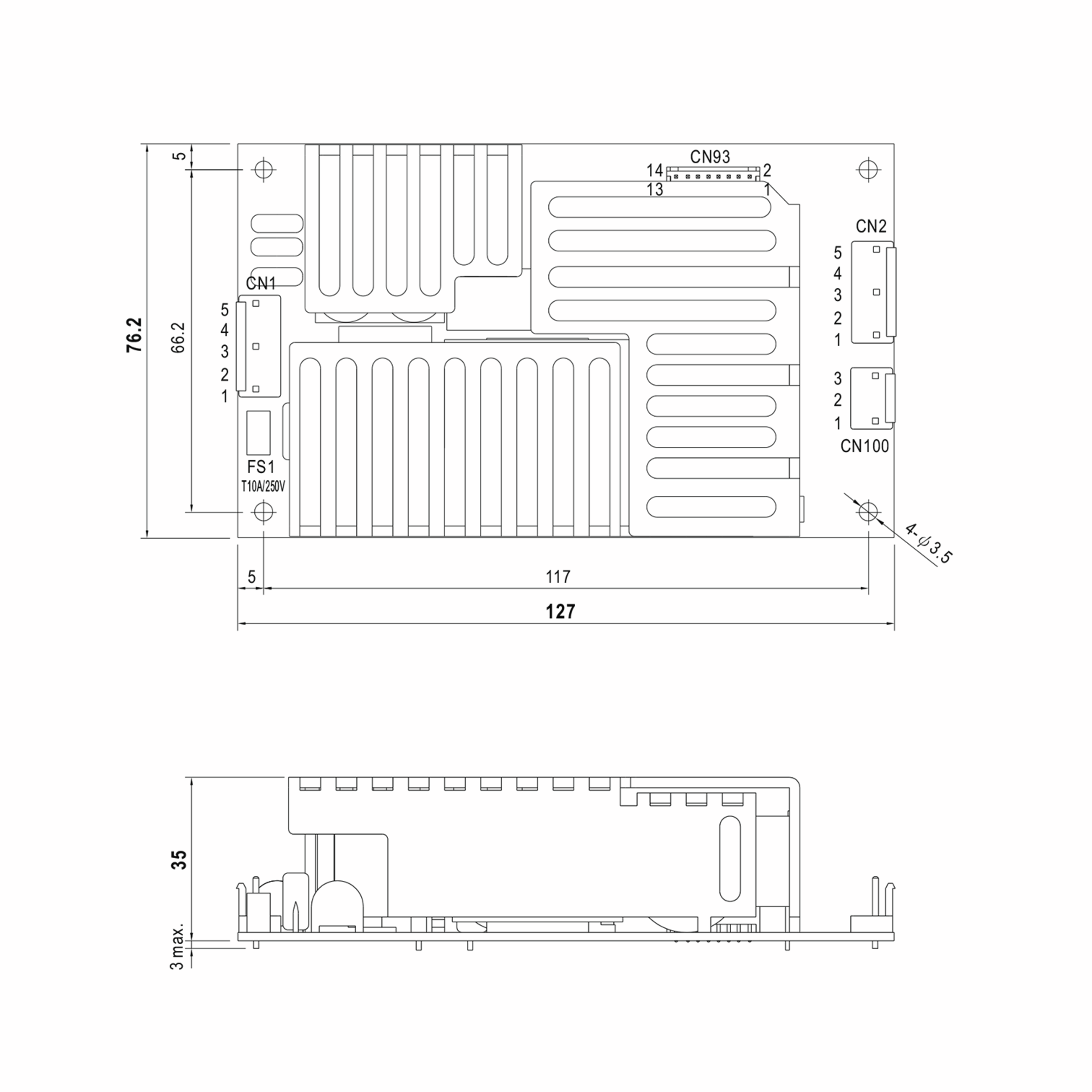

Dimension: Length
  • 127 mm
Dimension: Width
  • 76.2 mm
Dimension: Height
  • 35 mm
Weight
  • 270 g
Label
  • TÜV
Interfaces
  • PWM
Manufacturer's warranty (years)
  • 3
Notice
  • The article VFD-350P-230 is a sub-component for controlling brushless DC motors (BLDC). The motor is controlled via control electronics to be provided by the customer, which must be connected to the PWM input of the VFD-150P-48. The output frequency and frequency stabilization are regulated and limited via the customer-specific control unit. Please note: If the control electronics enable control with a resulting output frequency of 600Hz or higher and a frequency stabilization of 0.2% or better, the DUAL-USE regulation must be checked for the resulting overall inverter system consisting of VFD-150P-48 and external control electronics. - DUAL-USE Regulation (EU) 2021/821 Category 3 / Point 3A225 -

Operating conditions

MTBF
  • 199,700 h
Operating expectation
  • 30,000 h
Operating Temperature Min.
  • -30 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Mains connection/phases
  • I
Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input current
  • 2 A
Inrush current, max.
  • 70 A
Power factor correction (PFC)
Power factor
  • 0.93
Connection type, input
  • Connector

Output

Number of phases
  • 3
Output Power
  • 350 W
Output voltage
  • 240 V
Output current
  • 1.400 A
Short-circuit protection
Connection type, output
  • Connector

Safety/Certifications

Approvals
  • CE
  • EAC
  • EN
  • IEC
  • UKCA
Standards (EMC)
  • EN 61800-3 C2
  • IEC 61800-3 C2
Standards (safety)
  • EN 61800-5-1
  • IEC 61800-5-1
