Fact Sheet
Notice
Cross-references: Here you will find suitable cables/wires.
Output current
7.200 A
Interfaces
PWM
Output voltage
34 V
Output Power
250 W
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
VFD-250P-48
Product group
L9921
Application
ITE
Industry
Package/Case
Open Frame

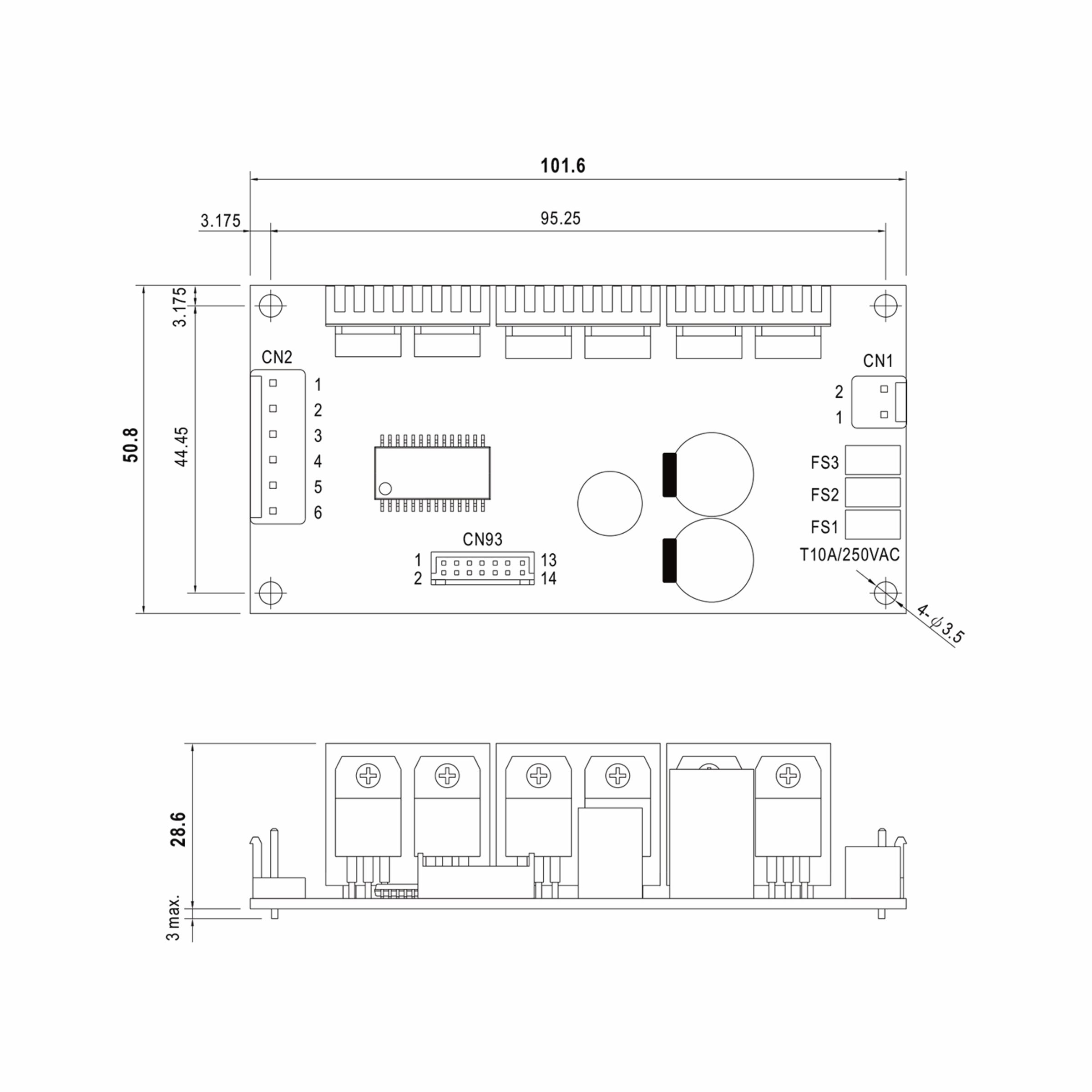

Dimension: Length
101.6 mm
Dimension: Width
50.8 mm
Dimension: Height
28.6 mm
Weight
90 g
Label
TÜV
Interfaces
PWM
Manufacturer's warranty (years)
3
Product description

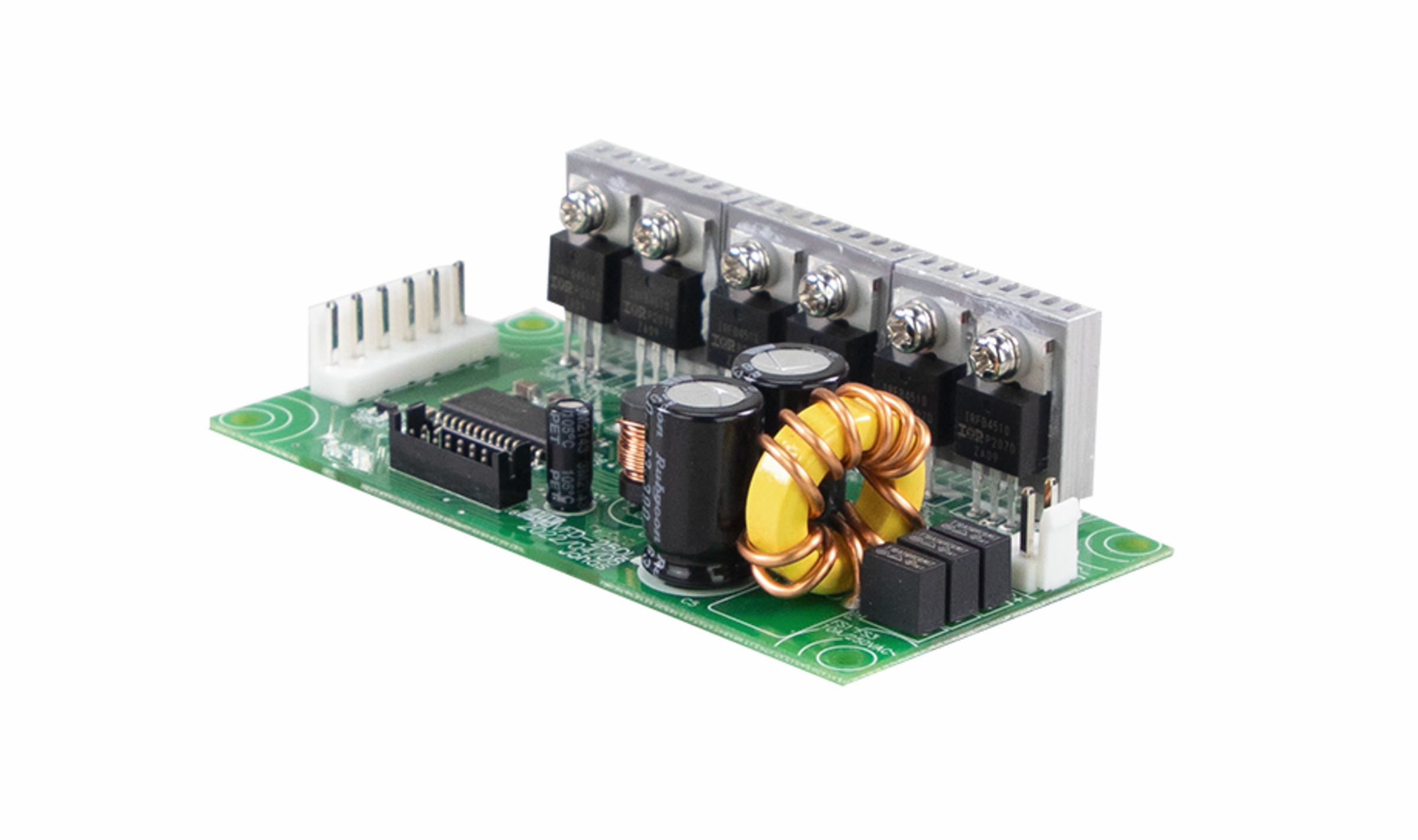

VFD-250P-48 is a variable frequency drive that can be controlled with external PWM controller. The input range is from 20VDC to 55VDC which is suitable for all kinds of installation. It is in size of 4" x 2". VFD-250P-48 able to deliver 200% peak load and with fan-less design, the life time can be extended. VFD is suitable for three-phase motor drive, such as BLDC, Induction motor, SynRM applications.
Features
The article VFD-250P-230 is a sub-component for controlling brushless DC motors (BLDC). The motor is controlled via control electronics to be provided by the customer, which must be connected to the PWM input of the VFD-150P-48. The output frequency and frequency stabilization are regulated and limited via the customer-specific control unit.
Please note: If the control electronics enable control with a resulting output frequency of 600Hz or higher and a frequency stabilization of 0.2% or better, the DUAL-USE regulation must be checked for the resulting overall inverter system consisting of VFD-150P-48 and external control electronics. - DUAL-USE Regulation (EU) 2021/821 Category 3 / Point 3A225 -
Application note
The article VFD-250P-48 is a sub-component for controlling brushless DC motors (BLDC).
The motor is controlled via control electronics to be provided by the customer, which must be connected to the PWM input of the VFD-150P-48.
The output frequency and frequency stabilization are regulated and limited via the customer-specific control unit.
Please note:
If the control electronics enable control with a resulting output frequency of 600Hz or higher and a frequency stabilization of 0.2% or better,
the DUAL-USE regulation must be checked for the resulting overall inverter system consisting of VFD-150P-48 and external control electronics.
- DUAL-USE Regulation (EU) 2021/821 Category 3 / Point 3A225 -
