10 Pcs. in stock
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Notice
Cross-references: Here you will find suitable cables/wires.
Output current
1.000 A
Interfaces
PWM
Output voltage
240 V
Output Power
250 W
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
VFD-250P-230
Product group
L9921
Application
ITE
Industry
Package/Case
Open Frame

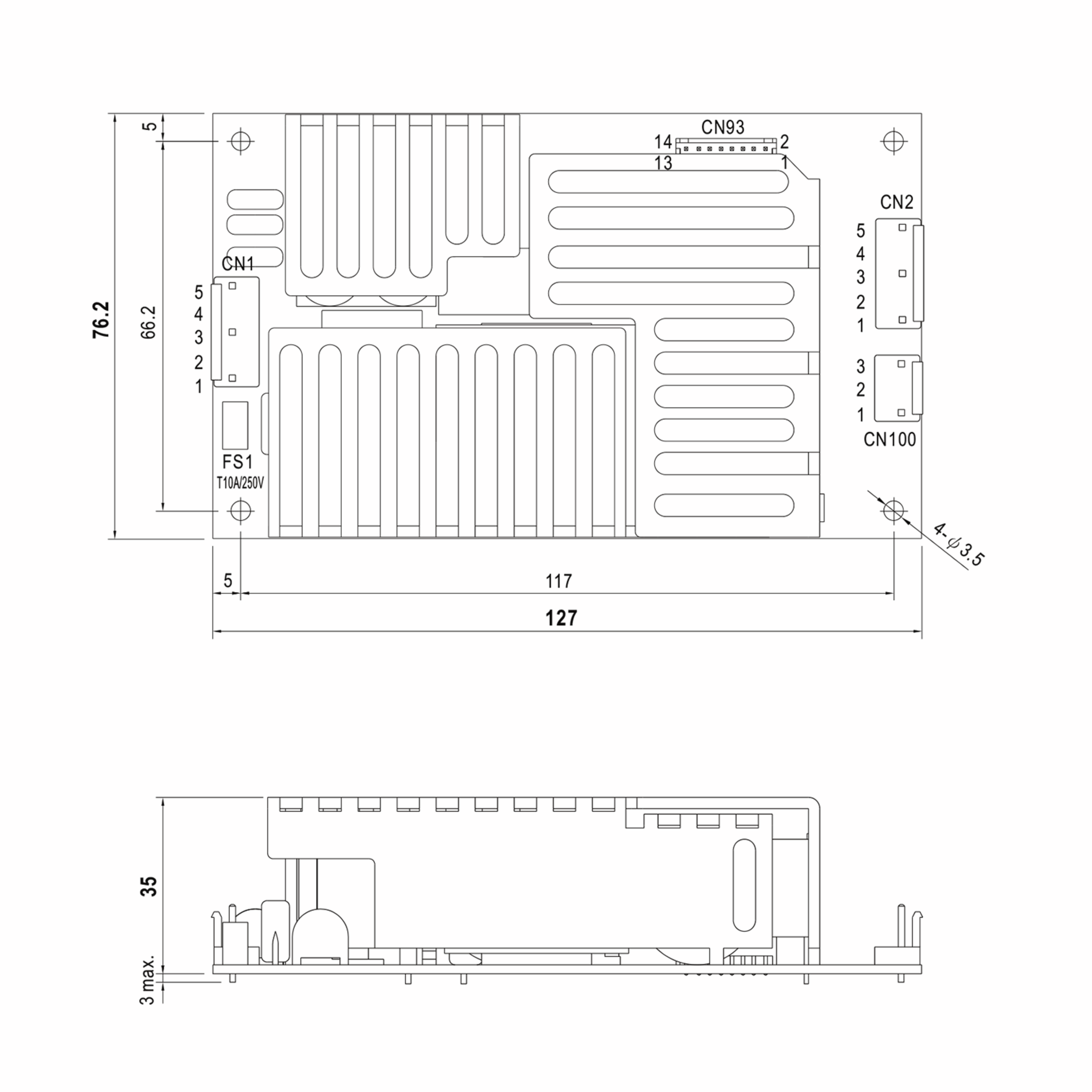

Dimension: Length
127 mm
Dimension: Width
76.2 mm
Dimension: Height
35 mm
Weight
260 g
Label
TÜV
Interfaces
PWM
Manufacturer's warranty (years)
3
Product description

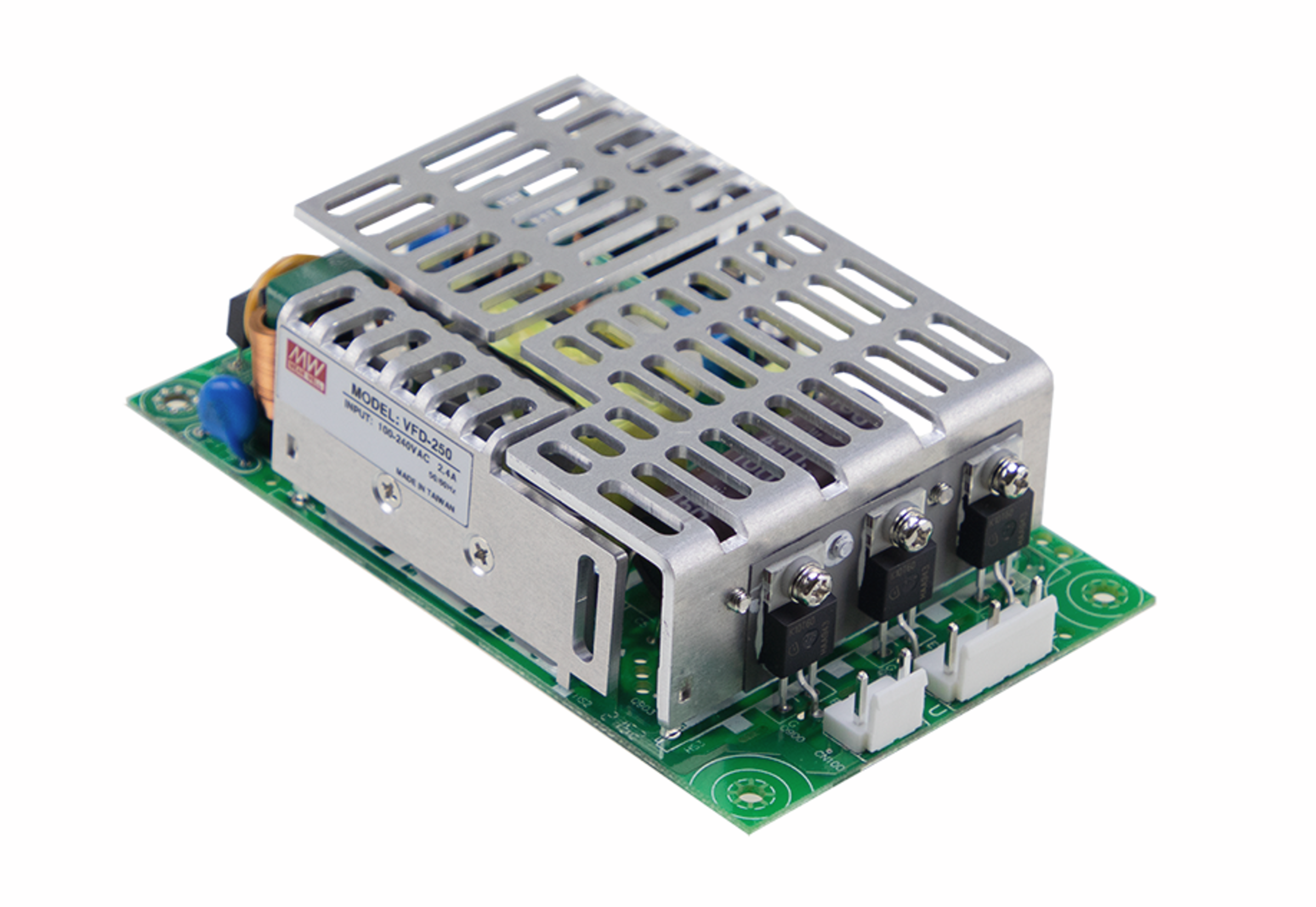

VFD-250P-230 is a variable frequency drive that can be controlled with external PWM controller. The input range is from 90VAC to 264VAC which is suitable for all kinds of installation. It is in size of 5” x 3" and built-in PFC function. VFD-250P-230 able to deliver 200% peak current and with fan-less design,
the life time can be extended. VFD is suitable for three-phase motor drive, such as BLDC, Induction motor, SynRM applications
Features
The article VFD-250P-230 is a sub-component for controlling brushless DC motors (BLDC). The motor is controlled via control electronics to be provided by the customer, which must be connected to the PWM input of the VFD-150P-48. The output frequency and frequency stabilization are regulated and limited via the customer-specific control unit.
Please note: If the control electronics enable control with a resulting output frequency of 600Hz or higher and a frequency stabilization of 0.2% or better, the DUAL-USE regulation must be checked for the resulting overall inverter system consisting of VFD-150P-48 and external control electronics. - DUAL-USE Regulation (EU) 2021/821 Category 3 / Point 3A225 -
Application note
The VFD-250P-230 is a component used to control brushless DC motors (BLDC).
The motor is controlled via customer-supplied control electronics, which must be connected to the PWM input of the VFD-150P-48.
The output frequency and frequency stabilisation are regulated and limited by the customer-specific control system.
Please note:
If the control electronics allow operation with a resulting output frequency of 600 Hz or higher and frequency stabilisation of 0.2% or better,
the classification of the resulting complete inverter system comprising the VFD-150P-48 and external control electronics must be assessed in accordance with the Dual-Use Regulation.
- Dual-Use Regulation (EU) 2021/821, Category 3 / Item 3A225 -
