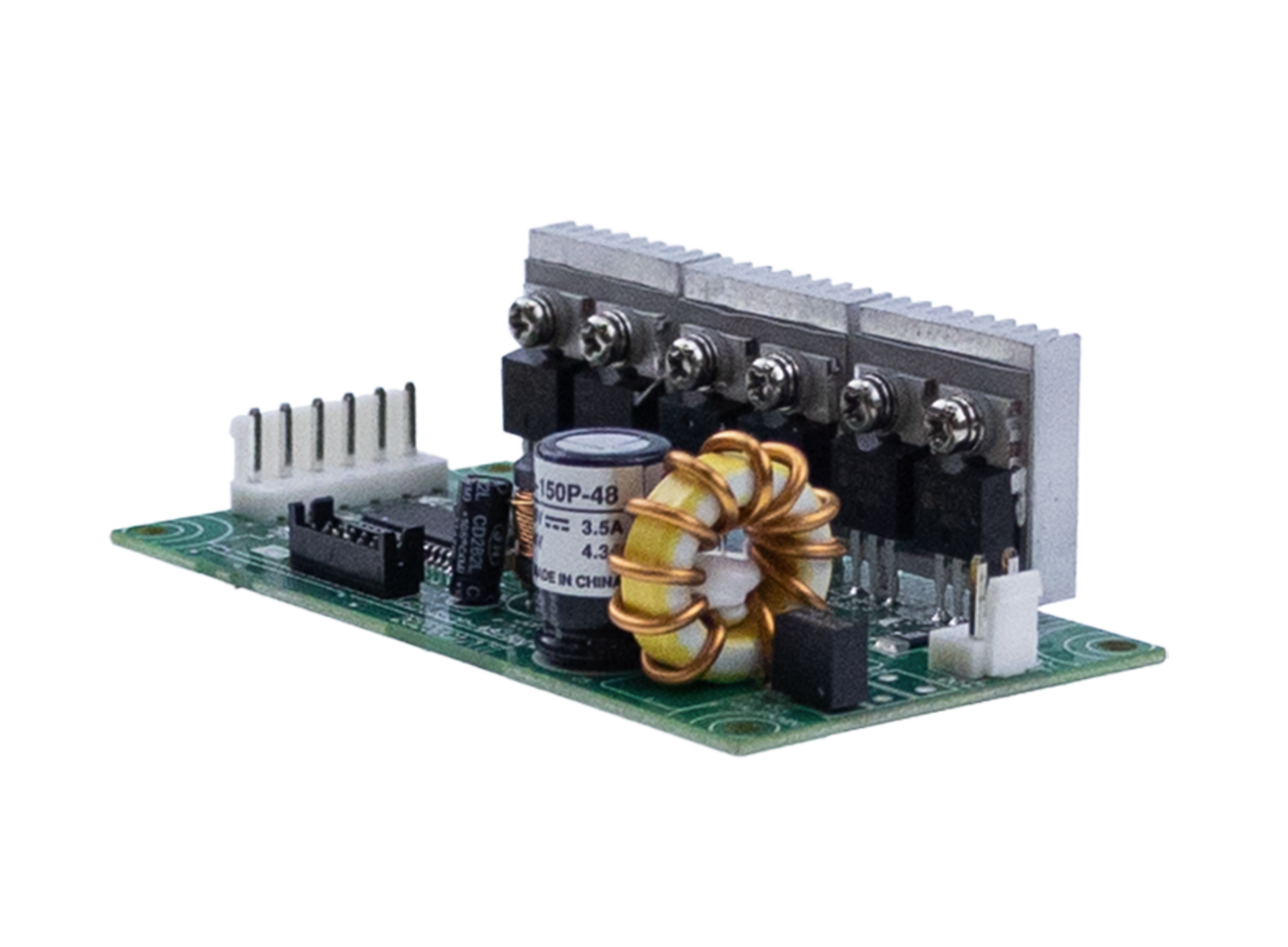

VFD-150P-48

MEAN WELL Frequency inverter 150W 34V 4,3A PWM

NEW
Manufacturer Part No.
VFD-150P-48
Schukat Part No.
VFD-150P-48
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

10 Pcs. in stock

Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 96 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Output current
4.300 A
Interfaces
PWM
Output voltage
34 V
Output Power
150 W
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • MEAN WELL
Series
  • VFD-150P-48
Application
  • ITE
  • Industry
Package/Case
  • Open Frame

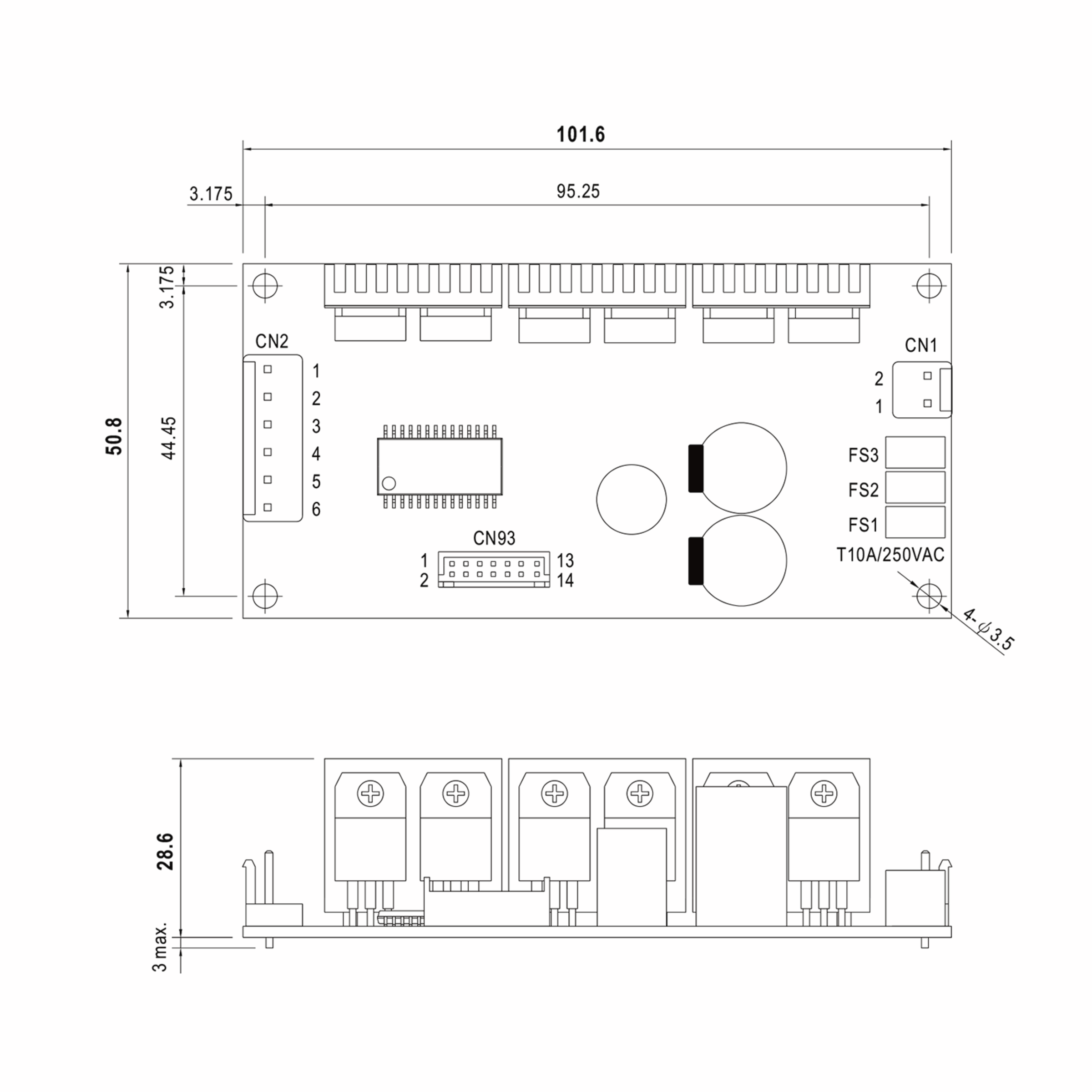

Dimension: Length
  • 101.6 mm
Dimension: Width
  • 50.8 mm
Dimension: Height
  • 28.6 mm
Weight
  • 90 g
Label
  • TÜV
Interfaces
  • PWM
Manufacturer's warranty (years)
  • 3
Notice
  • The article VFD-150P-48 is a sub-component for controlling brushless DC motors (BLDC). The motor is controlled via control electronics to be provided by the customer, which must be connected to the PWM input of the VFD-150P-48. The output frequency and frequency stabilization are regulated and limited via the customer-specific control unit. Please note: If the control electronics allow control with a resulting output frequency of 600Hz or higher and a frequency stabilization of 0.2% or better, the DUAL-USE regulation must be checked for the resulting overall inverter system consisting of VFD-150P-48 and external control electronics. - DUAL-USE Regulation (EU) 2021/821 Category 3 / Point 3A225 -

Operating conditions

MTBF
  • 303,700 h
Operating expectation
  • 30,000 h

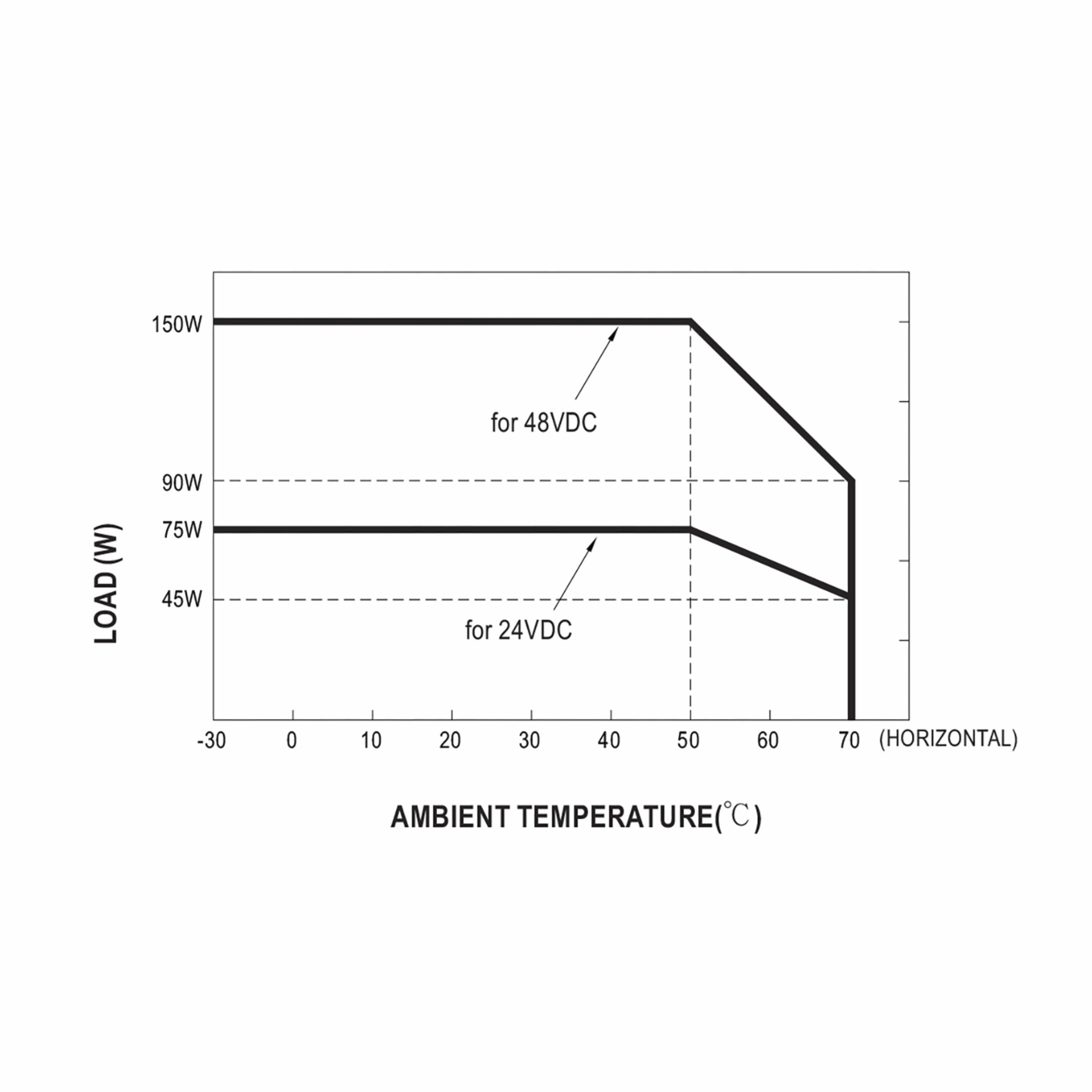

Operating Temperature Min.
  • -30 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Input voltage min. DC
  • 22 V
Input voltage max. DC
  • 55 V
Input current
  • 3.5 A
Power factor correction (PFC)
Connection type, input
  • Connector

Output

Number of phases
  • 3
Output Power
  • 150 W
Output voltage
  • 34 V
Output current
  • 4.300 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Connector

Safety/Certifications

Approvals
  • CE
  • EAC
  • EN
  • IEC
  • UKCA
Standards (EMC)
  • EN 61800-3 C2
  • IEC 61800-3 C2
Standards (safety)
  • EN 61800-5-1
  • IEC 61800-5-1

Documents

VFD-E.pdf
Download (pdf, 964 KB)
