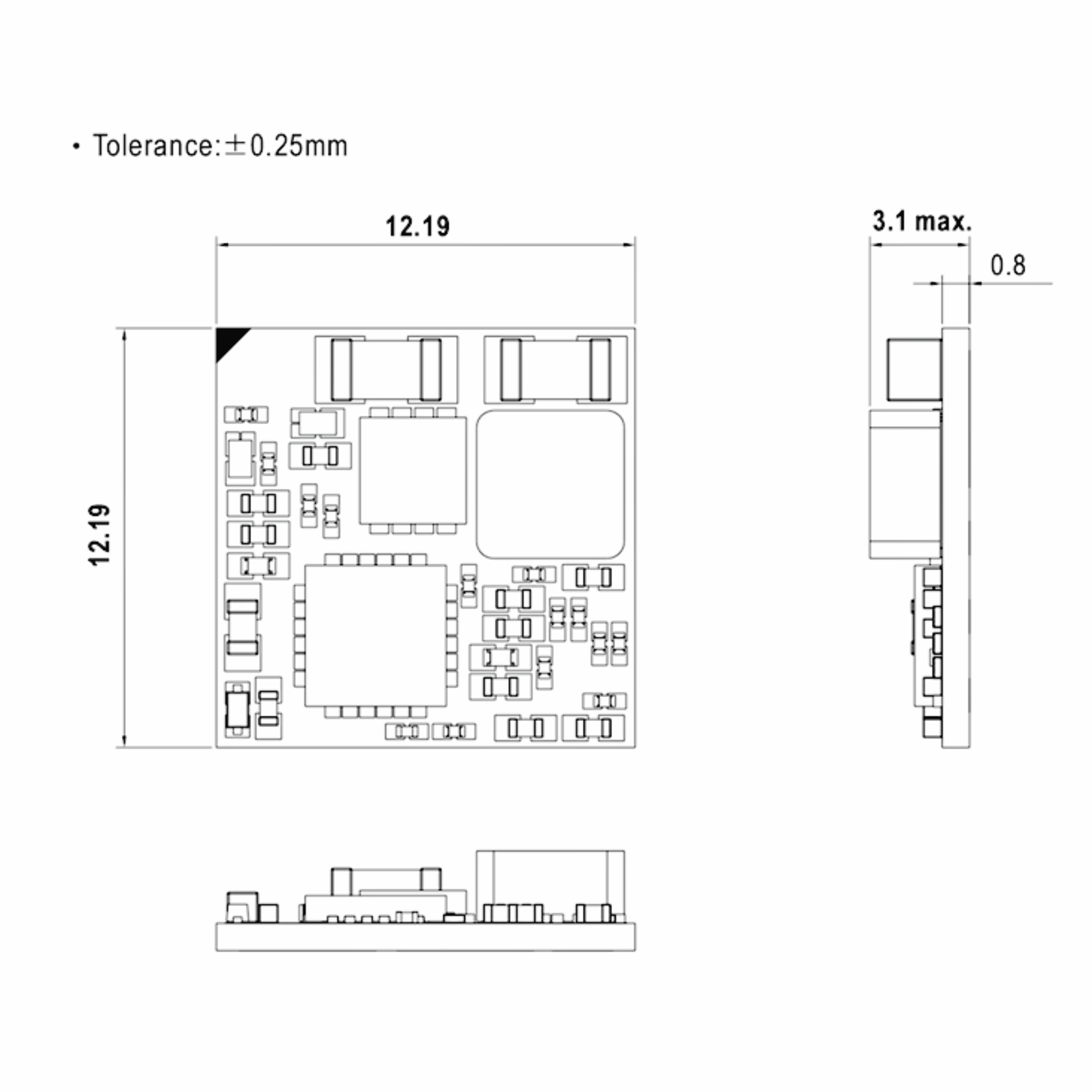

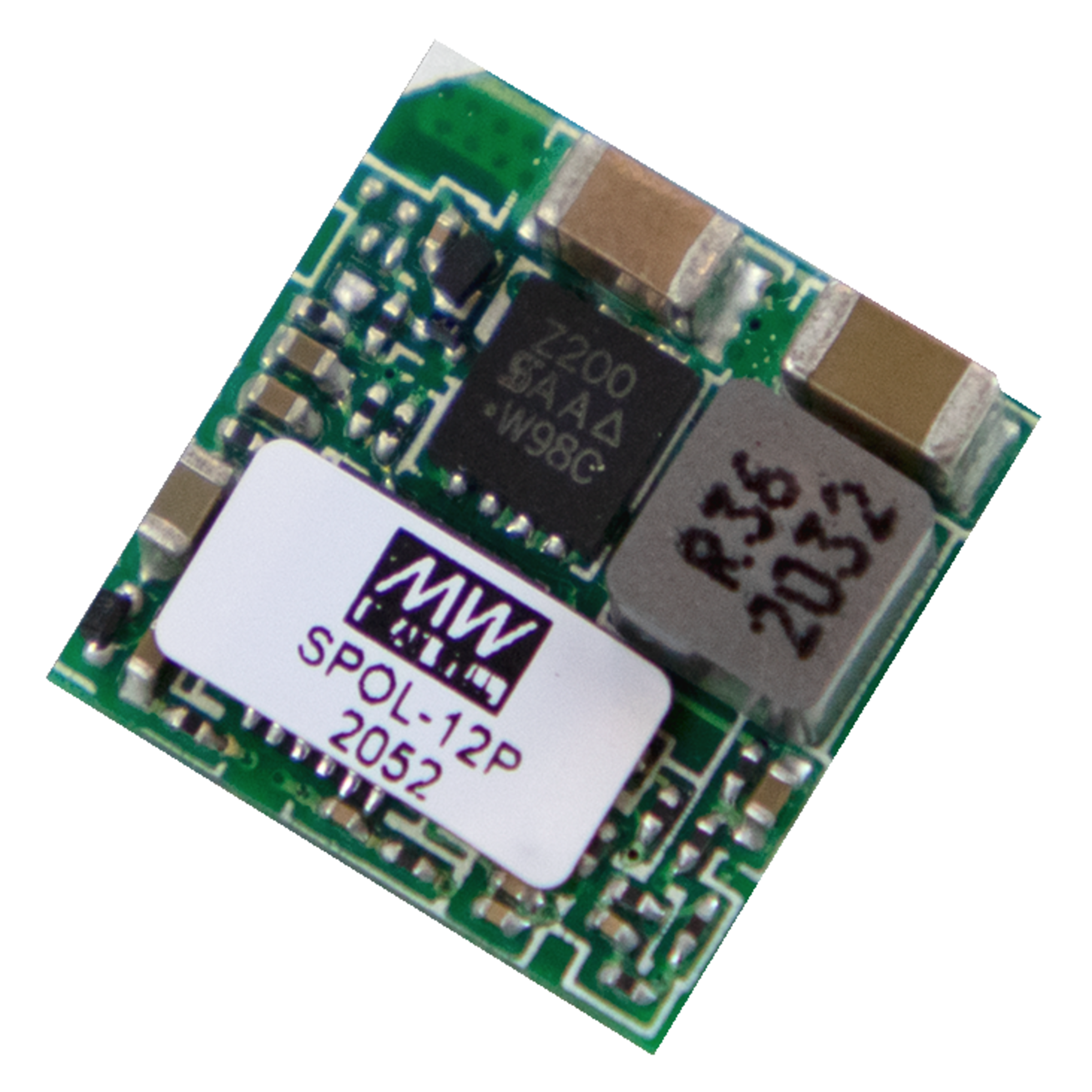

SPOL-12P
MEAN WELL DC/DC switching regulator (non-isolated) buck 5V 12A LGA
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
850 Pcs.
850 Pcs.
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 850 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 850 or multiple of 850)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Operating mode
- buck
- Package/Case
- LGA
- Output Power
- 66 W
- Output voltage
- 5 V
- Output current
- 12.000 A
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 1,132,000 h
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 90 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 125 °C
Input
- Input voltage min. DC
- 3 V
- Input voltage max. DC
- 14.4 V
- Efficiency
- 91 %
- Connection type, input
- SMD
Output
- Output Power
- 66 W
- Output voltage
- 5 V
- Output Voltage Min.
- 0.6 V
- Output Voltage Max.
- 5.5 V
- Output voltage tolerance
- -3 %
- Ripple & Noise
- 50 mVp-p
- Output current
- 12.000 A
- Short-circuit protection
- Connection type, output
- SMD
- Capacitive load, max.
- 200 µF
Safety/Certifications
- Approvals
- CE
- EN
- UKCA
- Standards (EMC)
- EN 55032 Class A
- Standards (safety)
- EN 62368-1
