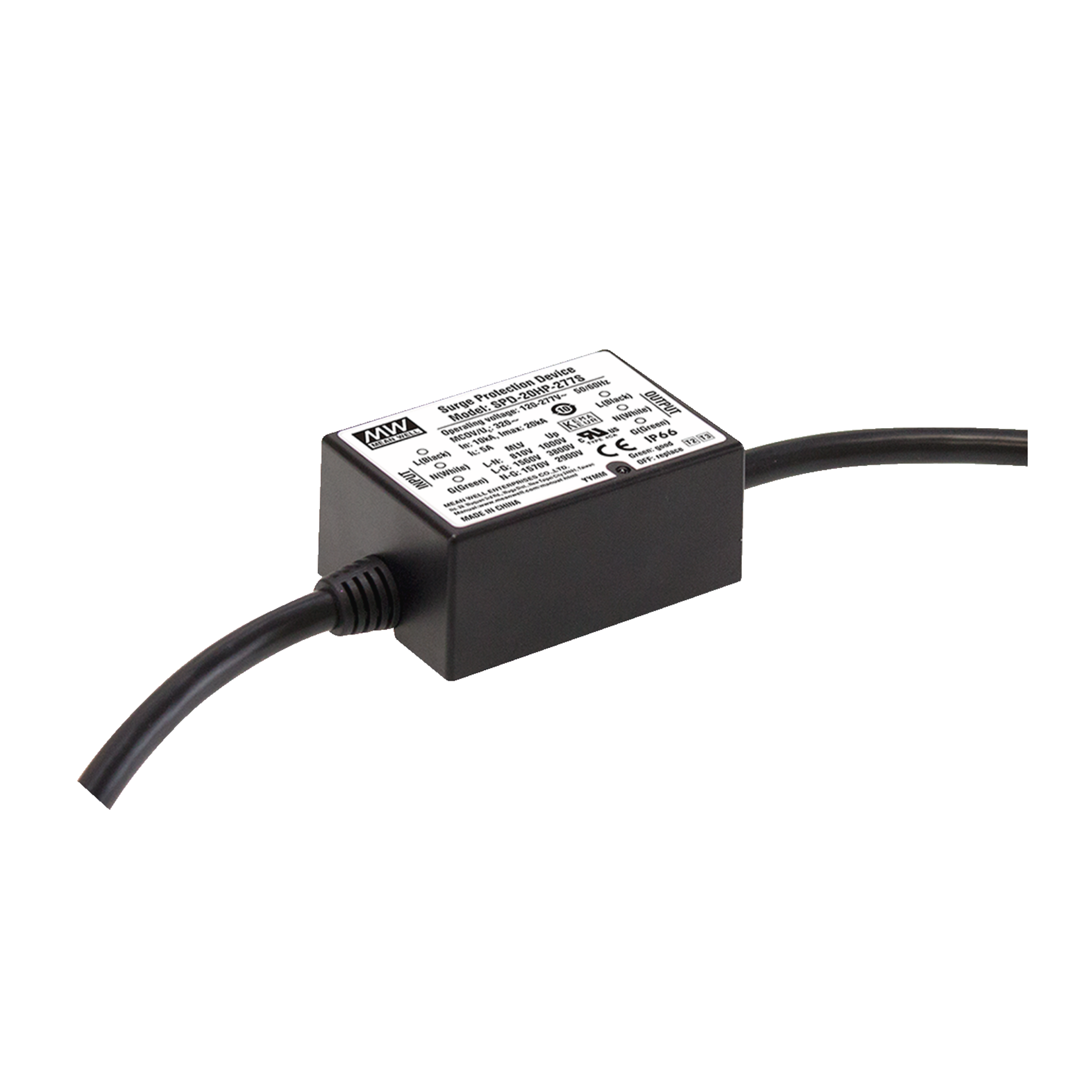

SPD-20HP-480S
MEAN WELL Overvoltage protection Typ 2/3 20KA IP66
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
17 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 60 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Typ 2/3
- Maximum discharge current
- 20 KA
- Protection Class IP
- IP66
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 75 °C
- Disconnection and AC line cut-off
- Protected phases
- I
Input
- Mains frequency min.
- 50 Hz
- Mains frequency max.
- 60 Hz
- Nominal input voltage
- 480 V
- Input voltage min. AC
- 120 V
- Input voltage max. AC
- 277 V
- Maximum discharge current
- 20 KA
- Connection type, input
- Strand
- Cable length, input
- 20 cm
Output
- Load current max.
- 5 A
- Connection type, output
- Strand
- Cable length, output
- 20 cm
Safety/Certifications
- Protection class
- I
- Protection Class IP
- IP66
- Approvals
- CE
- EAC
- UKCA
- UL
- Standards (safety)
- UL 1449
