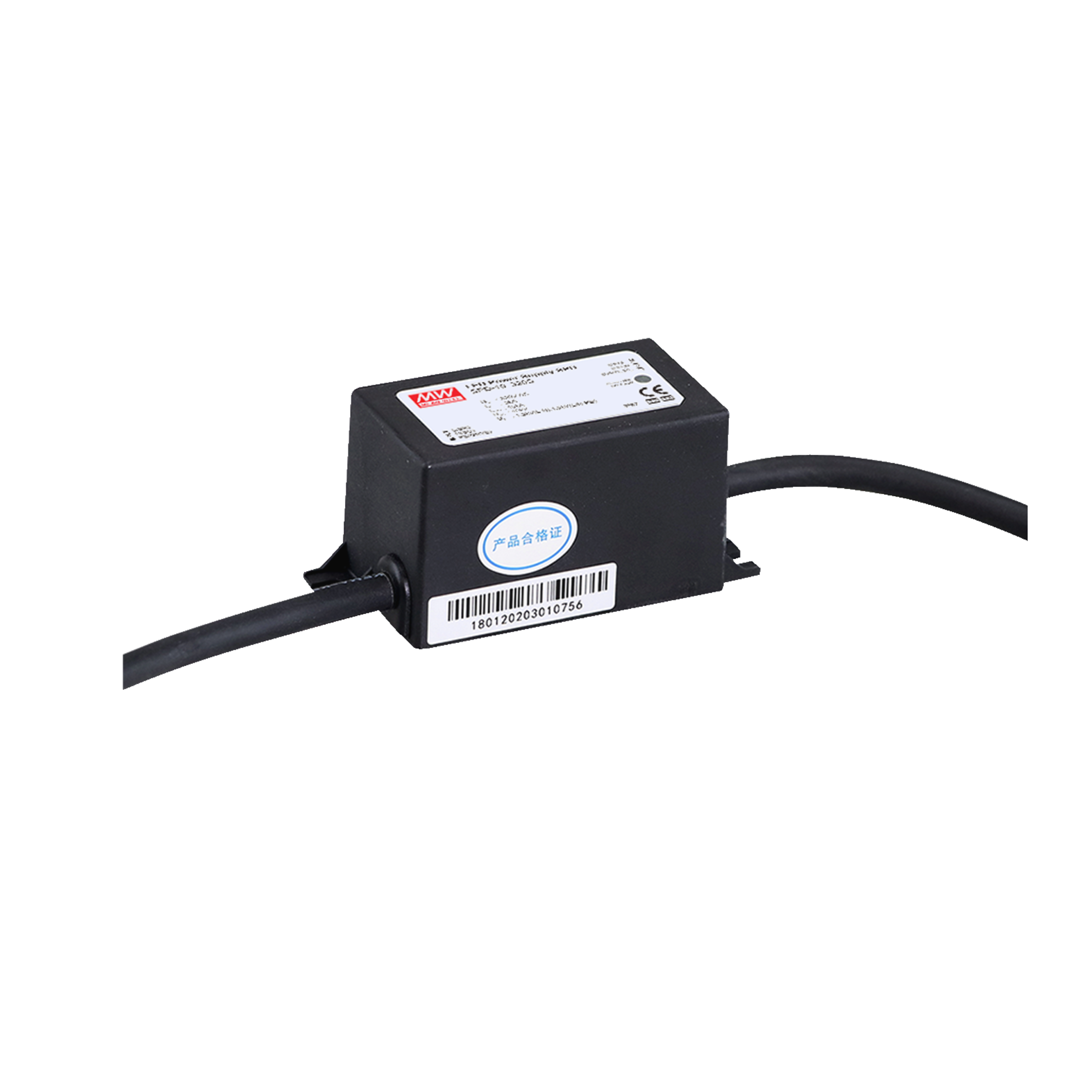

SPD-10-320S
MEAN WELL Overvoltage protection Typ 2/3 10KA IP67
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 30.06.2025
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 60 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Typ 2/3
- Maximum discharge current
- 10 KA
- Protection Class IP
- IP67
- Protection level L/N
- 1.2 kV
- Protection level L/PE
- 1.5 kV
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Disconnection and AC line cut-off
- Protected phases
- I
Input
- Mains frequency min.
- 50 Hz
- Mains frequency max.
- 60 Hz
- Input voltage min. AC
- 120 V
- Input voltage max. AC
- 320 V
- Maximum discharge current
- 10 KA
- Connection type, input
- Strand
- Cable length, input
- 20 cm
Output
- Load current max.
- 5 A
- Connection type, output
- Strand
- Cable length, output
- 20 cm
- Protection level L/N
- 1.2 kV
- Protection level L/PE
- 1.5 kV
- Protection level N/PE
- 1.5 kV
Safety/Certifications
- Protection class
- I
- Protection Class IP
- IP67
- Approvals
- CE
- UKCA
- Standards (safety)
- IEC 61347-1
