Fact Sheet
Operating mode
CV/CC
Output Power
151.2 W
Output voltage
24 V
Output current
6.300 A
Interfaces
not dimmable
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
SLD-150
Product group
L4571
Application
Lighting
Operating mode
CV/CC
Package/Case
Enclosed Plastic
Dimension: Length
330 mm
Dimension: Width
35 mm
Dimension: Height
22 mm
Weight
310 g
Label
MM-Zeichen; SELV; DEKRA
Interfaces
not dimmable
Manufacturer's warranty (years)
5
Product description

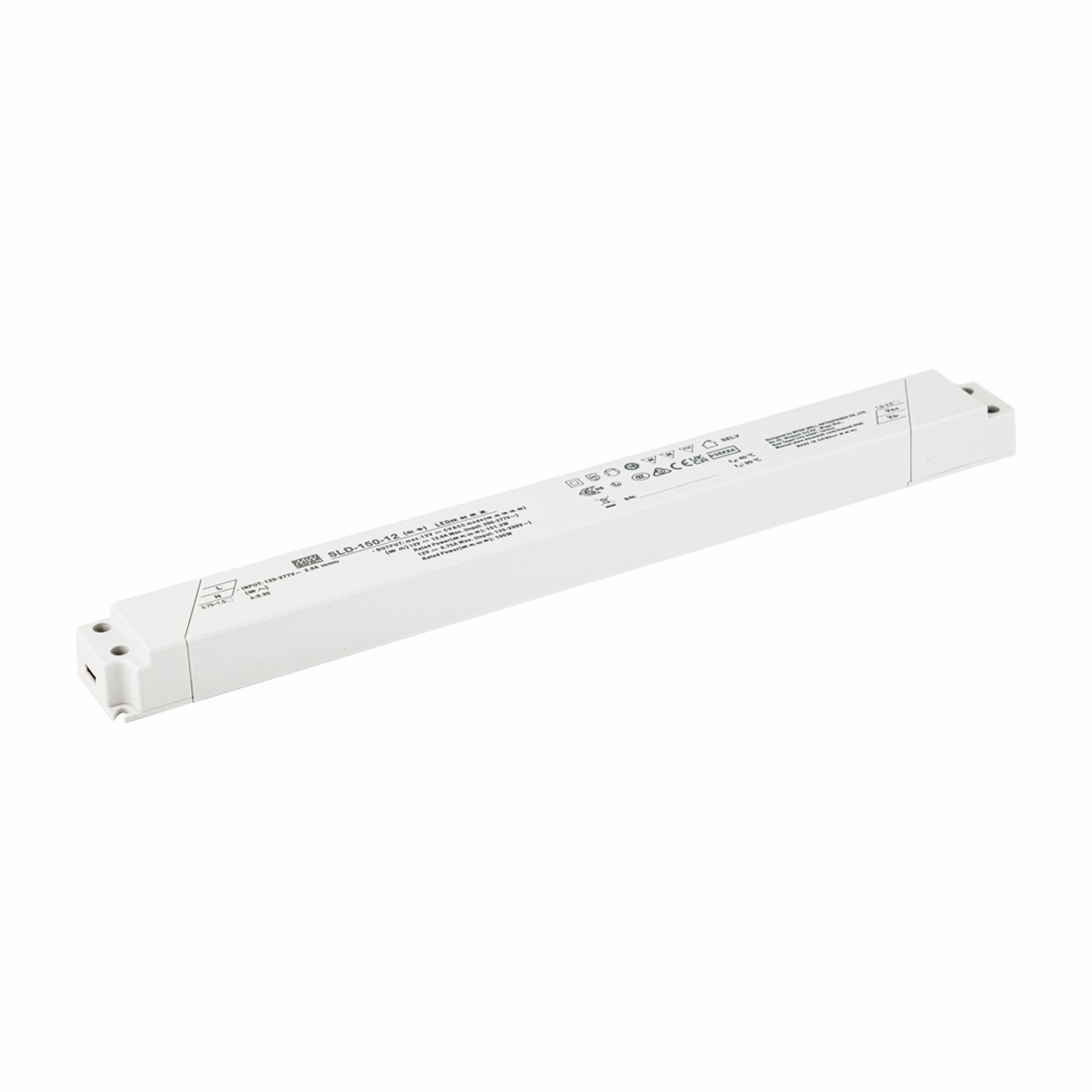

SLD-150 series is a 150W AC/DC LED driver featuring with dual modes for constant voltage and constant current applications. SLD-150 operates from 120-305VAC and offers models with different rated voltage ranging between 12V and 56V. The 12V and 24V are suitable for constant voltage LED strip or household device and 56V is support for constant current application. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -25C° - +85C° case temperature under free air convection. SLD-150 design with low profile and slim housing which is good for signage and decoration lighting applications.
Features
DC compatible
Independent Control Gear
Application note
Power supply for the operation of LED light sources.
