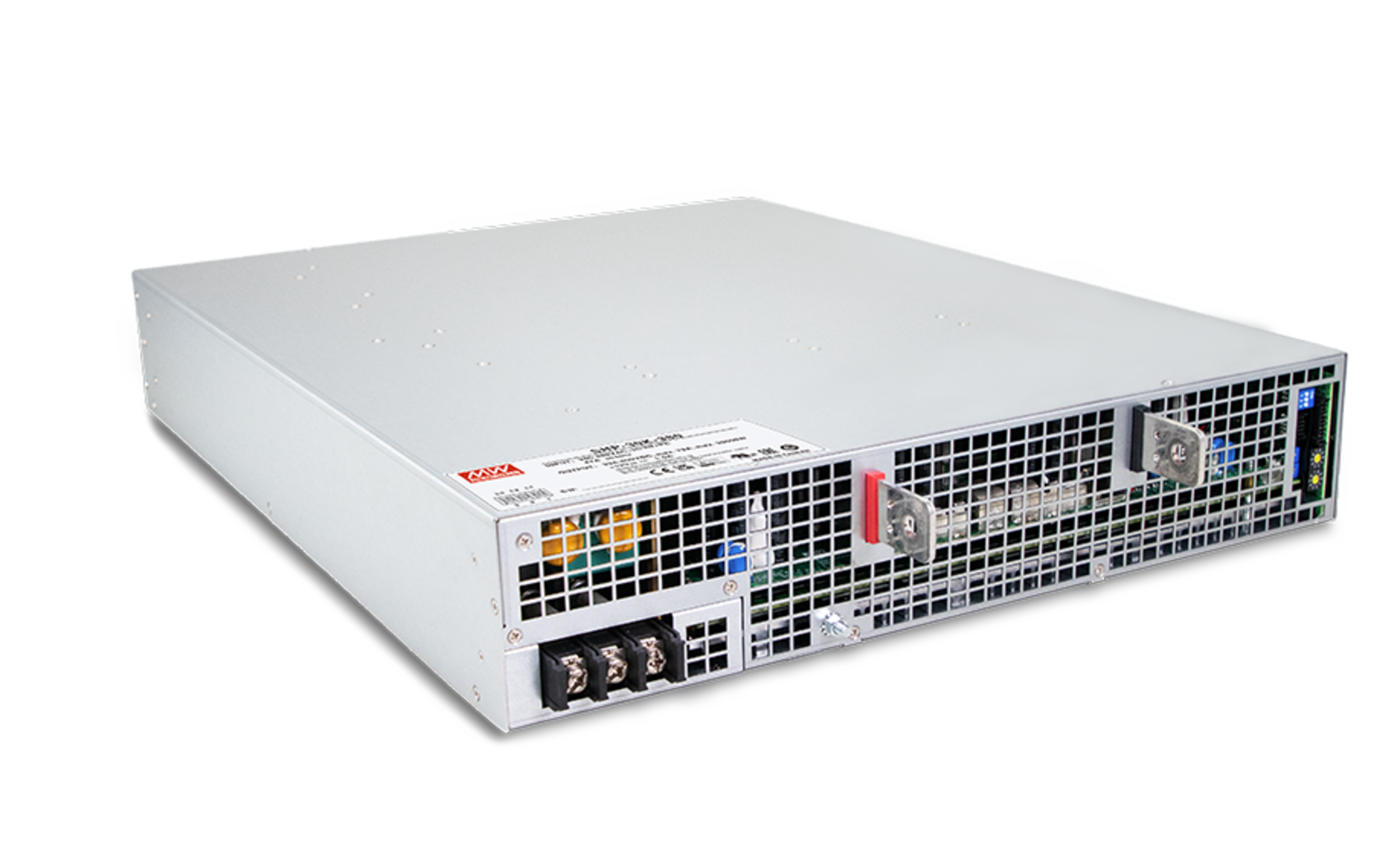

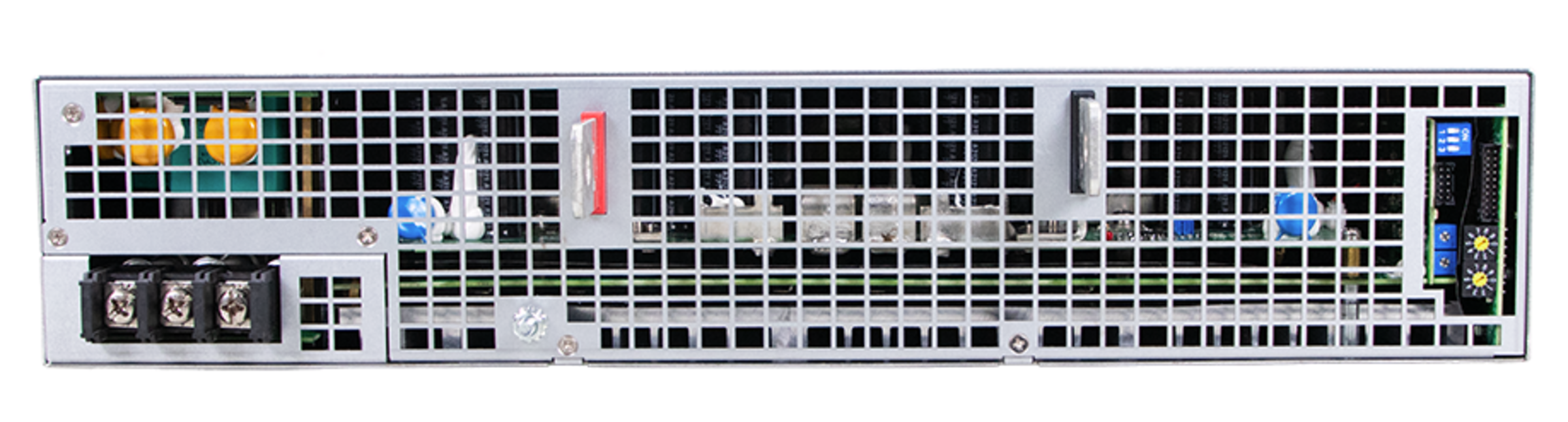

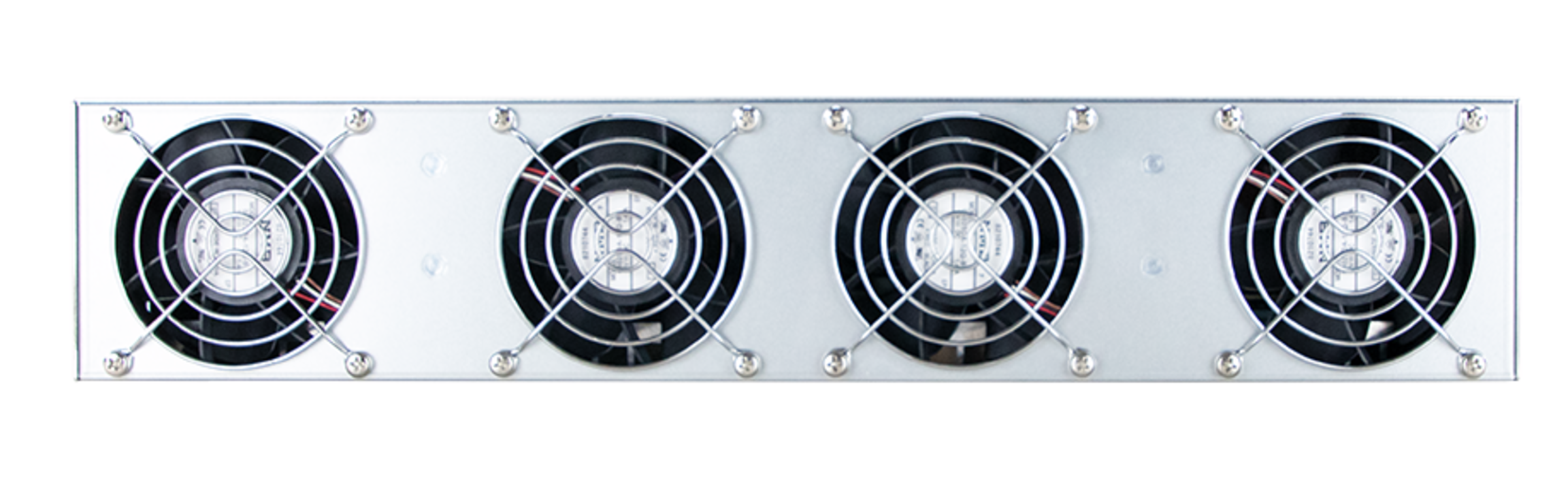

SHP-30K-400CP

MEAN WELL AC/DC industrial power supply unit Enclosed Metal 30.000W 400V 75A CAN bus

SHP-30K-400CPSHP-30K-400CPSHP-30K-400CPSHP-30K-400CP
NEW
Manufacturer Part No.
SHP-30K-400CP
Schukat Part No.
SHP-30K-400CP
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable redundancy modules.
Here you will find suitable surge protection devices.
Here you will find suitable inrush current limiters.
Here you will find suitable EMC & noise suppression components.
Here you will find suitable cables/wires.
Package/Case
Enclosed Metal
Output Power
30,000 W
Output voltage
400 V
Output current
75.000 A
Efficiency
97 %
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • SHP-30K-400CP
Product group
  • L2739
Application
  • ITE
  • Industry
Package/Case
  • Enclosed Metal
Dimension: Length
  • 540 mm
Dimension: Width
  • 424 mm
Dimension: Height
  • 83.5 mm
Weight
  • 23,400 g
Interfaces
  • CAN bus
Manufacturer's warranty (years)
  • 5
Product description
  • The SHP-30K-400CP is a highly efficient 30 kW AC/DC power supply. This series operates over a wide range and does not require a three-phase AC neutral conductor. It can be operated at ambient temperatures of up to 70 °C with forced air cooling. Furthermore, the SHP-30K-400CP series offers great design flexibility thanks to various integrated functions such as output programming, active power distribution, remote on/off control, auxiliary power and communication protocols, which not only meet market requirements but also enhance automation.
Features
  • AC-OK Signal
  • AUX power supply unit
  • Adjustable output voltage
  • DC-OK-Signal
  • Parallel Function
  • Programmable
  • Programmable output current
  • Programmable output voltage
  • Remote Function
Application note
  • These power supplies are considered as a component that has to be installed in a final equipment.
Notice

Operating conditions

MTBF
  • 188,100 h
Operating Temperature Min.
  • -30 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Mains connection/phases
  • III
Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 340 V
Input voltage max. AC
  • 530 V
Input current
  • 39 A
Efficiency
  • 97 %
Power factor correction (PFC)
Power factor
  • 0.98
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 1
Output Power
  • 30,000 W
Output voltage
  • 400 V
Output current
  • 75.000 A
Overload protection
Type of overload protection
  • Constant current limiting with delay shutdown
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Screw Terminal

Safety/Certifications

Isolation voltage I/P-O/P
  • 4,250 V
Isolation voltage I/P-FG
  • 3,000 V
Isolation voltage O/P-FG
  • 3,000 V
Approvals
  • CE
  • CSA
  • EAC
  • EN
  • IEC
  • UKCA
  • UL
Standards (EMC)
  • EN 55032 Class A
  • EN 61204-3
Standards (safety)
  • EN 62368-1
  • IEC 62368-1
  • UL 62368-1
