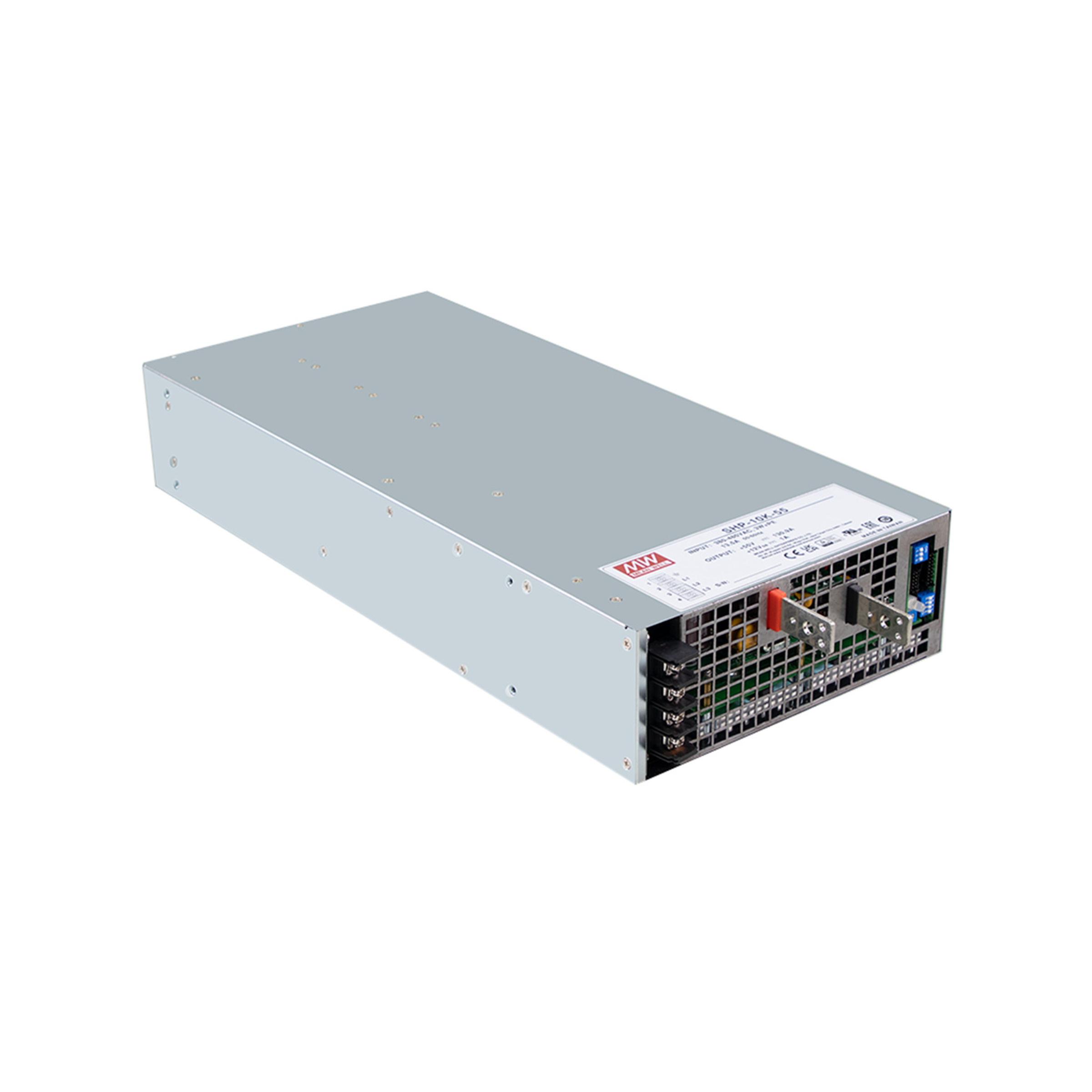

SHP-10K-115-MOD
MEAN WELL AC/DC industrial power supply unit Enclosed Metal 10.000W 115V 87A MOD-Bus RS-485
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
200 Pcs.
200 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 200 or multiple of 200)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Package/Case
- Enclosed Metal
- Output Power
- 10,000 W
- Output voltage
- 115 V
- Output current
- 87.000 A
- Efficiency
- 96 %
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 28,000 h
- Operating expectation
- 50,000 h
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 85 °C
Input
- Mains connection/phases
- III
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 340 V
- Input voltage max. AC
- 530 V
- Input current
- 15.7 A
- Efficiency
- 96 %
- Leakage current, max.
- 6.5 mA
- Inrush current, max.
- 40 A
- Power factor correction (PFC)
- Power factor
- 0.98
- Connection type, input
- Screw Terminal
Output
- Number of outputs
- 1
- Output Power
- 10,000 W
- Output voltage
- 115 V
- Output voltage tolerance
- -1 %
- Ripple & Noise
- 600 mVp-p
- Output current
- 87.000 A
- Overload protection
- Type of overload protection
- Constant Current Limitting With Delay Shutdown
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Screw Terminal
Safety/Certifications
- Protection class
- I
- Isolation voltage I/P-O/P
- 3,750 V
- Isolation voltage I/P-FG
- 2,000 V
- Isolation voltage O/P-FG
- 1,250 V
- Approvals
- CE
- CSA
- EAC
- EN
- IEC
- UKCA
- UL
- Standards (EMC)
- EN 55011 Class A
- EN 55011 Class B
- EN 55032 Class A
- Standards (safety)
- EN 62368-1
- IEC 62368-1
- UL 62368-1
