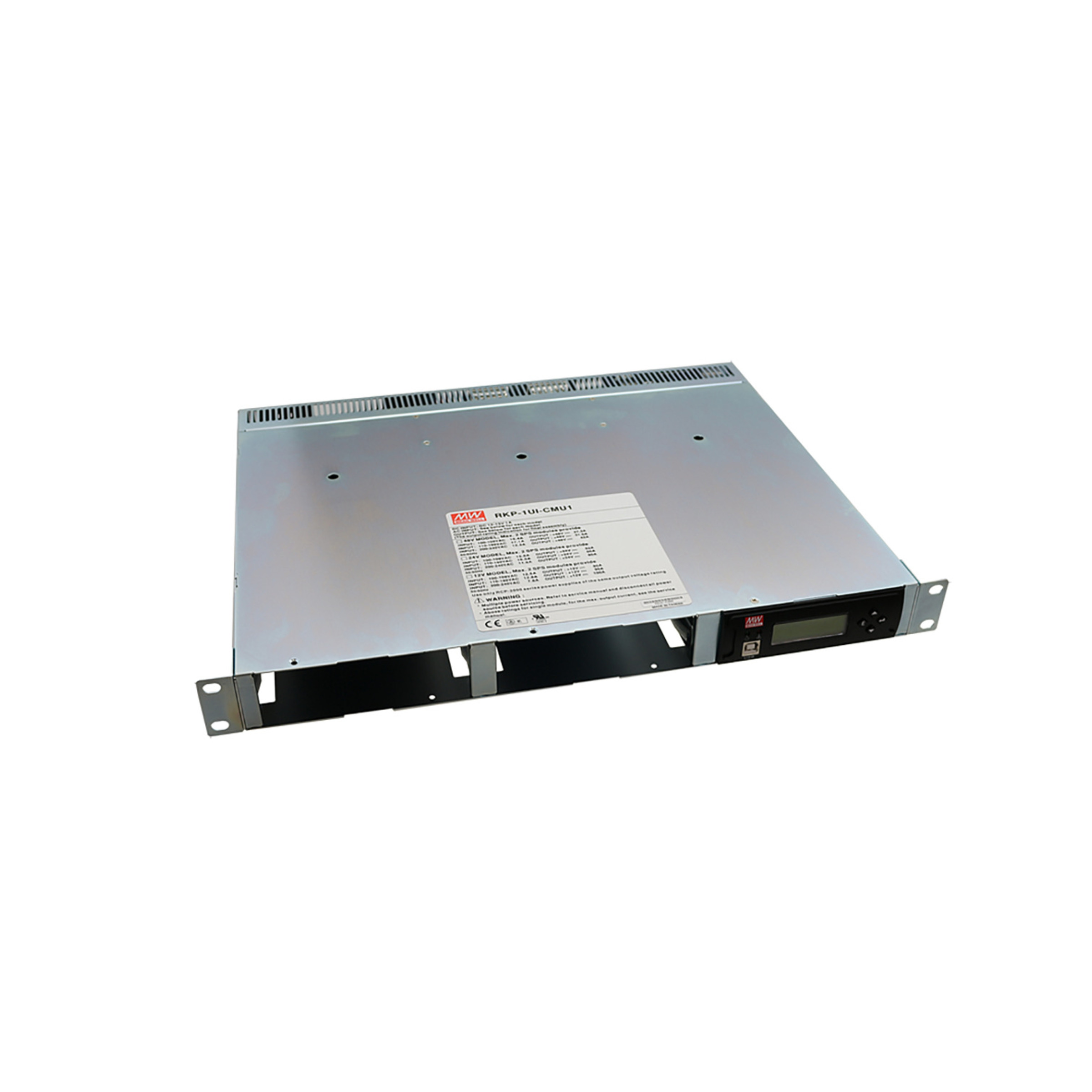

RKP-1UI-CMU1
MEAN WELL AC/DC industrial power supply unit Rack-Chassis Ethernet RS-232 USB PM-Bus
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
5 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Package/Case
- Rack-Chassis
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 110,500 h
- Operating expectation
- 50,000 h
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 85 °C
Input
- Mains connection/phases
- I
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Power factor correction (PFC)
- Connection type, input
- IEC-320 C20
Output
- Number of slots
- 3
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Screw Terminal
Safety/Certifications
- Protection class
- I
- Approvals
- CE
- EAC
- EN
- IEC
- UKCA
- UL
- Standards (EMC)
- EN 55032 Class A
- EN 55032 Class B
- Standards (safety)
- EN 62368-1
- IEC 62368-1
- UL 62368-1
