19 Pcs. in stock
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)

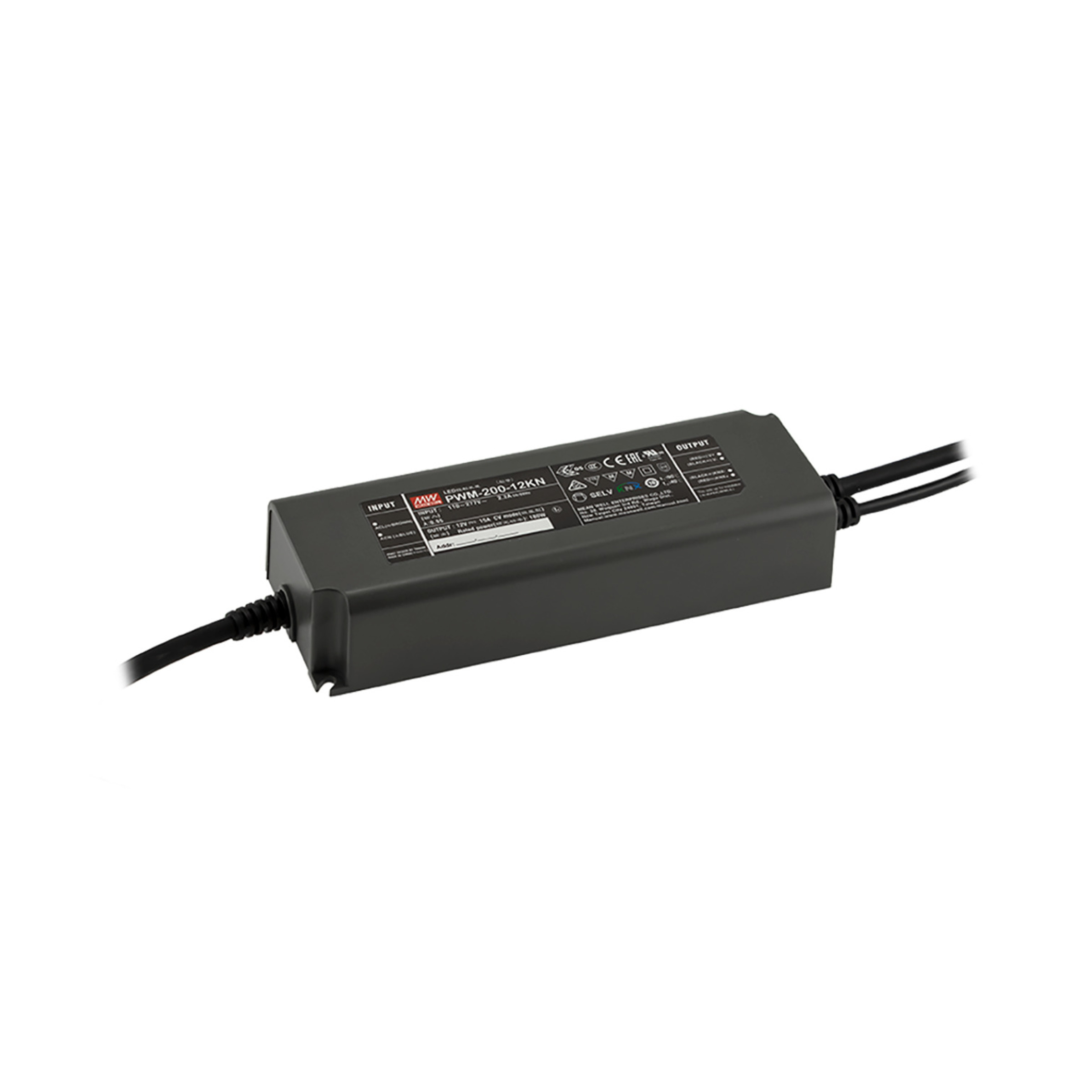

The PWM KN series offers 200W AC/DC LED power supplies that operate in constant-voltage mode with PWM output. The units in this series are capable of maintaining colour temperature and uniform brightness when driving all types of LED strips and constant-voltage LED lamps. The built-in KNX interface eliminates the need for a complex KNX-DALI gateway. The KNX Data Secure function provides protection against tampering in building automation and can be configured within the ETS project. The PWM KN operates with an input voltage of 100–305 VAC and offers models with output voltages ranging from 12 V to 48 V. Thanks to its high efficiency of up to 94% and fanless design, the entire series can operate at enclosure temperatures ranging from –40 °C to +85 °C using natural convection. The minimum dimming value of just 0.01% is suitable for applications requiring low illuminance, e.g. in cinemas. The output frequency is adjustable up to 4 kHz and complies with the requirements of IEEE 1789-2015 and the EU Ecodesign requirements for stroboscopic visibility (SVM).
Features
DC compatible
Emergency Lighting Unit
Flicker Free
Independent Control Gear
Application note
Power supply for operating LED light sources.
These products are not designed for operation in idle mode.
End-of-life electronic equipment is recyclable and must not be disposed of with household waste.
If the device has reached the end of its service life, please dispose of it in accordance with the applicable legal requirements at the collection points of the waste disposal scheme.
Disposal via household waste is prohibited.
