PS-05-24

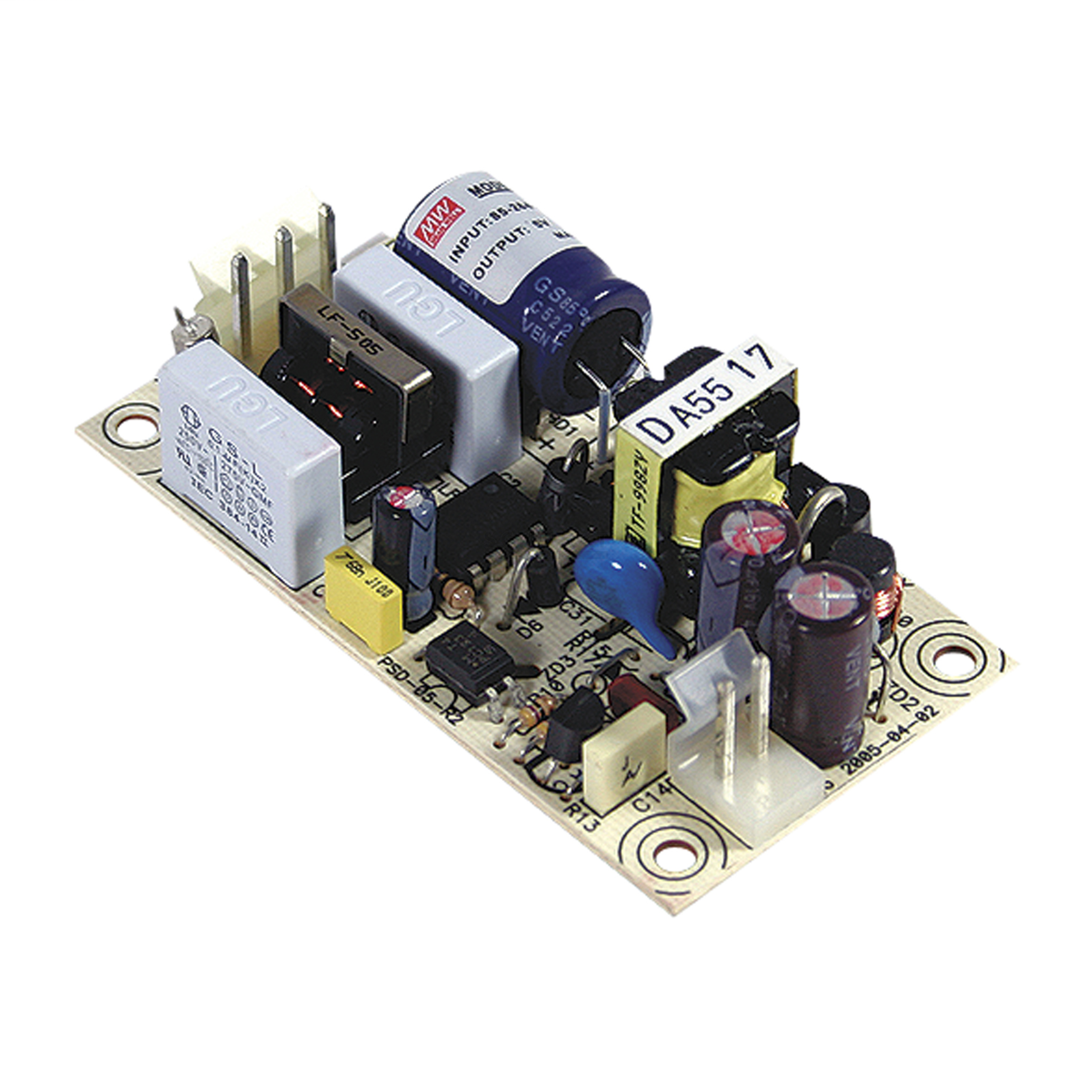

MEAN WELL AC/DC industrial power supply unit Open Frame 5,28W 24V 0,22A

PS-05-24PS-05-24PS-05-24PS-05-24
Manufacturer Part No.
PS-05-24
Schukat Part No.
PS-05-24
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Item no longer available!

Planned delivery time
-
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
LTB 23.06.2025
Article discontinued
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Open Frame
Output Power
5.28 W
Output voltage
24 V
Output current
0.220 A
Efficiency
76 %
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • PS-05
Product group
  • L6609
Application
  • ITE
  • Industry
Package/Case
  • Open Frame

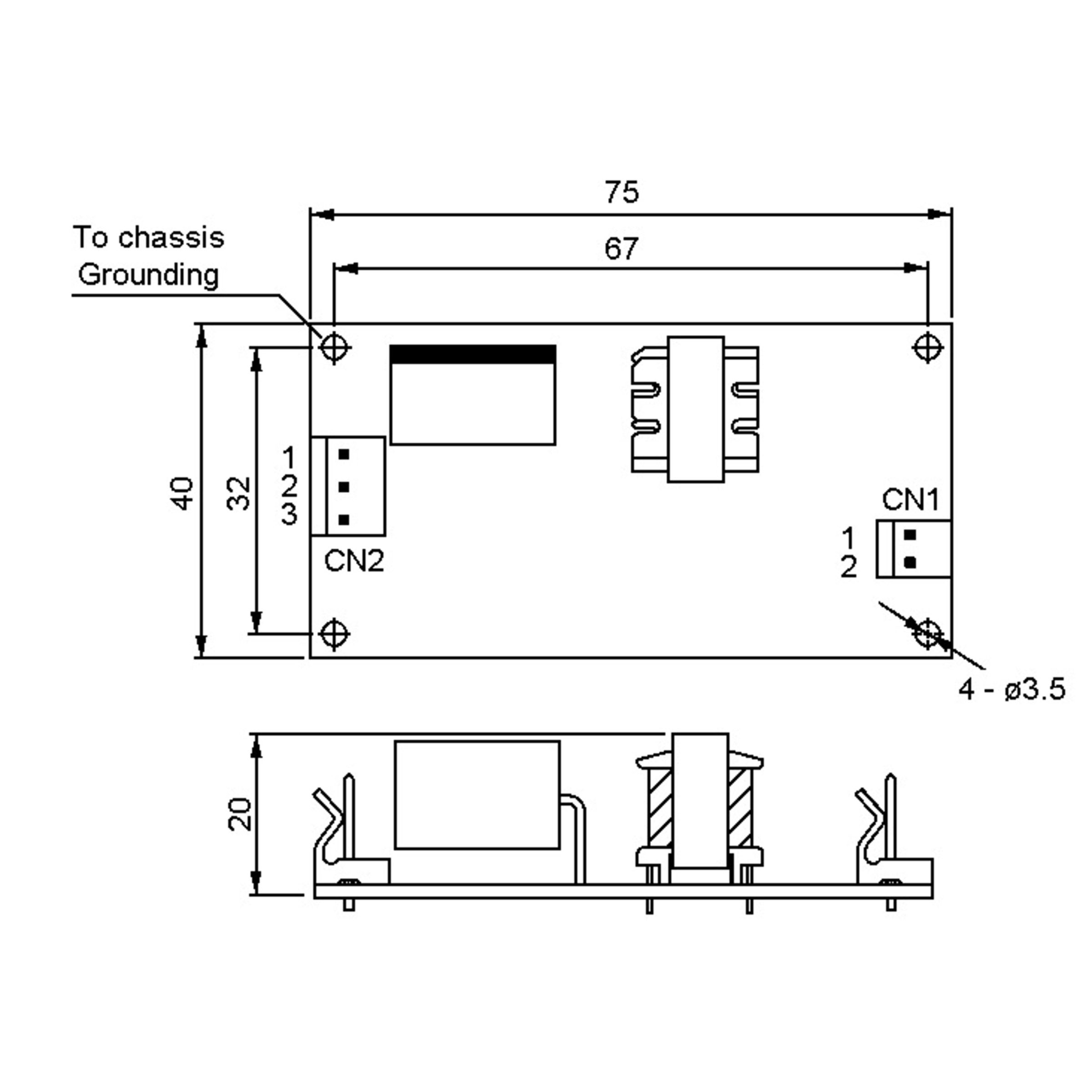

Dimension: Length
  • 75 mm
Dimension: Width
  • 40 mm
Dimension: Height
  • 20 mm
Weight
  • 50 g
Manufacturer's warranty (years)
  • 2
Features
  • DC compatible

Operating conditions

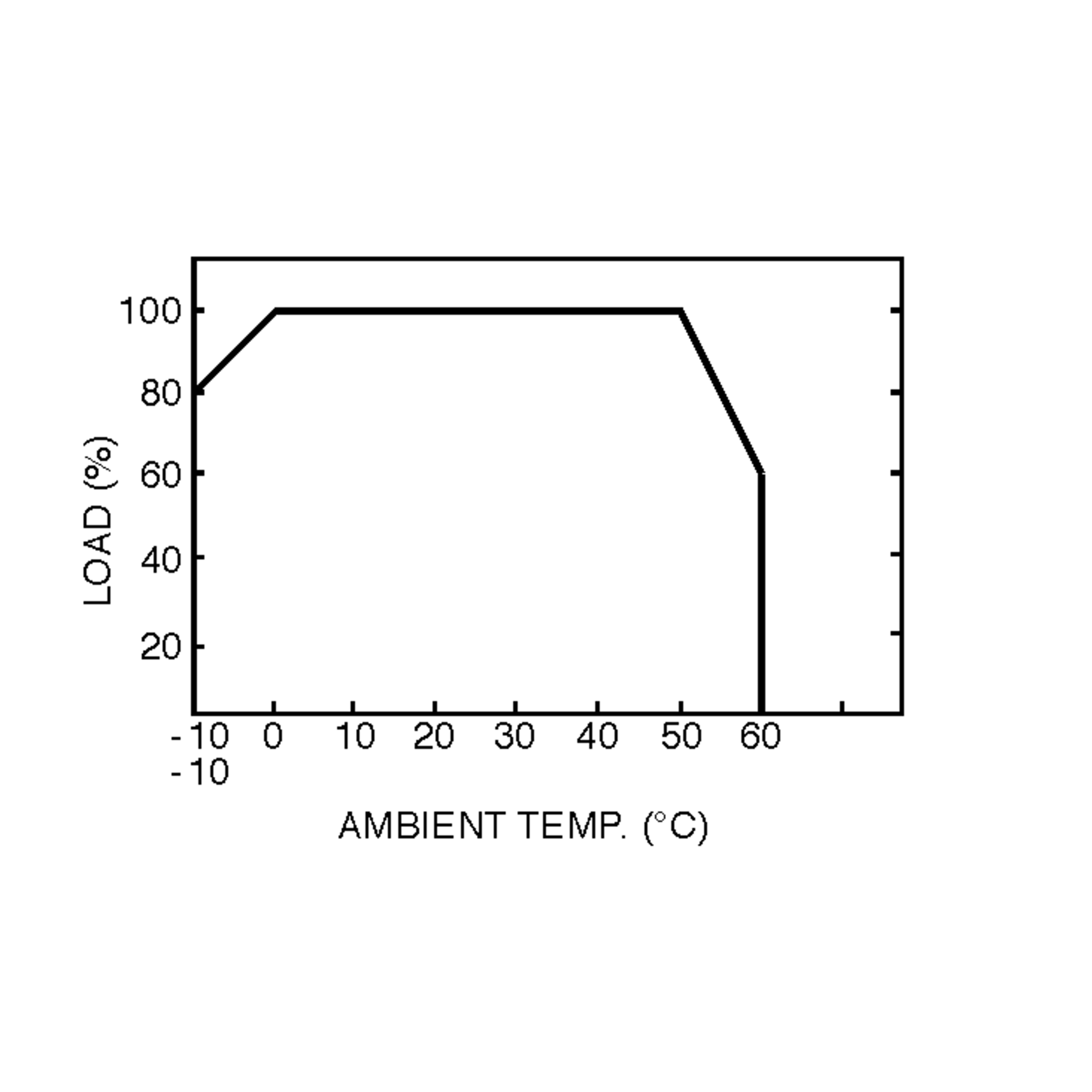

Operating Temperature Min.
  • -10 °C
Operating Temperature Max.
  • 60 °C
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 85 °C

Input

Mains connection/phases
  • I
Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 85 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 120 V
Input voltage max. DC
  • 370 V
Input current
  • 0.07 A
Efficiency
  • 76 %
Leakage current, max.
  • 0.5 mA
Inrush current, max.
  • 30 A
Power factor correction (PFC)
Connection type, input
  • Connector

Output

Number of outputs
  • 1
Output Power
  • 5.28 W
Output voltage
  • 24 V
Output voltage tolerance
  • -2.2 %
Ripple & Noise
  • 200 mVp-p
Output current
  • 0.220 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Connector

Safety/Certifications

Protection class
  • I
Isolation voltage I/P-O/P
  • 3,000 V
Approvals
  • CE
  • EAC
  • EN
  • IEC
  • UKCA
Standards (EMC)
  • EN 55032 Class B
Standards (safety)
  • EN 62368-1
  • IEC 62368-1

Documents

MEAN_WELL_Katalog_Industrie_2026.pdf
Download (pdf, 48.955 KB)
MEAN_WELL_Katalog_LED.pdf
Download (pdf, 53.159 KB)
PCB_GE.pdf
Download (pdf, 883 KB)
