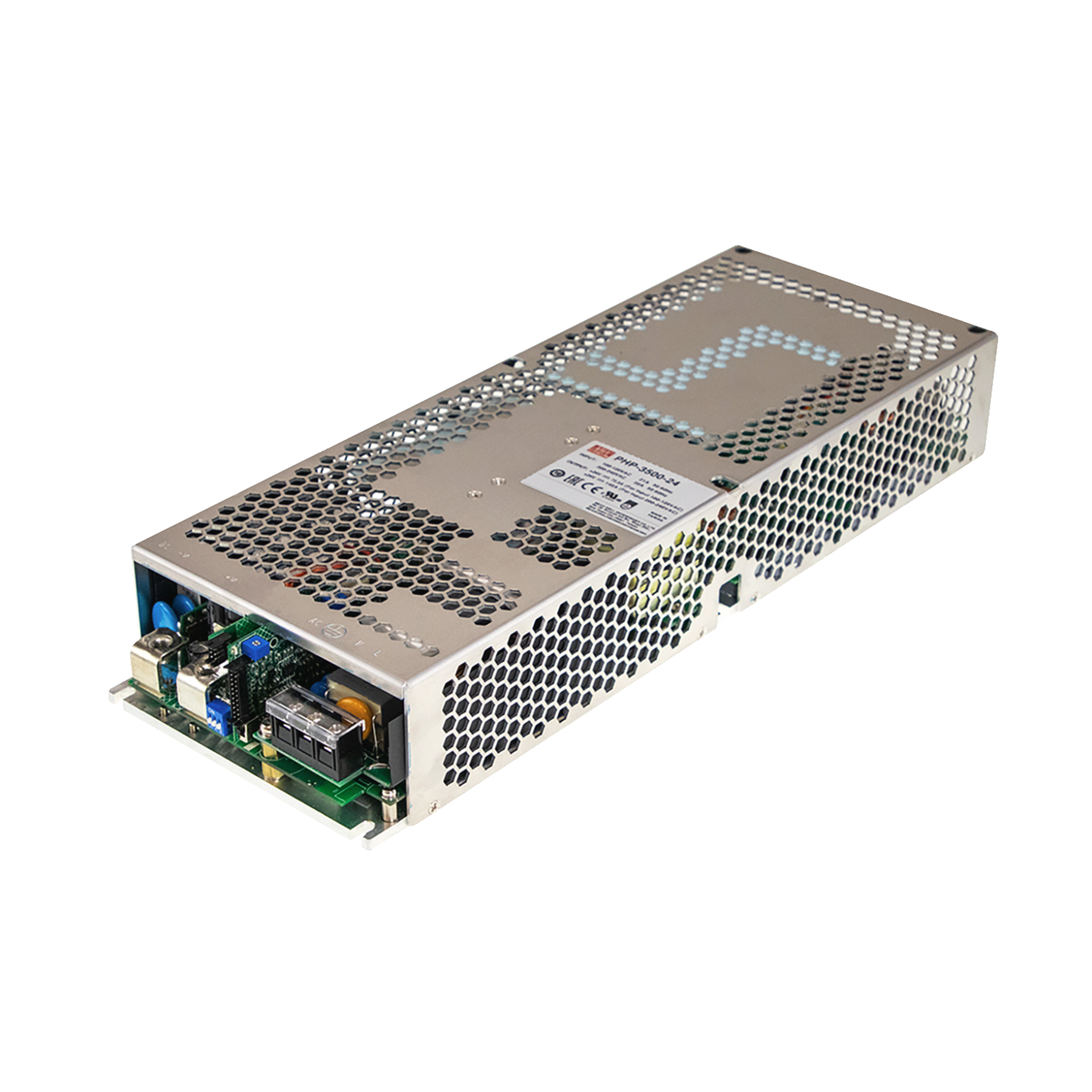

PHP-3500-48

MEAN WELL AC/DC industrial power supply unit Enclosed Metal 3.504W 48V 73,00A CAN-Bus

PHP-3500-48PHP-3500-48PHP-3500-48
Manufacturer Part No.
PHP-3500-48
Schukat Part No.
PHP-3500-48
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

7 Pcs. in stock

Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 4 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Enclosed Metal
Output Power
3,504 W
Output voltage
48 V
Output current
73.000 A
Efficiency
96 %
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • PHP-3500
Product group
  • L2642
Application
  • ITE
  • Industry
Package/Case
  • Enclosed Metal

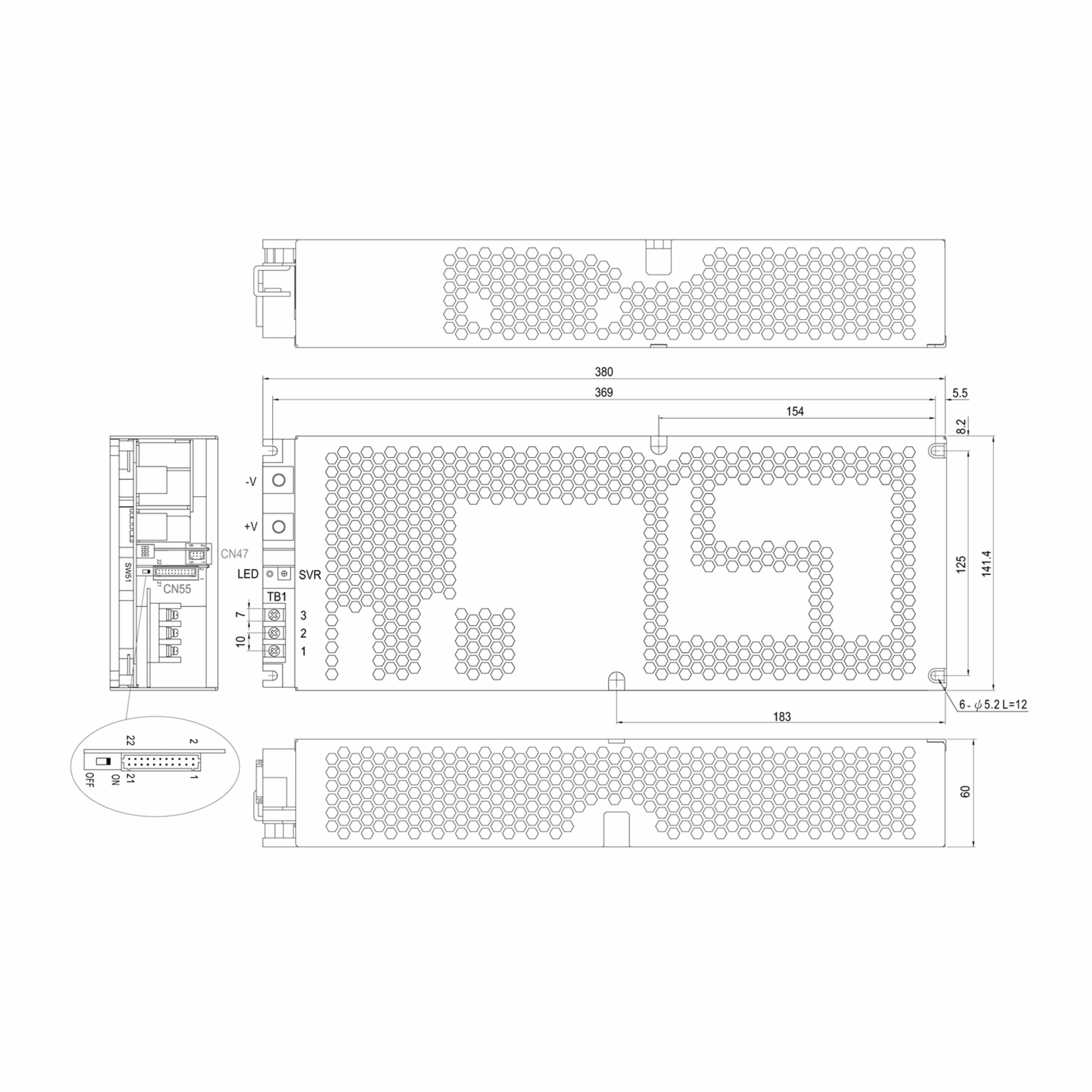

Dimension: Length
  • 380 mm
Dimension: Width
  • 141.4 mm
Dimension: Height
  • 60 mm
Weight
  • 4,500 g
Label
  • TÜV
Interfaces
  • CAN-Bus
Manufacturer's warranty (years)
  • 5
Product description
  • The PHP-3500 series offers 3500W single-output power supplies with a low profile of 60 mm. The entire series is designed for an input voltage range of 90–264 VAC and provides an output voltage of 24 V and 48 V. In addition to high efficiency of up to 96%, the entire series operates from -30°C to +70°C. The PHP-3500 features comprehensive protection functions and 2G vibration resistance; it complies with international safety standards such as TUV BS EN/EN62368-1 and UL62368-1, and the electrical design meets the requirements of BS EN/EN61558-1 and BS EN/EN60335-1. The PHP-3500 series serves as a high-performance power supply solution for various industrial applications.
Features
  • AUX Power Supply
  • Adjustable Output Voltage
  • DC compatible
  • DC-OK-Signal
  • Parallel Function
  • Programmable
  • Programmable Output Current
  • Programmable Output Voltage
  • Remote Function
Application note
  • Optional water cooling. These power supplies are designed for installation in end devices. Equipped with a CAN bus interface for units manufactured on or after February 2026.

Operating conditions

MTBF
  • 183,400 h
Operating expectation
  • 50,000 h
Operating Temperature Min.
  • -30 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Mains connection/phases
  • I
Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 127 V
Input voltage max. DC
  • 370 V
Input current
  • 20 A
Efficiency
  • 96 %
Leakage current, max.
  • 2 mA
Inrush current, max.
  • 80 A
Power factor correction (PFC)
Power factor
  • 0.95
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 1
Output Power
  • 3,504 W
Output voltage
  • 48 V
Output voltage tolerance
  • -1.1 %
Ripple & Noise
  • 480 mVp-p
Output current
  • 73.000 A
Overload protection
Type of overload protection
  • Constant Current Limitting
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Screw Terminal

Safety/Certifications

Protection class
  • I
Isolation voltage I/P-O/P
  • 3,000 V
Isolation voltage I/P-FG
  • 2,000 V
Isolation voltage O/P-FG
  • 1,250 V
Approvals
  • CE
  • EAC
  • EN
  • IEC
  • UKCA
  • UL
Standards (EMC)
  • EN 55032 Class B
Standards (safety)
  • EN 62368-1
  • IEC 62368-1
  • UL 62368-1

Documents

MEAN_WELL_Katalog_Industrie_2026.pdf
Download (pdf, 48.955 KB)
MEAN_WELL_Katalog_LED.pdf
Download (pdf, 53.159 KB)
PCN_2026.01.26_EN.pdf
Download (pdf, 738 KB)
PHP-3500-E.pdf
Download (pdf, 1.417 KB)
