PD-2503

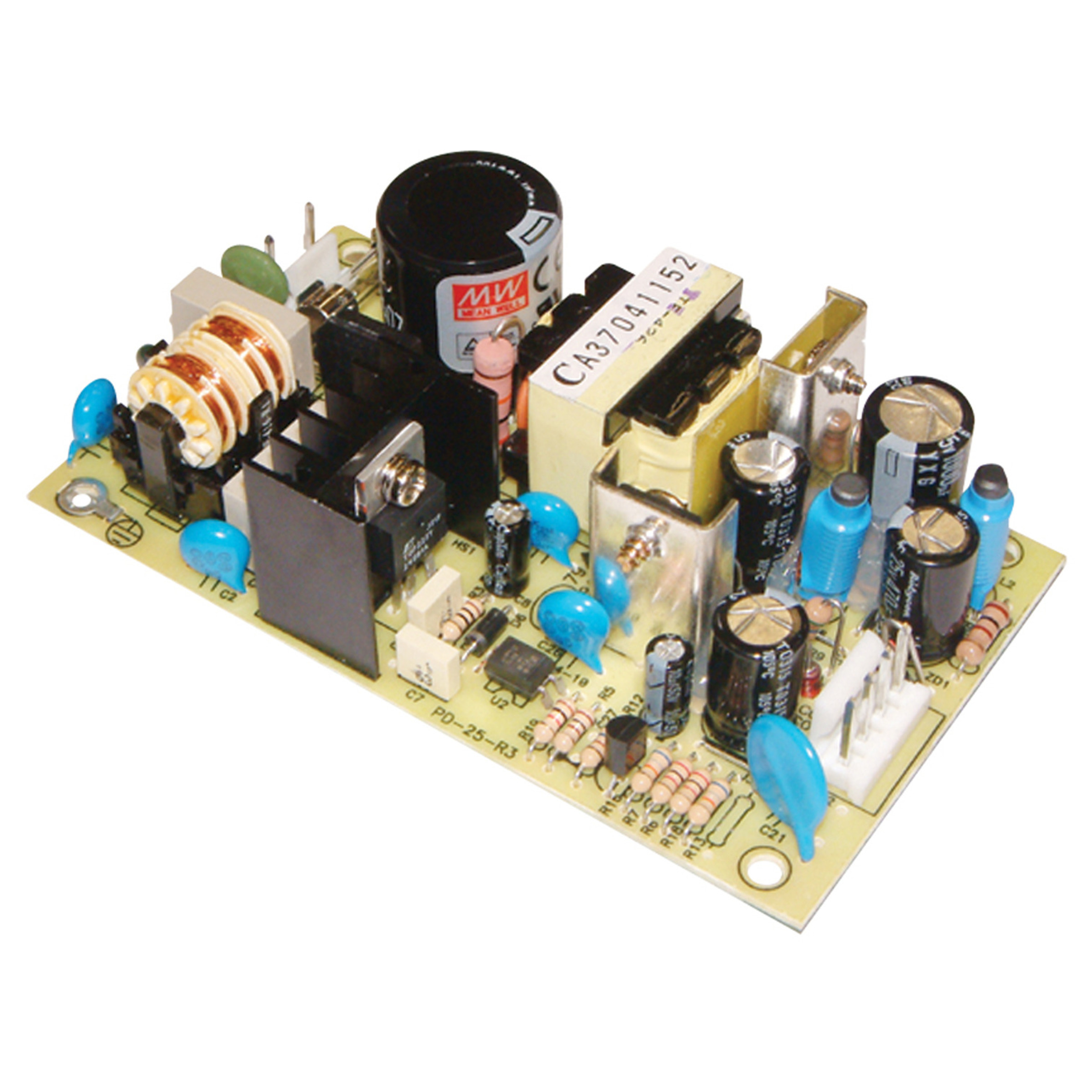

MEAN WELL AC/DC industrial power supply unit Open Frame 24,9W 5V 3A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 31.01.2021
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 96 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Package/Case
- Open Frame
- Output Power
- 24.9 W
- Output voltage
- 5 V
- Output voltage, channel 2
- 3.3 V
- Output current
- 3.000 A
- Output current, channel 2
- 3.000 A
- Efficiency
- 72 %
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 518,000 h
- Operating Temperature Min.
- -10 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 85 °C
Input
- Mains connection/phases
- I
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 85 V
- Input voltage max. AC
- 264 V
- Input voltage min. DC
- 120 V
- Input voltage max. DC
- 370 V
- Input current
- 0.4 A
- Efficiency
- 72 %
- Leakage current, max.
- 0.5 mA
- Inrush current, max.
- 30 A
- Power factor correction (PFC)
- Connection type, input
- Connector
Output
- Number of outputs
- 2
- Output Power
- 24.9 W
- Output voltage
- 5 V
- Output voltage, channel 2
- 3.3 V
- Output voltage tolerance
- -8 %
- Output voltage tolerance, channel 2
- -2 %
- Ripple & Noise
- 50 mVp-p
- Ripple & Noise, Channel 2
- 50 mVp-p
- Output current
- 3.000 A
- Output current, channel 2
- 3.000 A
- Output Current Min.
- 0.100 A
- Output current min., channel 2
- 0.200 A
- Overload protection
- Type of overload protection
- Hiccup
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Connector
Safety/Certifications
- Protection class
- I
- Isolation voltage I/P-O/P
- 3,000 V
- Isolation voltage I/P-FG
- 1,500 V
- Isolation voltage O/P-FG
- 500 V
- Approvals
- CE
- EN
- UL
- Standards (EMC)
- EN 55032 Class B
- Standards (safety)
- EN 60950-1
- UL 60950-1
