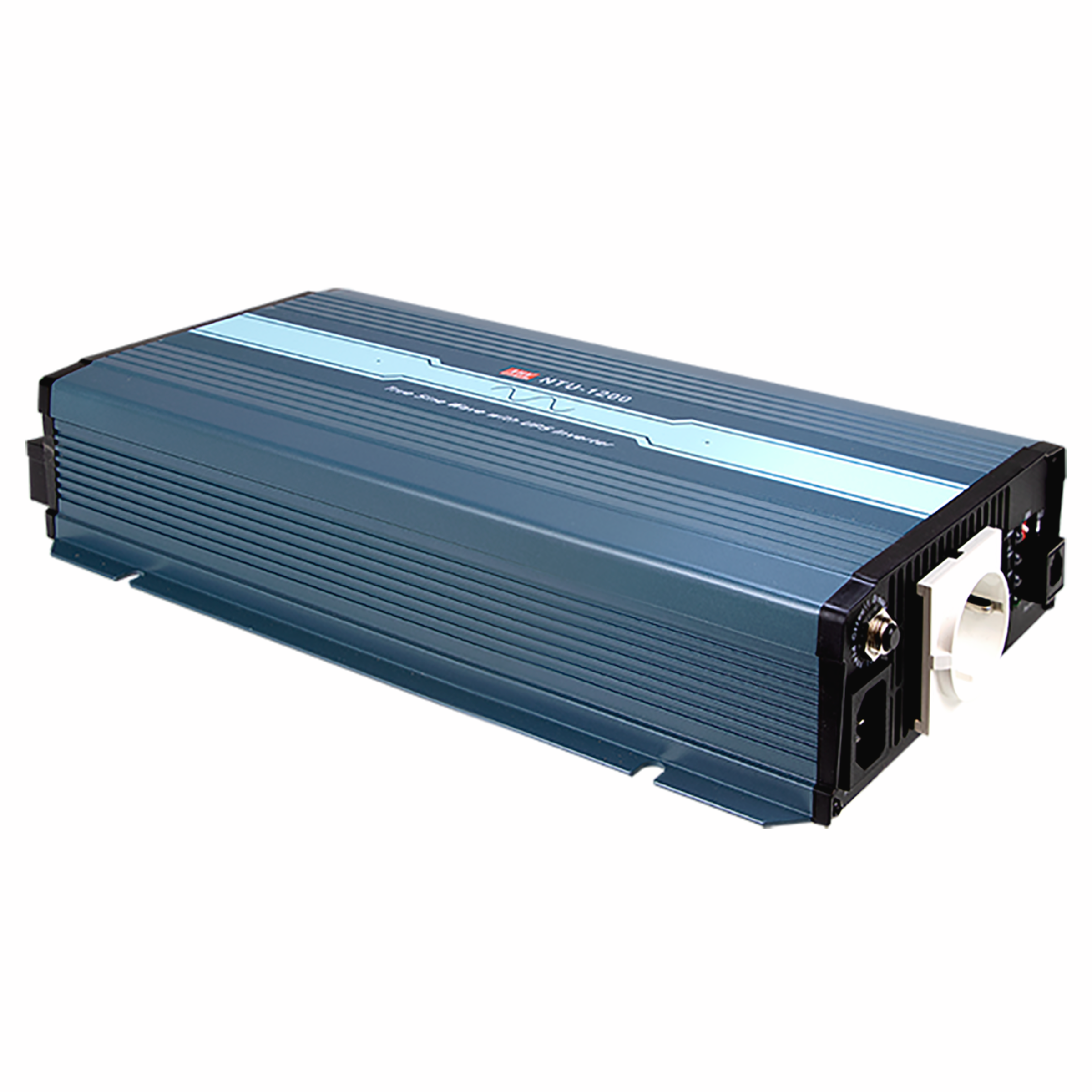

NTU-1200-212EU
MEAN WELL DC/AC inverter true Sine 230V 1.200W
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
6 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Output voltage
- 230 V
- Output Power
- 1,200 W
- Operating mode
- true Sine
- Input voltage min. DC
- 10 V
- Input voltage max. DC
- 16.5 V
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 58,300 h
- Operating expectation
- 30,000 h
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -30 °C
- Storage Temperature Max.
- 70 °C
Input
- Nominal input voltage
- 12 V
- Input voltage min. DC
- 10 V
- Input voltage max. DC
- 16.5 V
- Efficiency
- 90 %
- Connection type, input
- Screw Terminal
- Shutdown at deeply discharged battery
- Alarm at deeply discharged battery
Output
- Output Power
- 1,200 W
- Output voltage
- 230 V
- Output voltage tolerance
- -3 %
- Selectable AC output voltages (V)
- 200/220/230/240
- Overload protection
- Type of overload protection
- Repower On To Recover
- Short-circuit protection
- Overtemperature protection
- Connection type, output
- EU Typ F
- Output frequency (Hz)
- 50
Safety/Certifications
- Isolation voltage I/P-O/P
- 3,000 V
- Isolation voltage O/P-FG
- 1,500 V
- Approvals
- AS/NZ
- CE
- EAC
- EN
- IEC
- UKCA
- Standards (EMC)
- EN 55032 Class A
- Standards (safety)
- EN 62368-1
- IEC 62368-1
