Fact Sheet
Package/Case
Enclosed Metal
Output Power
751.2 W
Output voltage
24 V
Output current
31.300 A
Efficiency
94 %
Medical protection classification
2*MOPP
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
NSP-750
Product group
L2518
Application
Household
ITE
Industry
MSR/Laboratory
Medical
Package/Case
Enclosed Metal
Dimension: Length
199 mm
Dimension: Width
105 mm
Dimension: Height
41 mm
Weight
1,230 g
Label
DEKRA
Manufacturer's warranty (years)
5
Product description

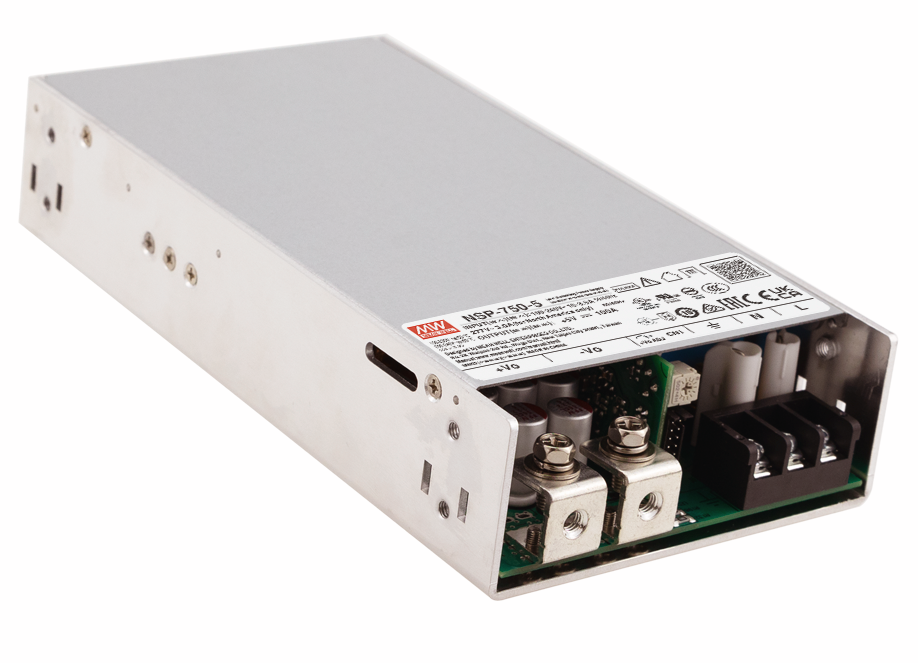

The NSP-750 series is a 750 W AC/DC power supply with PFC function that is designed for high reliability and is suitable for various industries. Key features include: Compact size (199*105*41 mm) for better space utilization in system installations, ultra-wide input range from 85 to 305 VAC for worldwide compatibility, up to 95% efficiency and low standby power consumption (<0.75 W to 1 W depending on model) for energy savings and CO2 reduction, constant current design with 200% peak power, wide operating temperature range from -40 to +85 °C (+60 °C at full load), OVCIII compliance, integrated remote control/remote sense/DC OK signal, PCB coating, complete protective devices, certifications for multiple safety standards including 62368-1, 60601-1, 61558-1, 60335-1, 62477-1, and 61010-1, as well as 2 X MOPP compliance and extremely low leakage current (<350 pA). It is suitable for Class BF medical devices and comes with a 5-year warranty, making it an extremely cost-effective solution for industrial power supply requirements.
