Fact Sheet
Package/Case
Enclosed Metal
Output Power
75.6 W
Output voltage
36 V
Output current
2.100 A
Efficiency
91.5 %
Medical protection classification
2*MOPP
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
NSP-75
Product group
L2318
Application
Household
ITE
Industry
MSR/Laboratory
Medical
Package/Case
Enclosed Metal
Dimension: Length
99 mm
Dimension: Width
97 mm
Dimension: Height
30 mm
Weight
270 g
Label
DEKRA
Manufacturer's warranty (years)
5
Product description

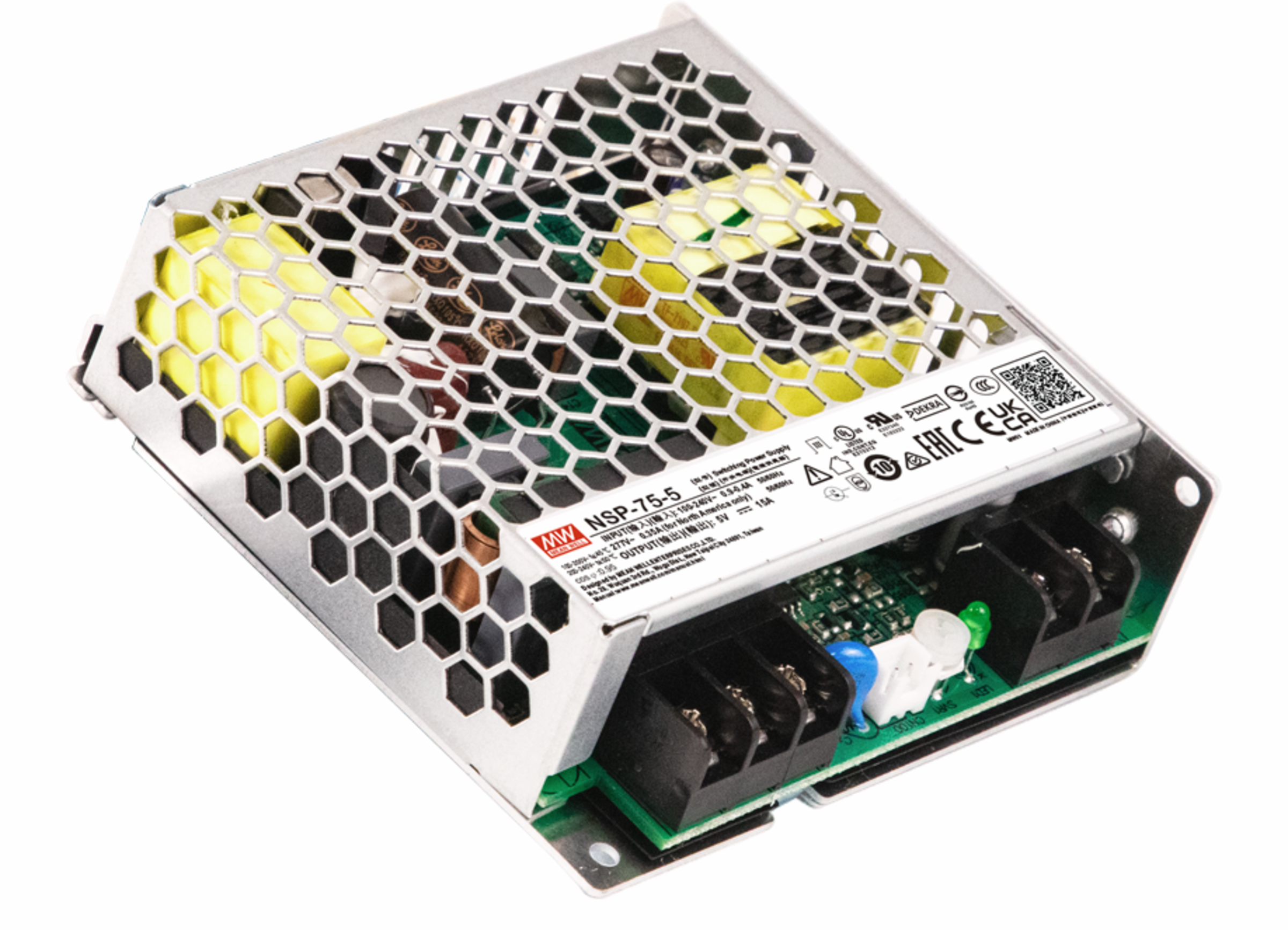

The NSP-75 series is a 75 W AC/DC power supply with PFC function that is designed for high reliability and is suitable for
various industries. Key features include: compact size (99*97*30 mm) for better space utilization in system installations, ultra-wide input range of 85-305 VAC for global compatibility, up to 92% efficiency and low standby power consumption (<0.3 W-0.5 W) for energy savings and CO2 reduction, constant current design with 200% peak capability, fanless design, wide operating temperature range from -40 to +85 °C (+60 °C at full load), OVOIlI compliance, integrated remote control, PCB coating, complete protective devices, certifications for multiple safety standards, including 62368-1, 60601-1, 61558-1, 60335-1, 62477-1, and 61010-1, as well as 2 X MOPP compliance and extremely low leakage current (<350µA). It is suitable for Class BF medical equipment and comes with a 5-year warranty, making it an extremely cost-effective solution for industrial power supply requirements.
