0 Pcs. in stock
Next Stock Receipt
Week 37/2026 30 Pcs.
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Package/Case
Enclosed Metal
Output Power
151.2 W
Output voltage
36 V
Output current
4.200 A
Efficiency
92.5 %
Medical protection classification
2*MOPP
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
NSP-150
Product group
L2359
Application
Household
ITE
Industry
MSR/Laboratory
Medical
Package/Case
Enclosed Metal
Dimension: Length
129 mm
Dimension: Width
97 mm
Dimension: Height
30 mm
Weight
400 g
Label
DEKRA
Manufacturer's warranty (years)
5
Product description

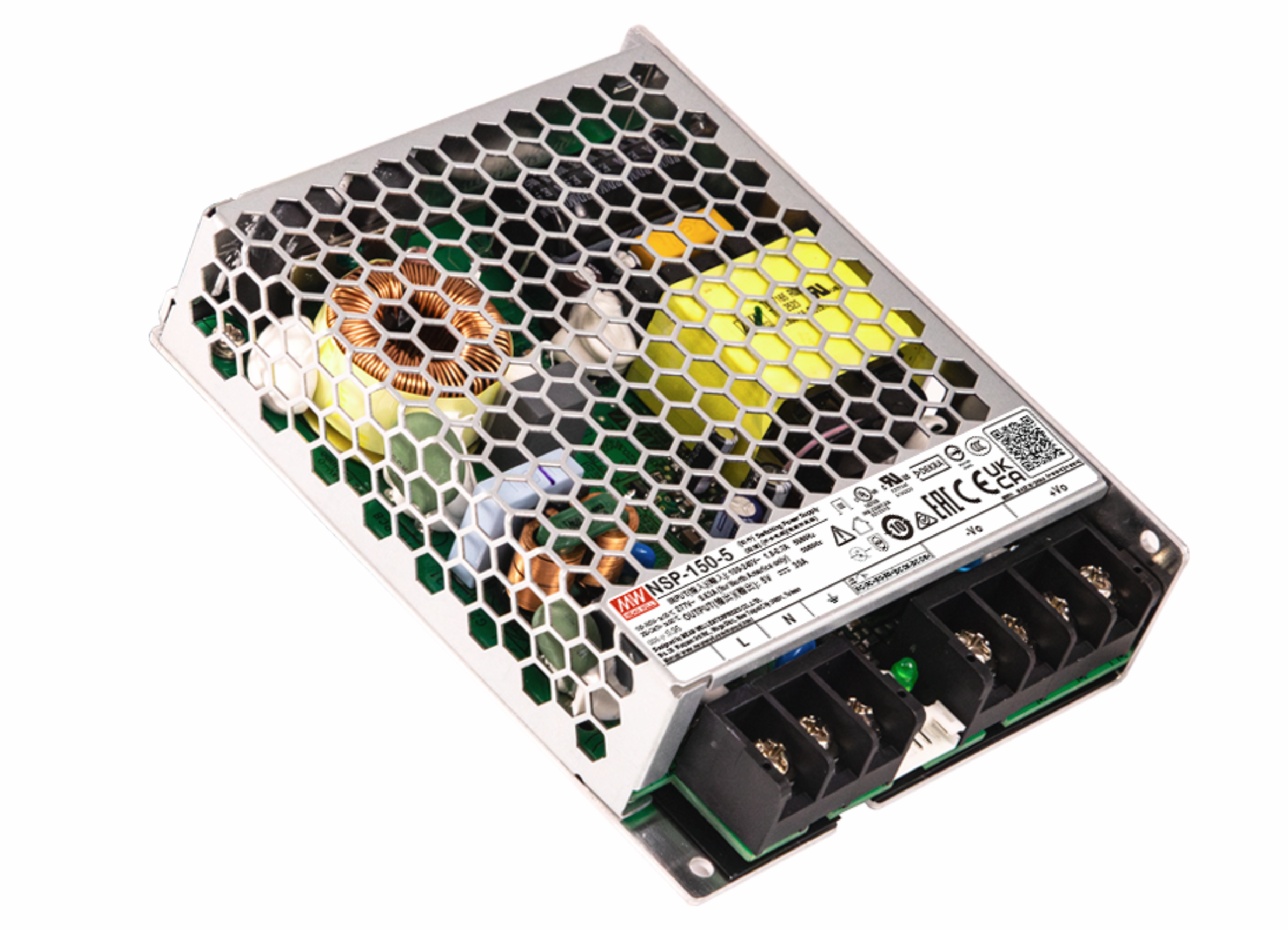

The NSP-150 series is a 150W AC/DC power supply with PFC function that is designed for high reliability and is suitable for
various industries. Key features include: compact size (129*97*30 mm) for better space utilization in system installations,
ultra-wide input range of 85-305 VAC for global compatibility, up to 93% efficiency and low standby power consumption (<0.3 W-0.5 W) for energy savings and CO2 reduction, constant current design with 200% peak capability, fanless design, wide operating temperature range from -40 to +85 °C (+60 °C at full load), OVC III compliance, integrated remote control/remote detection/DC OK signal, internal PCB coating, full protection devices, certifications for multiple safety standards including 62368-1, 60601-1, 61558-1, 60335-1, 62477-1, and 61010-1, as well as 2 X MOPP compliance and extremely low leakage current (<350µA). It is suitable for Class BF medical devices and comes with a 5-year warranty, making it an extremely cost-effective solution for industrial power supply requirements.
