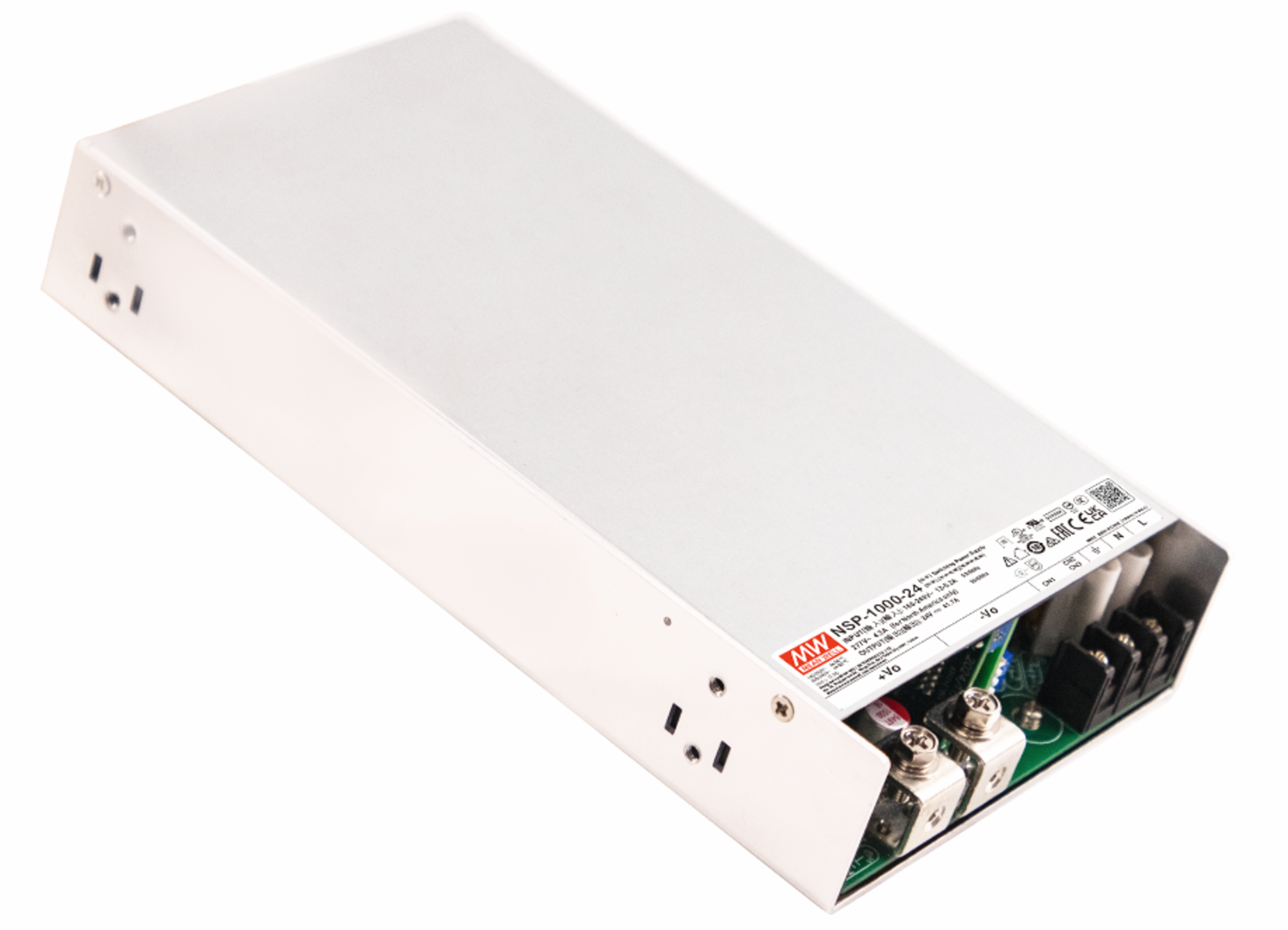

NSP-1000-36MOD

MEAN WELL AC/DC industrial power supply unit Enclosed Metal 1.000,8W 36V 27,8A MOD-Bus 2*MOPP

NSP-1000-36MODNSP-1000-36MOD
NEW
Manufacturer Part No.
NSP-1000-36MOD
Schukat Part No.
NSP-1000-36MOD
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 9 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable redundancy modules.
Here you will find suitable surge protection devices.
Here you will find suitable inrush current limiters.
Here you will find suitable EMC & interference suppression components.
Here you will find suitable Unassembled cables.
Package/Case
Enclosed Metal
Output Power
1,000.8 W
Output voltage
36 V
Output current
27.800 A
Efficiency
93.5 %
Medical protection classification
2*MOPP
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • NSP-1000
Product group
  • L2540
Application
  • Household
  • ITE
  • Industry
  • MSR/Laboratory
  • Medical
Package/Case
  • Enclosed Metal
Dimension: Length
  • 230 mm
Dimension: Width
  • 127 mm
Dimension: Height
  • 41 mm
Weight
  • 1,400 g
Label
  • DEKRA
Interfaces
  • MOD-Bus
Manufacturer's warranty (years)
  • 5
Product description
  • The NSP-1000 series is a 1000-W AC/DC power supply from MEAN WELL with PFC functionality, designed for high reliability and suitable for a wide range of industries. Key features include: compact dimensions (230 × 127 × 41 mm) for better space utilization in system installations, an extremely wide input voltage range of 85 to 305 V for global compatibility, up to 94% efficiency for energy savings and CO₂ reduction, programmable output voltage (0–120%) and current (0–100%), constant-current design with 200% peak power, parallel output capacity up to 4000 W, wide operating temperature range from -40 to +85 °C (+60 °C at full load), Compliance with OVCIII, integrated remote control / remote sense / DC-OK signal / auxiliary power supply, internal PCB coating, comprehensive protective features, certifications for numerous safety standards including 62368-1, 60601-1, 61558-1, 60335-1, 62477-1, and 61010-1, as well as 2-fold MOPP compliance and extremely low leakage current (<350 pA). It is suitable for medical devices in protection class BF and comes with a 5-year warranty, making it an extremely cost-effective solution for industrial power supply requirements.
Features
  • AUX Power Supply
  • Adjustable Output Voltage
  • DC compatible
  • DC-OK-Signal
  • Parallel Function
  • Peak Power
  • Programmable
  • Programmable Output Current
  • Programmable Output Voltage
  • Remote Function
  • Remote Sense
Application note
  • These power supplies are intended for installation in end devices.
Notice

Operating conditions

MTBF
  • 910,800 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Mains connection/phases
  • I
Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 85 V
Input voltage max. AC
  • 305 V
Input voltage min. DC
  • 120 V
Input voltage max. DC
  • 431 V
Input current
  • 6 A
Efficiency
  • 93.5 %
Leakage current, max.
  • 0.35 mA
Inrush current, max.
  • 40 A
Power factor correction (PFC)
Power factor
  • 0.95
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 1
Output Power
  • 1,000.8 W
Output voltage
  • 36 V
Output voltage tolerance
  • -1.1 %
Ripple & Noise
  • 300 mVp-p
Output current
  • 27.800 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Screw Terminal

Safety/Certifications

Protection class
  • I
Isolation voltage I/P-O/P
  • 4,000 V
Isolation voltage I/P-FG
  • 2,000 V
Isolation voltage O/P-FG
  • 1,500 V
Overvoltage category
  • 3
Approvals
  • BSMI
  • CCC
  • CE
  • EAC
  • EN
  • IEC
  • RCM
  • UKCA
  • UL
Standards (EMC)
  • EN 55011 Class B
  • EN 55014
  • EN 55032 Class B
Standards (safety)
  • ANSI/AAMI ES 60601-1
  • EN 60335-1
  • EN 60601-1
  • EN 61010-1
  • EN 61558-1
  • EN 61558-2-16
  • EN 62368-1
  • IEC 60335-1
  • IEC 60601-1
  • IEC 61010-1
  • IEC 61558-1
  • IEC 61558-2-16
  • IEC 62368-1
  • UL 61010-1
  • UL 62368-1
Medical protection classification
  • 2*MOPP

Documents

Enclosed_Type_GE.pdf
Download (pdf, 973 KB)
MEAN_WELL_Katalog_Industrie_2026.pdf
Download (pdf, 48.955 KB)
MEAN_WELL_Katalog_LED.pdf
Download (pdf, 53.159 KB)
