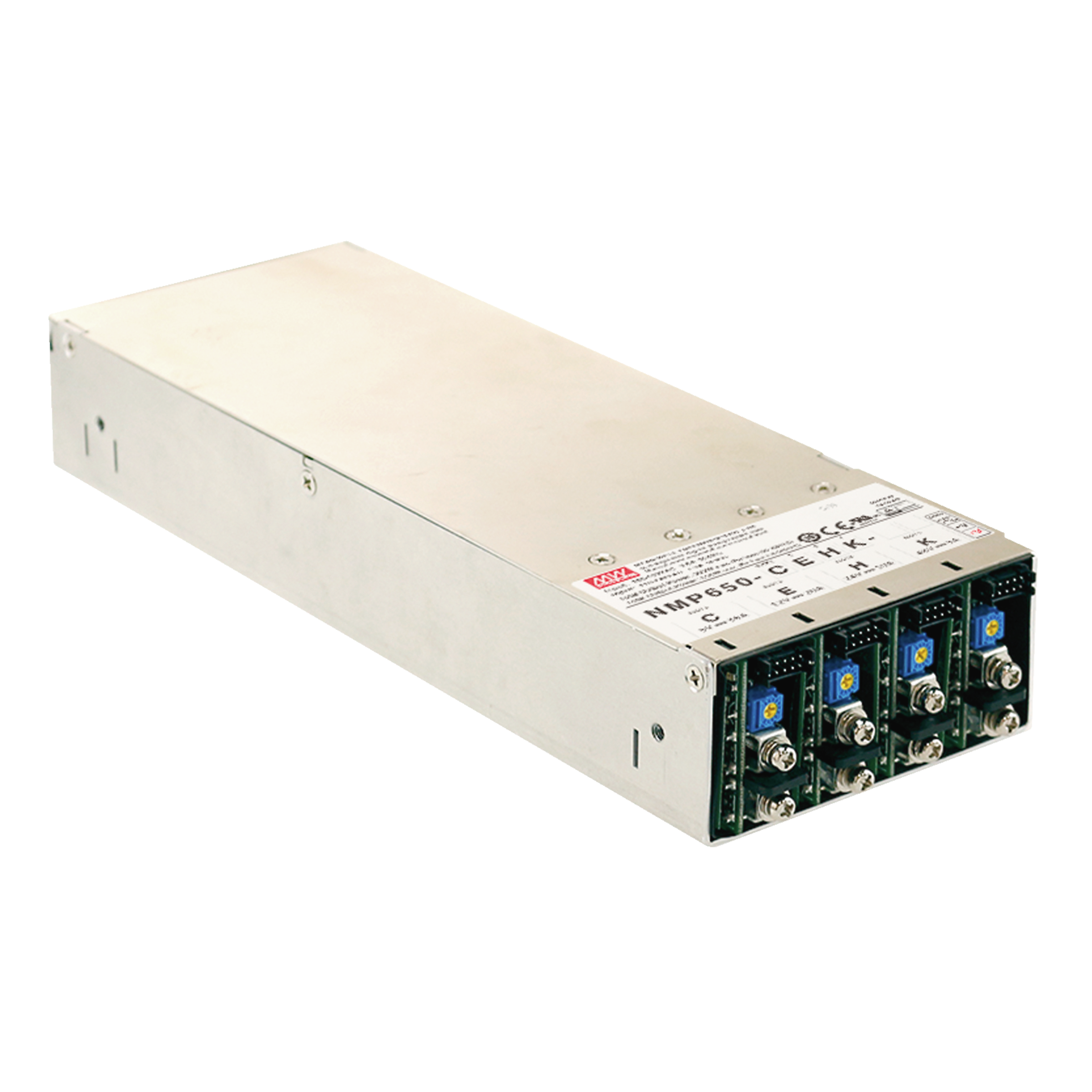

NMP650

MEAN WELL AC/DC industrial power supply unit Modular 650W 2*MOPP

NMP650NMP650
Manufacturer Part No.
NMP650
Schukat Part No.
NMP650
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Next Stock Receipt
Week 34/2026
3 Pcs.
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 9 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable surge protection devices.
Here you will find suitable EMC & noise suppression components.
Package/Case
Modular
Output Power
650 W
Efficiency
88.5 %
Medical protection classification
2*MOPP
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • NMP
Product group
  • L7950
Application
  • ITE
  • Industry
  • Medical
Package/Case
  • Modular
Dimension: Length
  • 250 mm
Dimension: Width
  • 89 mm
Dimension: Height
  • 41 mm
Weight
  • 1,450 g
Label
  • TÜV
Manufacturer's warranty (years)
  • 5
Features
  • DC compatible
  • DT8
Application note
  • The components of the NMP series enable the creation of a customisable, multi-channel AC/DC power supply. Additional accessories are required when the individual modules are connected in series or in parallel. The modular system is assembled by the manufacturer to the customer’s specifications and supplied as a finished unit. However, the NMP650 and NMP1K2 front-ends, the NMS-240-xx DC/DC output modules and the necessary accessories are available individually for urgent sample assemblies or prototypes in industrial or medical applications, as well as for in-house assembly. Once the components have been assembled, the customer may need to affix a device label depending on the intended use; see the example label opposite. Please note: Power supplies which, due to their design, are intended as components for installation in electrical installations or systems, must only be installed by qualified personnel (in accordance with relevant standards, e.g. IEC 60364, VDE 0100, VDE 0105)! For requirements exceeding sample quantities, we recommend purchasing units pre-assembled by the manufacturer.
Notice

Operating conditions

Operating expectation
  • 50,000 h
Operating Temperature Min.
  • -30 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Mains connection/phases
  • I
Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 120 V
Input voltage max. DC
  • 370 V
Input current
  • 3.5 A
Efficiency
  • 88.5 %
Leakage current, max.
  • 0.4 mA
Inrush current, max.
  • 40 A
Power factor correction (PFC)
Power factor
  • 0.95
Connection type, input
  • Screw Terminal

Output

Number of slots
  • 4
Output Power
  • 650 W
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Screw Terminal

Safety/Certifications

Protection class
  • I
Isolation voltage I/P-O/P
  • 4,000 V
Isolation voltage I/P-FG
  • 2,000 V
Isolation voltage O/P-FG
  • 500 V
Approvals
  • CE
  • EAC
  • EN
  • IEC
  • UKCA
  • UL
Standards (EMC)
  • EN 55032 Class B
  • EN 60601-1-2
Standards (safety)
  • ANSI/AAMI ES 60601-1
  • EN 62368-1
  • IEC 60601-1
  • UL 62368-1
Medical protection classification
  • 2*MOPP
