22 Pcs. in stock
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Package/Case
Wall Mount Power Supply
Output Power
18 W
Output voltage
15 V
Output current
1.200 A
Efficiency
87 %
Medical protection classification
2*MOPP
Connection type, output
5,5*2,1mm Barrel Plug
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
NGE18
Product group
L7264
Application
Household
ITE
Industry
Medical
Package/Case
Wall Mount Power Supply
Dimension: Length
48 mm
Dimension: Width
28 mm
Dimension: Height
55 mm
Weight
112 g
Label
DEKRA; FCC
Manufacturer's warranty (years)
3
Product description

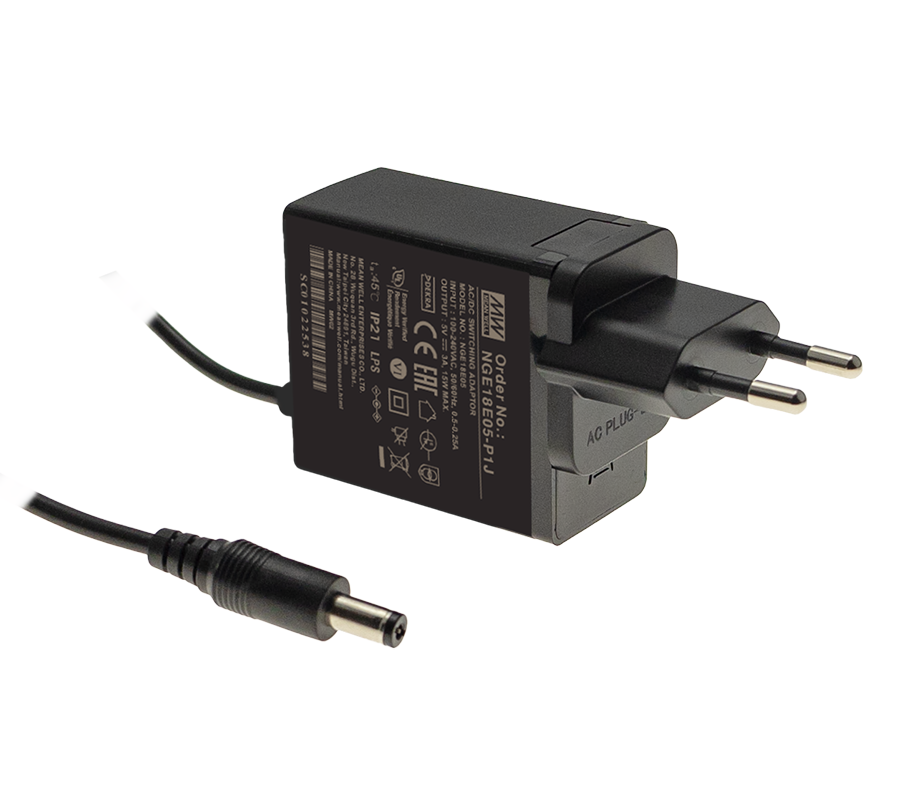

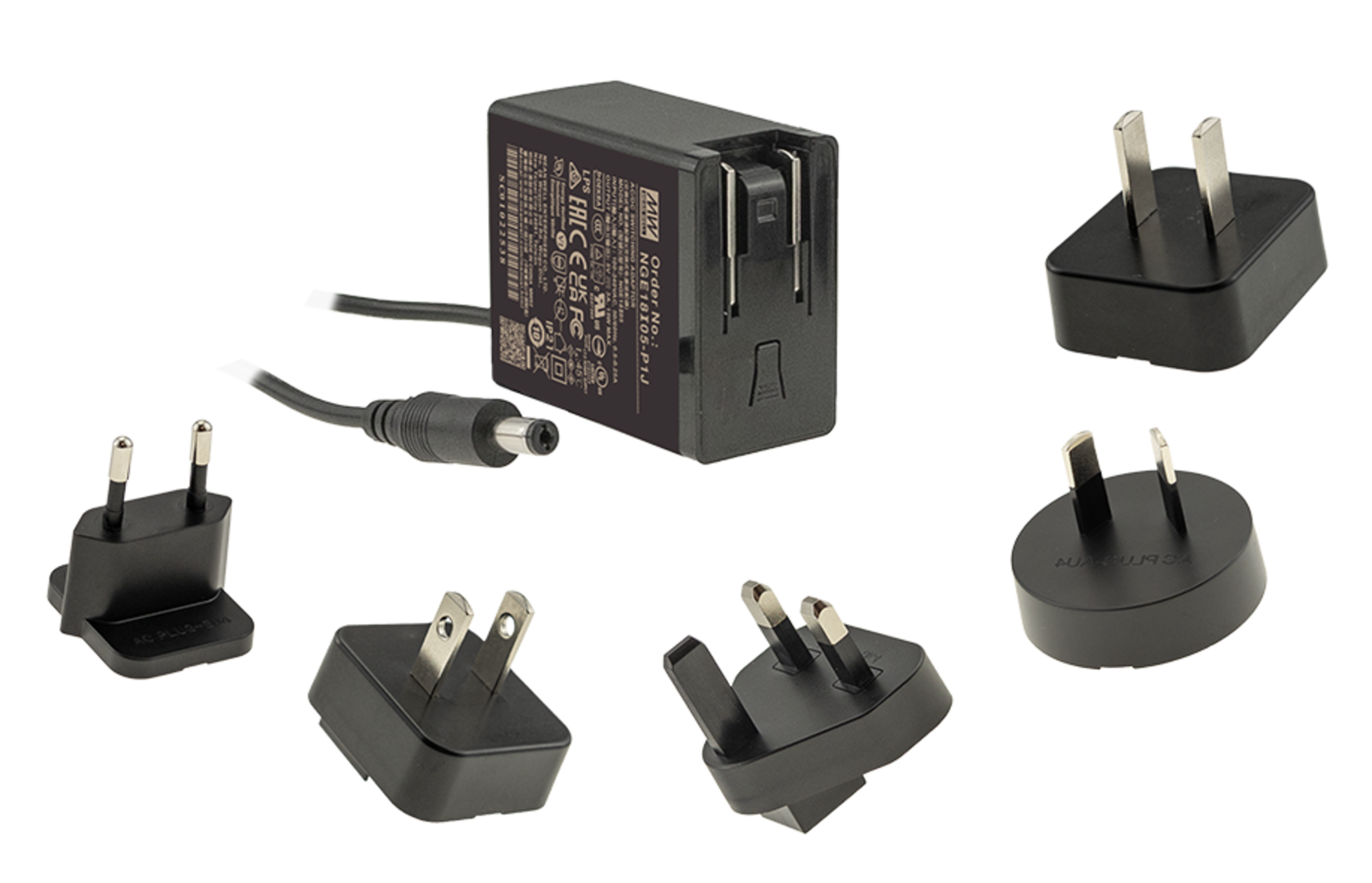

NGE18 is a very reliable, 18W wall-mounted green adapter with an output that is compact and convenient to carry. This product is equipped with 5 types of interchangeable AC plugs (Europe, USA, UK, Australia and China), which makes it very suitable for traveling use. The NGE18 is a Class II (no FG) power supply that accepts an input range of 80VAC to 264VAC, which can meet the requirements of various electrical appliances. With an operating efficiency of up to 88% and an extremely low power consumption of less than 0.075W at no load, the NGE18 complies with the latest energy regulations of the USA (EISA 2007/DoE), Canada (NRCan), Australia and New Zealand (MEPS), the EU (ErP) and CoC version 5. The outstanding function enables the adapter to save energy when it is either in operating or standby mode. The entire series is approved for ITE, medical household and industrial appliance safety regulations; in addition, the 94V-0 flame retardant plastic housing is used, which effectively protects users from electrical hazards.
Features
DC compatible
LPS
Application note
AC interchangeable plugs must be ordered separately.
