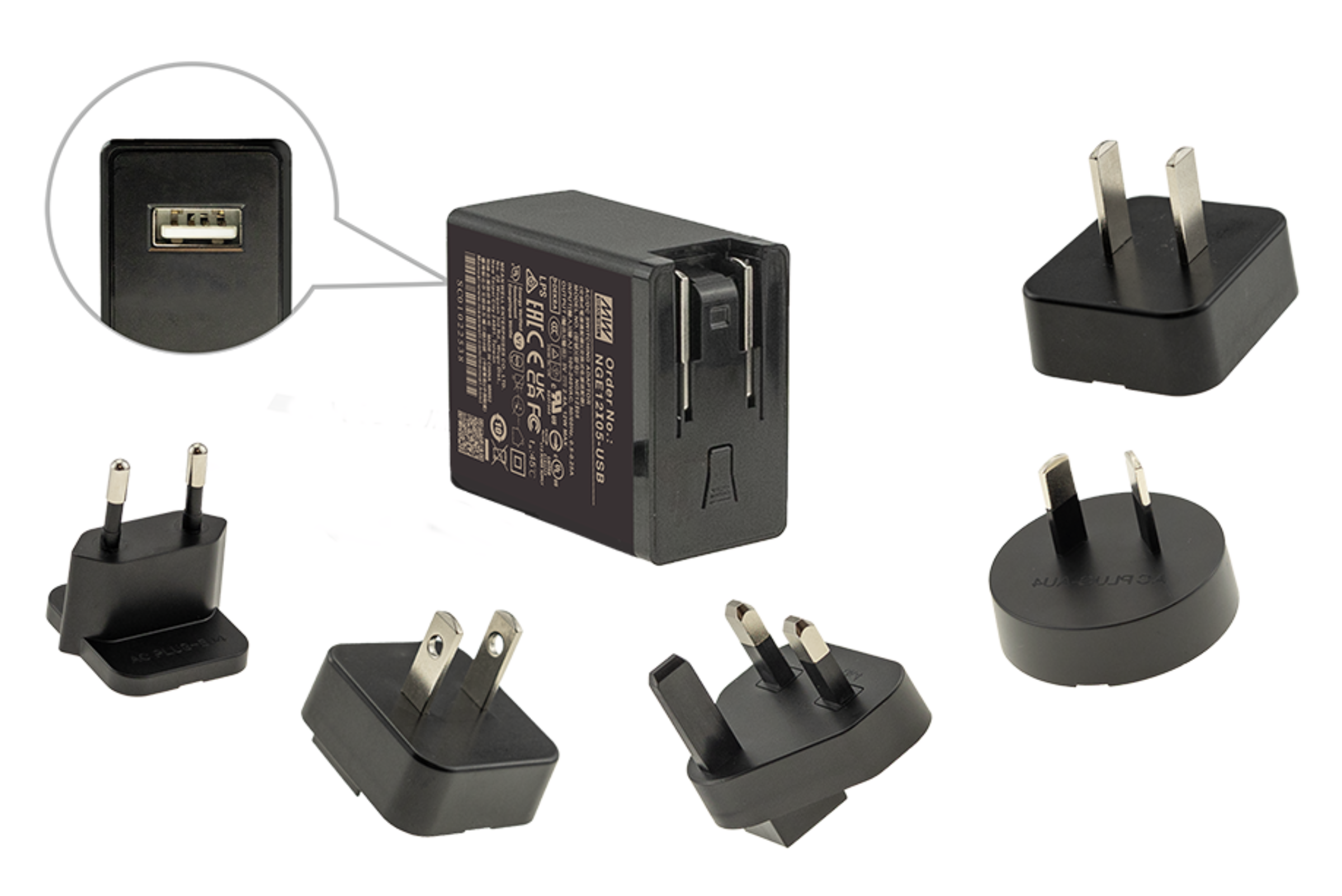

NGE12I05-USB

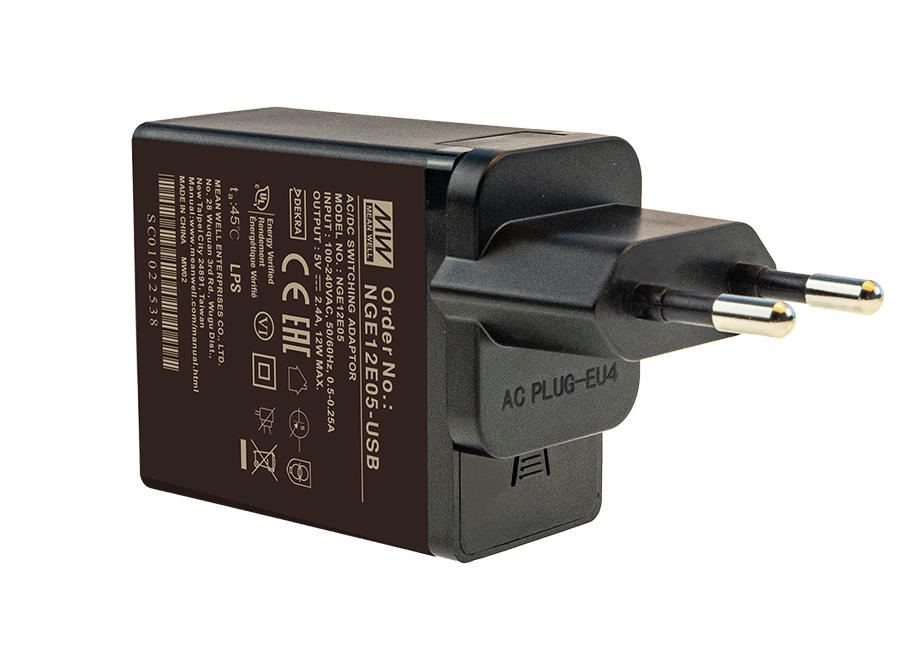

MEAN WELL Wall Mount Power Supply 12W 5V 2,4A USB-A
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
66 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 150 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Package/Case
- Wall Mount Power Supply
- Output Power
- 12 W
- Output voltage
- 5 V
- Output current
- 2.400 A
- Efficiency
- 82 %
- Medical protection classification
- 2*MOPP
- Connection type, output
- USB-A
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 1,272,800 h
- Operating expectation
- 30,000 h
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 85 °C
Input
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 80 V
- Input voltage max. AC
- 264 V
- Input voltage min. DC
- 113 V
- Input voltage max. DC
- 370 V
- Input current
- 0.25 A
- Efficiency
- 82 %
- Efficiency (at 10% load)
- 73.5 %
- Average efficiency
- 86 %
- No load power, less than
- 0.075 W
- Leakage current, max.
- 0.1 mA
- Inrush current, max.
- 80 A
- Power factor correction (PFC)
- Connection type, input
- Plug Adapter
Output
- Number of outputs
- 1
- Output Power
- 12 W
- Output voltage
- 5 V
- Selectable output voltage
- Output voltage tolerance
- -5 %
- Ripple & Noise
- 60 mVp-p
- Output current
- 2.400 A
- Overload protection
- Type of overload protection
- Hiccup
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- USB-A
Safety/Certifications
- Protection class
- II
- Protection Class IP
- IP21
- Isolation voltage I/P-O/P
- 4,000 V
- Energy level
- (EU) 2019/1782 + Level VI
- Approvals
- AS/NZ
- BSMI
- CCC
- CE
- CSA
- EAC
- IEC
- PSE
- RCM
- UKCA
- UL
- Standards (EMC)
- EN 55011 Class B
- EN 55032 Class B
- Standards (safety)
- ANSI/AAMI ES 60601-1
- EN 60335-1
- EN 60601-1
- EN 61558-1
- EN 61558-2-16
- EN 62368-1
- IEC 60335-1
- IEC 60601-1
- IEC 61558-1
- IEC 61558-2-16
- IEC 62368-1
- UL 62368-1
- Medical protection classification
- 2*MOPP
