Fact Sheet
Package/Case
Rack-Module
Output Power
3,206.5 W
Output voltage
380 V
Output current
8.400 A
Efficiency
94 %
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
NCP-3200
Product group
L2610
Application
ITE
Industry
Package/Case
Rack-Module
Dimension: Length
325.8 mm
Dimension: Width
107 mm
Dimension: Height
41 mm
Weight
2,300 g
Interfaces
CAN-Bus
Manufacturer's warranty (years)
5
Product description

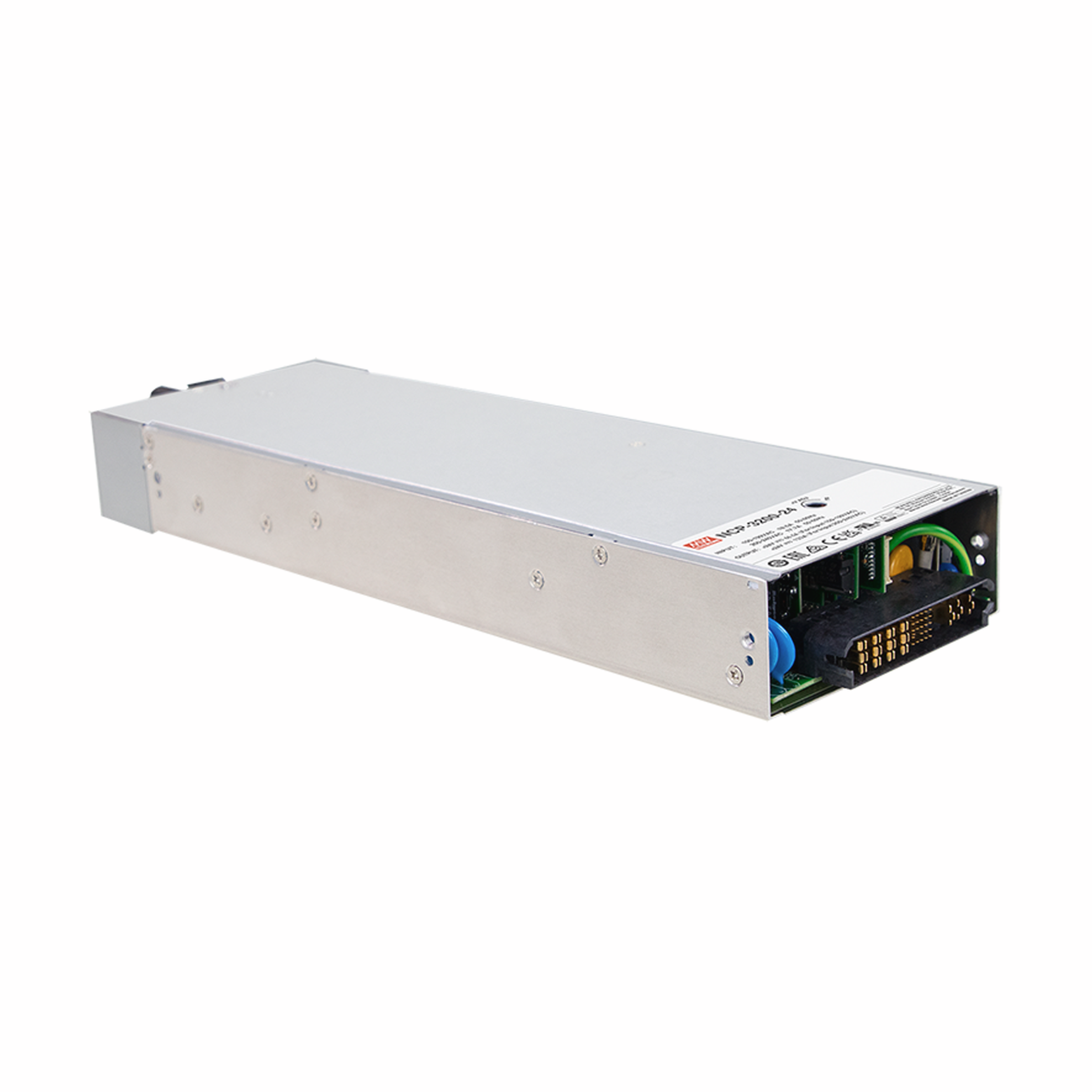

NCP-3200 is a 3.2KW dual-purpose(Switching Power Supply & Charger) rack-mounted AC/DC power supply with 1U low profile design and high power density up to 37W/inch. This series operates at 90~264VAC input voltage and offers the models with the DC output mostly demanded by the industry. Each model is cooled by the built-in DC fan with fan speed control and working for the temperature up to 70°C. NCP-3200 provides vast design flexibility by equipping with PMBus and CANbus, two international communication protocols which can be selected for industrial control and power supply control, and can also be used directly with intelligent controller CMU2. Active current sharing up to 10 rack shelves (DHP-1UT-B) and the maximum power supply that can be connected in parallel is 40 units, remote ON/OFF control, auxiliary power, alarm signal, and others.
Features
AC-OK Signal
AUX Power Supply
Adjustable Output Current
DC compatible
DC-OK-Signal
Hot Swap Capable
Parallel Function
Programmable
Programmable Output Current
Programmable Output Voltage
Remote Function
Remote Sense
Application note
These power supply units are intended for installation in terminal equipment.
