LPC-100-1400

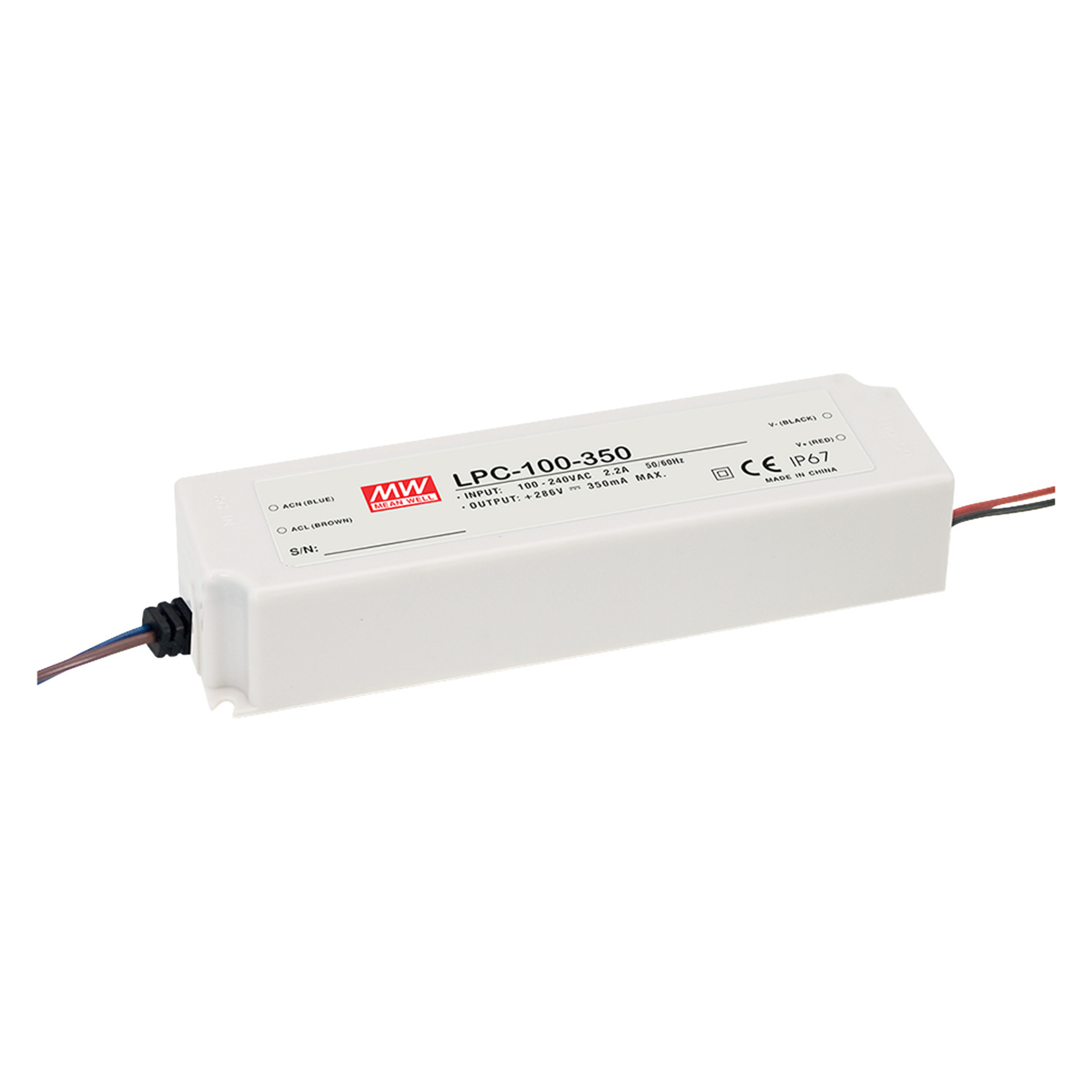

MEAN WELL AC/DC LED power supply unit CC 100,8W 1,400A IP67 not dimmable

LPC-100-1400LPC-100-1400LPC-100-1400LPC-100-1400
Manufacturer Part No.
LPC-100-1400
Schukat Part No.
LPC-100-1400
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

19 Pcs. in stock

Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable surge protection devices.
Here you will find suitable inrush current limiters.
Here you will find suitable EMC & interference suppression components.
Here you will find suitable connection terminals.
Here you will find suitable cable lugs.
Operating mode
CC
Output Power
100.8 W
Output current
1.400 A
Output Voltage Min.
36 V
Output Voltage Max.
72 V
Protection Class IP
IP67
Interfaces
not dimmable
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • LPC-100
Product group
  • L5889
Application
  • ITE
  • Industry
Operating mode
  • CC
Package/Case
  • Enclosed Plastic

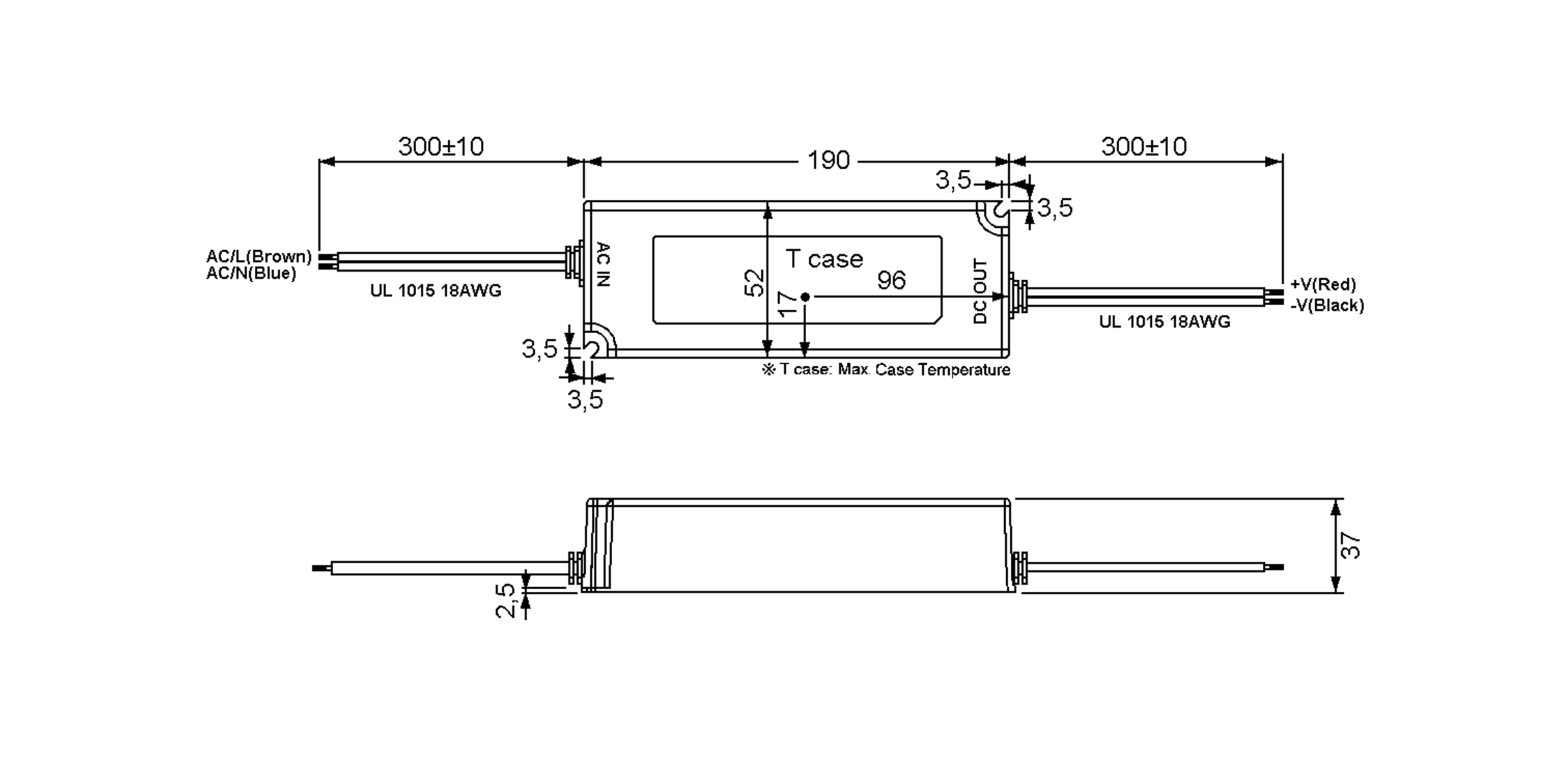

Dimension: Length
  • 190 mm
Dimension: Width
  • 52 mm
Dimension: Height
  • 37 mm
Weight
  • 610 g
Dimmable
Interfaces
  • not dimmable
Manufacturer's warranty (years)
  • 2
Features
  • DC compatible
Application note
  • Power supply for operating LED light sources. For installation only in equipment whose primary purpose is other than lighting, e.g. photocopiers, overhead and slide projectors, or for scale and display lighting. These products are NOT intended for lighting applications within the European Economic Area. End-of-life electronic equipment is recyclable and must not be disposed of with household waste. When the appliance reaches the end of its service life, dispose of it in accordance with the applicable legal provisions at the collection points of the waste disposal system. Disposal via household waste is prohibited.
Notice

Operating conditions

MTBF
  • 511,000 h
Operating expectation
  • 20,000 h

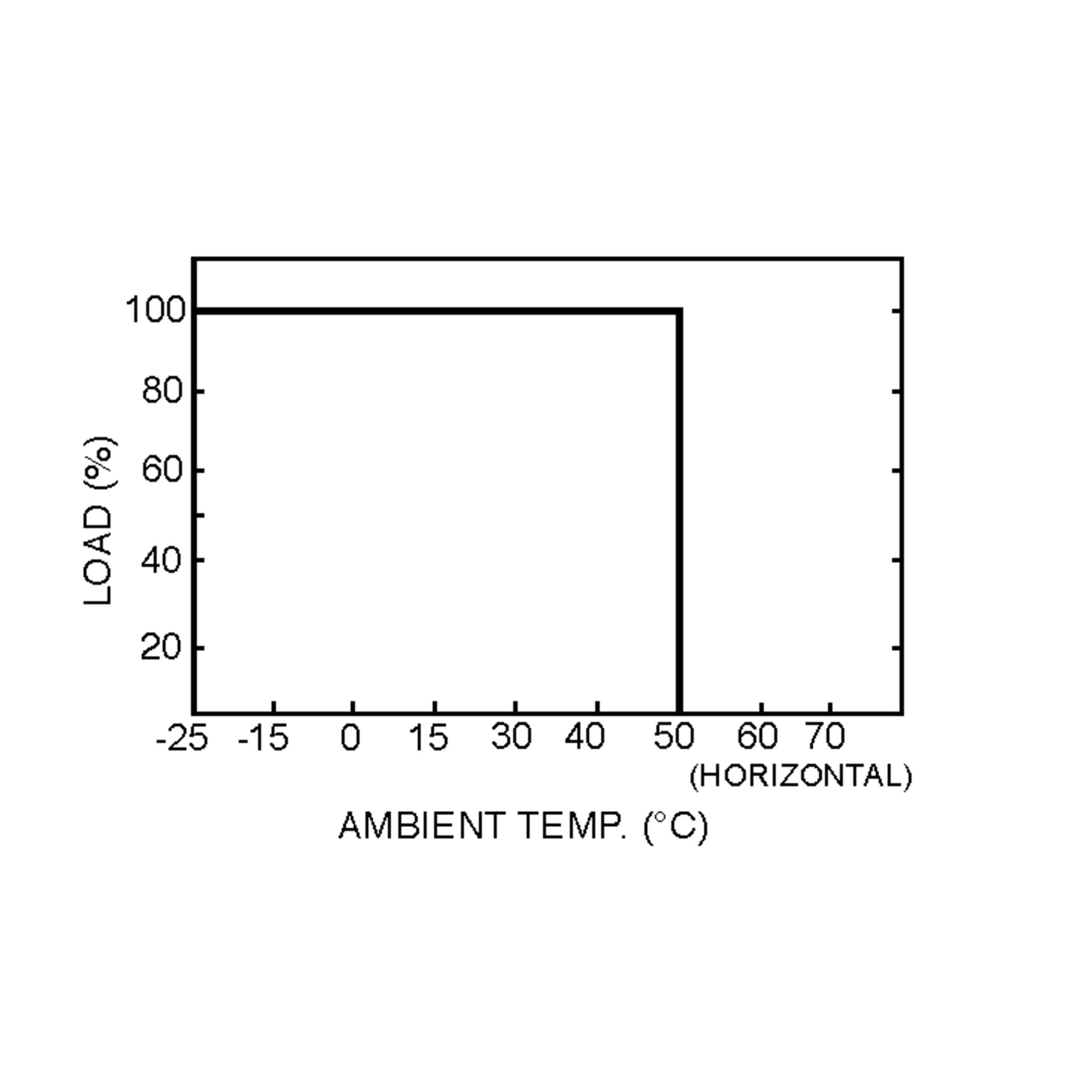

Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 50 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 80 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 127 V
Input voltage max. DC
  • 370 V
Input current
  • 1.2 A
Efficiency
  • 89.5 %
Leakage current, max.
  • 0.25 mA
Inrush current, max.
  • 75 A
Max. number on B16 circuit breaker
  • 1
Max. number on C16 circuit breaker
  • 2
Power factor correction (PFC)
Connection type, input
  • Strand
Cable length, input
  • 30 cm

Output

Number of outputs
  • 1
Output Power
  • 100.8 W
Output Voltage Min.
  • 36 V
Output Voltage Max.
  • 72 V
Output voltage tolerance
  • -15.15 %
Ripple & Noise
  • 1,500 mVp-p
Output current
  • 1.400 A
Current ripple
  • 5 %
Overload protection
Short-circuit protection
Overvoltage protection
Connection type, output
  • Strand
Cable length, output
  • 30 cm

Safety/Certifications

Protection class
  • II
Protection Class IP
  • IP67
Isolation voltage I/P-O/P
  • 3,000 V
Approvals
  • CE
  • EAC
  • EN
  • IEC
  • UKCA
Standards (EMC)
  • EN 55032 Class B
Standards (safety)
  • EN 62368-1
  • IEC 62368-1
