28 Pcs. in stock
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Package/Case
Open Frame
Output Power
601.2 W
Output voltage
36 V
Output current
16.700 A
Efficiency
95 %
Medical protection classification
2*MOPP
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
LOP-600
Product group
L6770
Application
Household
ITE
Industry
Medical
Package/Case
Open Frame
Dimension: Length
127 mm
Dimension: Width
76.2 mm
Dimension: Height
33.5 mm
Weight
480 g
Label
TÜV
Manufacturer's warranty (years)
3
Product description

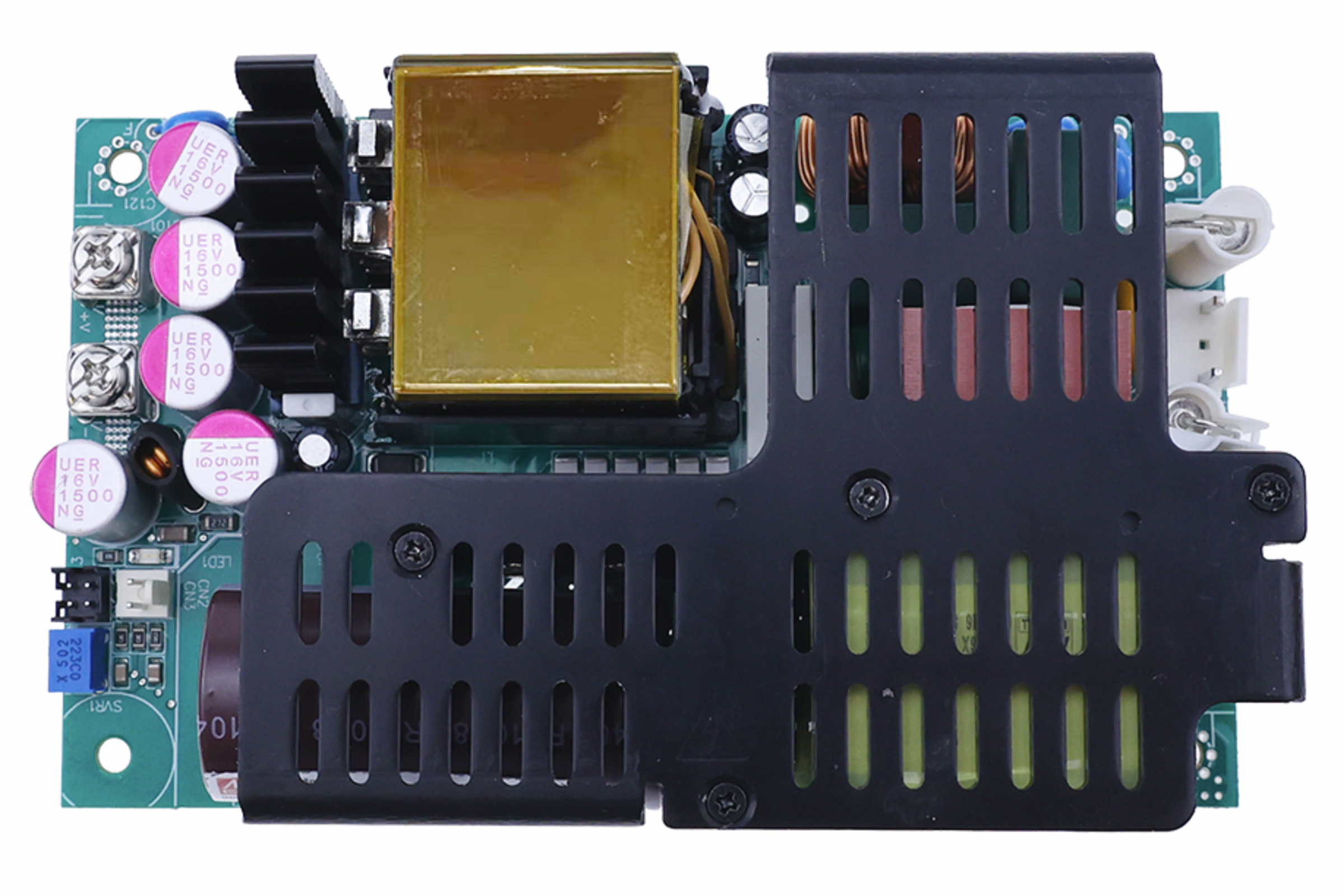

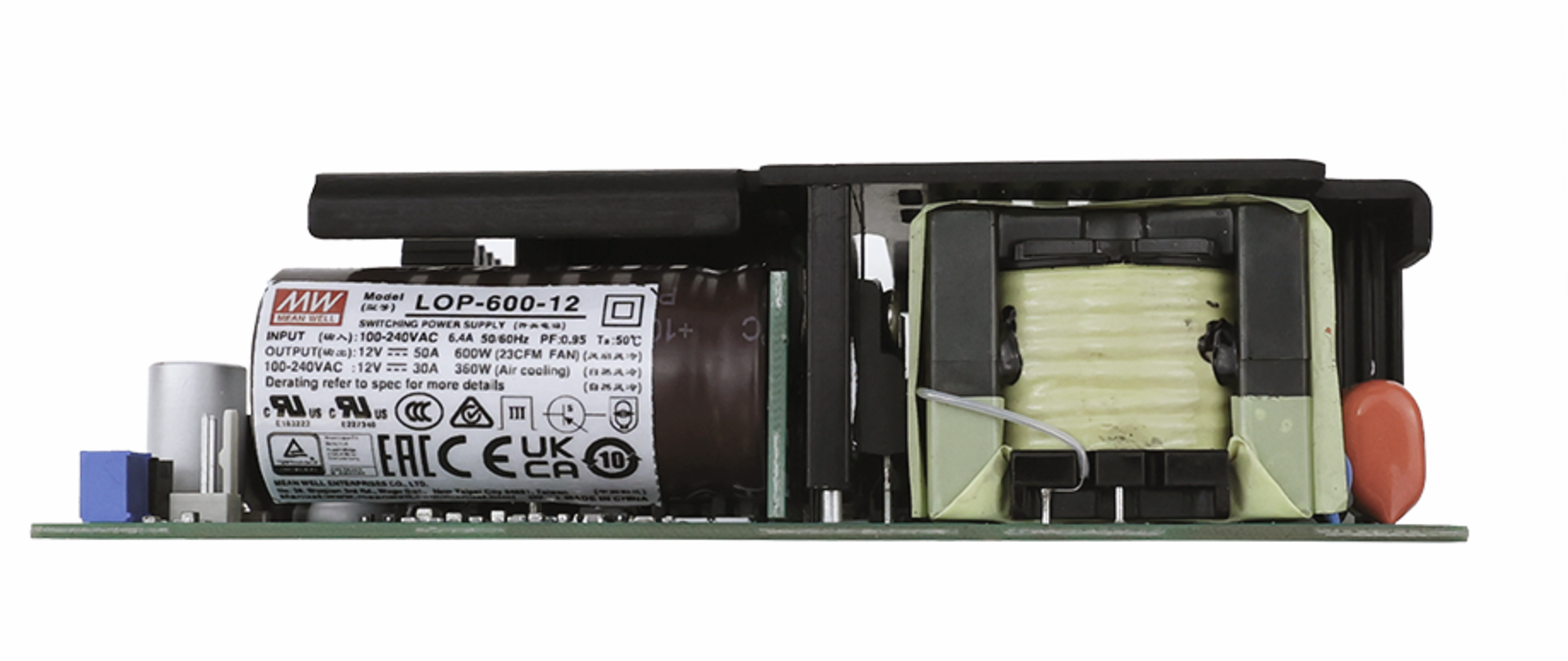

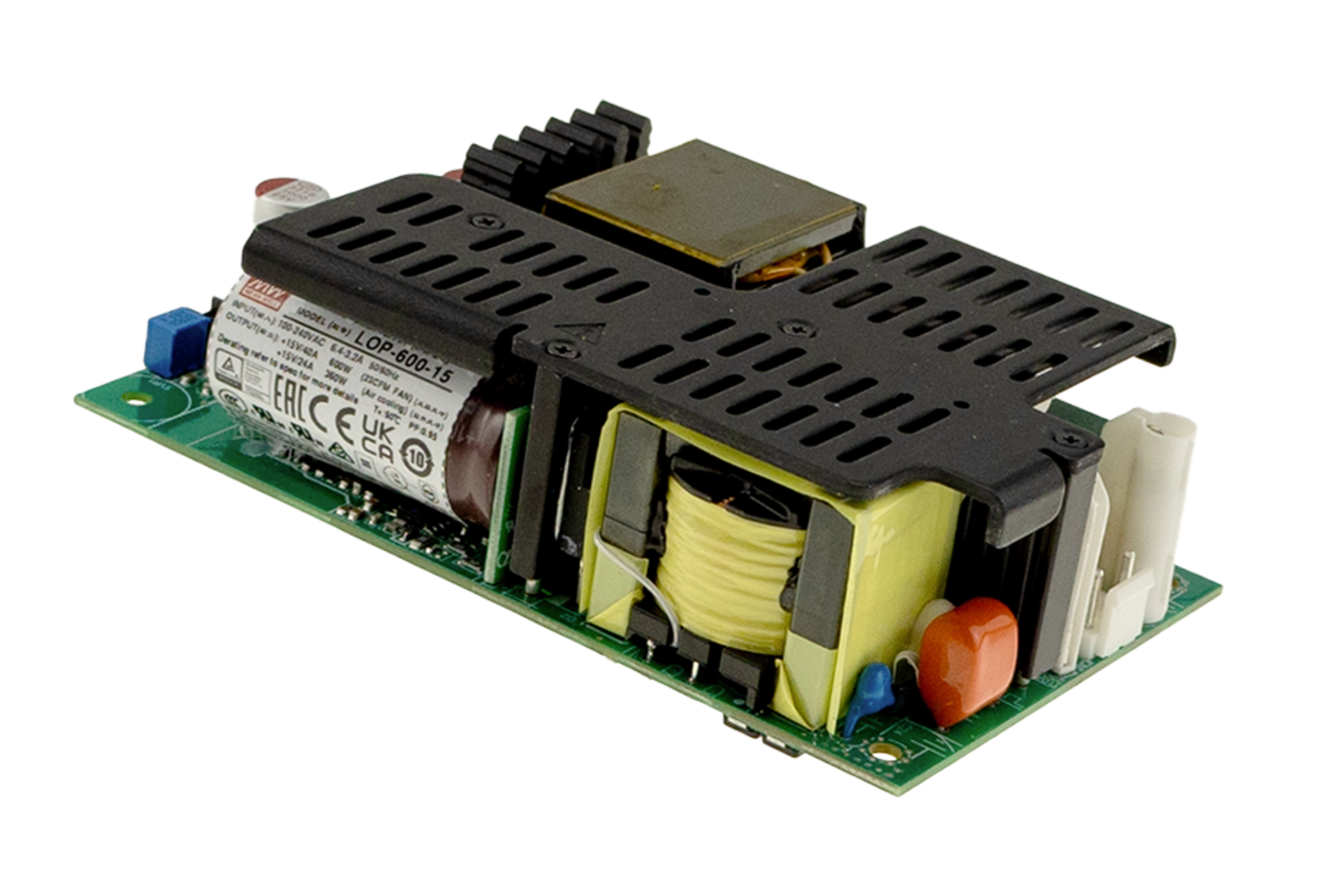

The LOP-600 is a highly reliable, energy efficient 600W open frame, low profile power supply. With a high power density of 30.3W/M³ in a standard 5" x 3" size, it offers a universal input voltage range of 80-264VAC, making it suitable for global applications. The series offers a comprehensive selection of standard voltages, including 12V/15V/18V/24V/27V/36V/48V/54V, and is available in a complete range of models. Key features of the LOP-600 include: low standby power (<0.5W), high efficiency (up to 95%) capable of delivering 400W with natural air cooling and 600W with additional fan. It has an overload capacity of 150% at 3 seconds, a wide operating temperature range of -40 to +80°C, complies with OVOIII and is suitable for Class I (with FG) or Class Il (without FG) systems. The product has received several safety certifications, including 62368-1/60601-1/61558-1/60335-1, and is designed to meet 2xMOPP and an extremely low touch leakage current <70 uA, making it suitable for BF class medical devices. Thanks to the high product safety and excellent EMC performance, it is versatile and applicable in various fields such as ITE, medical technology, industrial control, home automation and more. It is a cost-effective, slim open-frame power supply.
Features
Adjustable Output Voltage
DC compatible
DC-OK-Signal
Fan Connector
Peak Power
Remote Sense
Application note
These power supply units are intended for installation in end devices.
