58 Pcs. in stock
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
Package/Case
Open Frame
Output Power
400.5 W
Output voltage
15 V
Output current
26.800 A
Efficiency
94.5 %
Medical protection classification
2*MOPP
RoHS-Conform
Specifications
Close all
General
Manufacturer
MEAN WELL
Series
LOP-400
Product group
L6735
Application
Household
ITE
Industry
Medical
Package/Case
Open Frame
Dimension: Length
127 mm
Dimension: Width
76.2 mm
Dimension: Height
27.5 mm
Weight
390 g
Label
TÜV
Manufacturer's warranty (years)
3

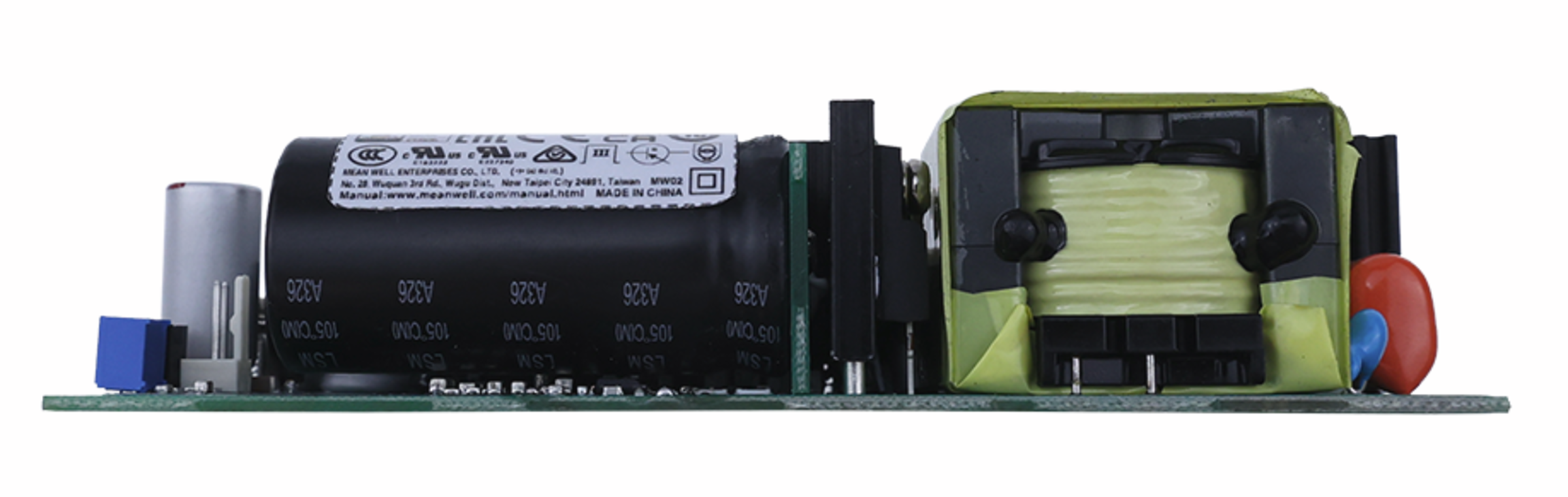

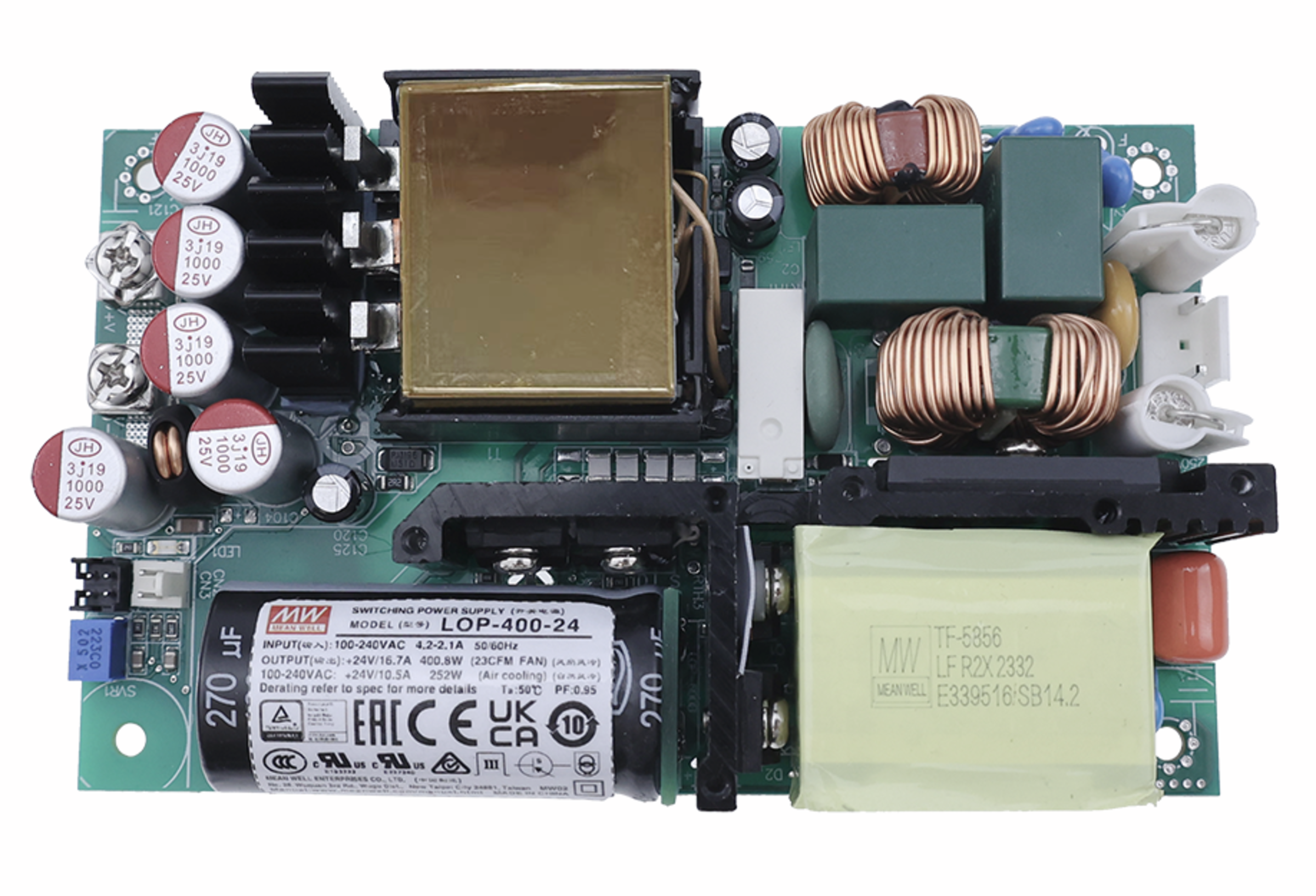

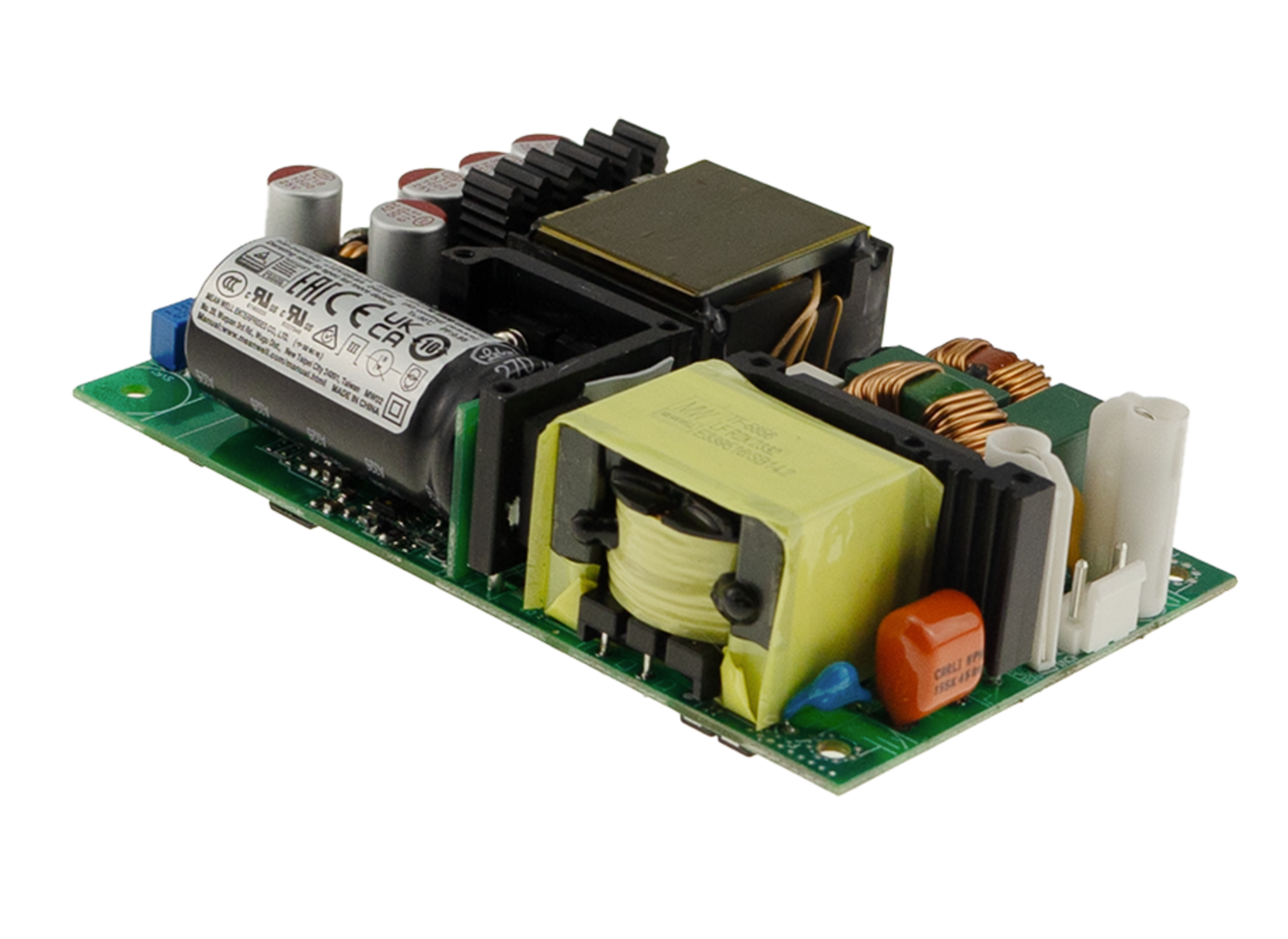

Product description
The LOP-400 is a highly reliable, energy-efficient 400W power supply in a flat open-frame design. With a high power density of 24.6W/m³ in a standard 5" x 3" size, it offers a universal input voltage range of 80-264VAC, making it suitable for global applications. The series offers a comprehensive range of standard voltages including 12V/15V/18V/24V/27V/36V/48V/54V and is available in a complete model line. Key features of the LOP-400 include: low standby power (<0.5W), high efficiency (up to 95%) capable of delivering 250W with natural air cooling and 400W with an additional fan. It has an overload capacity of 150% at 3 seconds, a wide operating temperature range of -40 to +80°C, complies with OVOIII and is suitable for Class I (with FG) or Class II (without FG) systems. The product has received several safety certifications, including 62368-1/60601-1/61558-1/60335-1, and is designed to meet 2xMOPP and an extremely low touch leakage current <70 uA, making it suitable for BF class medical devices. Thanks to the high product safety and excellent EMC performance, it is versatile and applicable in various fields such as ITE, medical, industrial control, home automation and others. It is a cost-effective, slim open-frame power supply.
Features
Adjustable Output Voltage
DC compatible
DC-OK-Signal
Fan Connector
Peak Power
Remote Sense
Application note
These power supply units are intended for installation in end devices.
