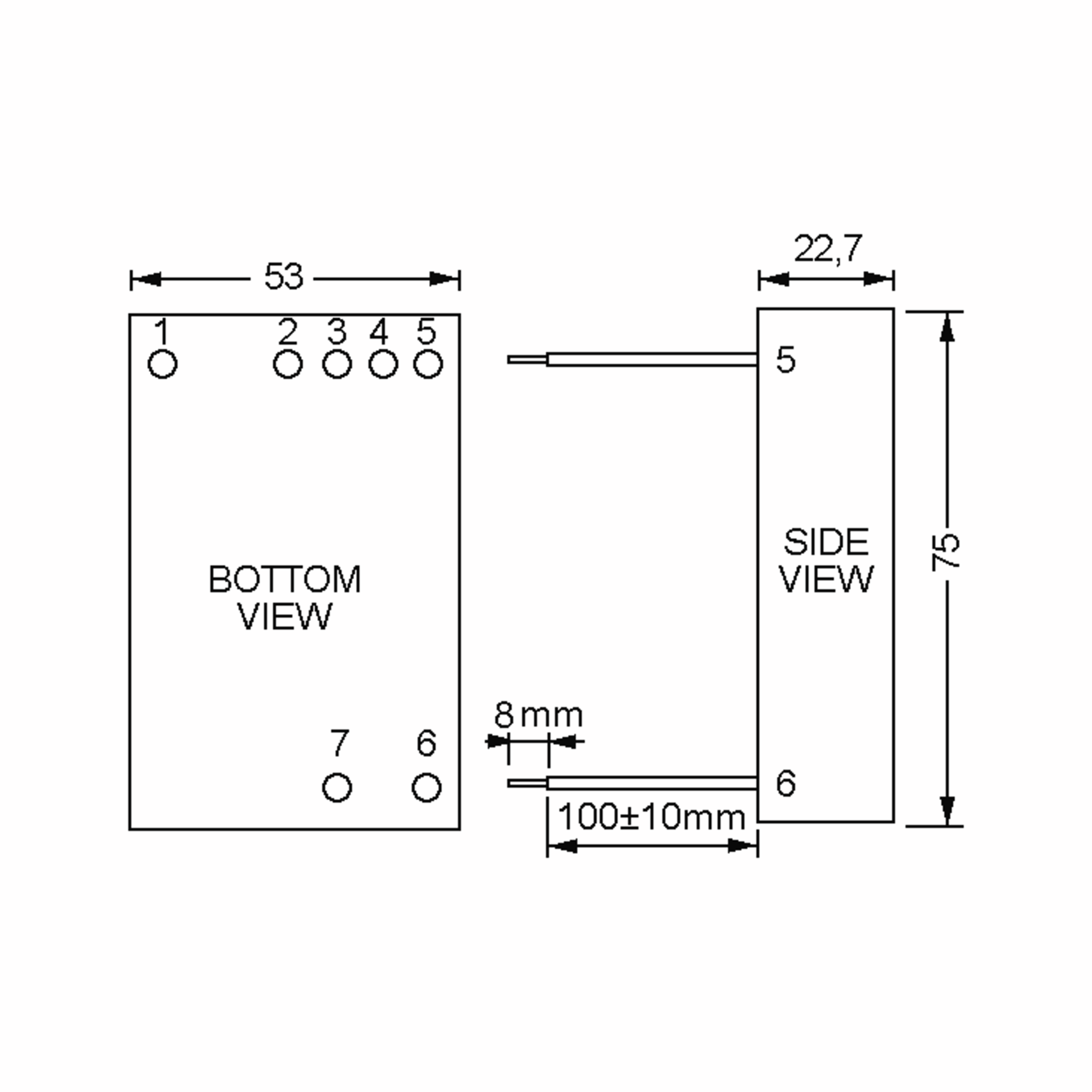

LDH-45B-700WDA
MEAN WELL DC/DC LED driver 0,7 A 36 V 64 V Dali
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
18 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Output current
- 0.700 A
- Output Voltage Min.
- 36 V
- Output Voltage Max.
- 64 V
- Interfaces
- Dali
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 1,179,300 h
- Operating expectation
- 50,000 h
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 85 °C
Input
- Input voltage min. DC
- 18 V
- Input voltage max. DC
- 32 V
- Efficiency
- 95 %
- Connection type, input
- Strand
- Cable length, input
- 10 cm
Output
- Output Power
- 44.8 W
- Output Voltage Min.
- 36 V
- Output Voltage Max.
- 64 V
- Ripple & Noise
- 1,200 mVp-p
- Output current
- 0.700 A
- Output current tolerance
- -5 %
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Strand
- Cable length, output
- 10 cm
Safety/Certifications
- Approvals
- CE
- EAC
- UKCA
- Standards (EMC)
- EN 55015
- Standards (safety)
- EN 61347-1
- EN 61347-2-13
