LDD-1000HS
DC/DC LED driver Analog Control Voltage PWM
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
LTB 30.12.2022
Abgekündigt durch Hersteller mit Ersatz
Data Sheet
ECAD Model
Prices
Manufacturer bundle Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Output current
- 1.2 A
- Output Voltage Min.
- 2 V
- Output Voltage Max.
- 52 V
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 1000000 h

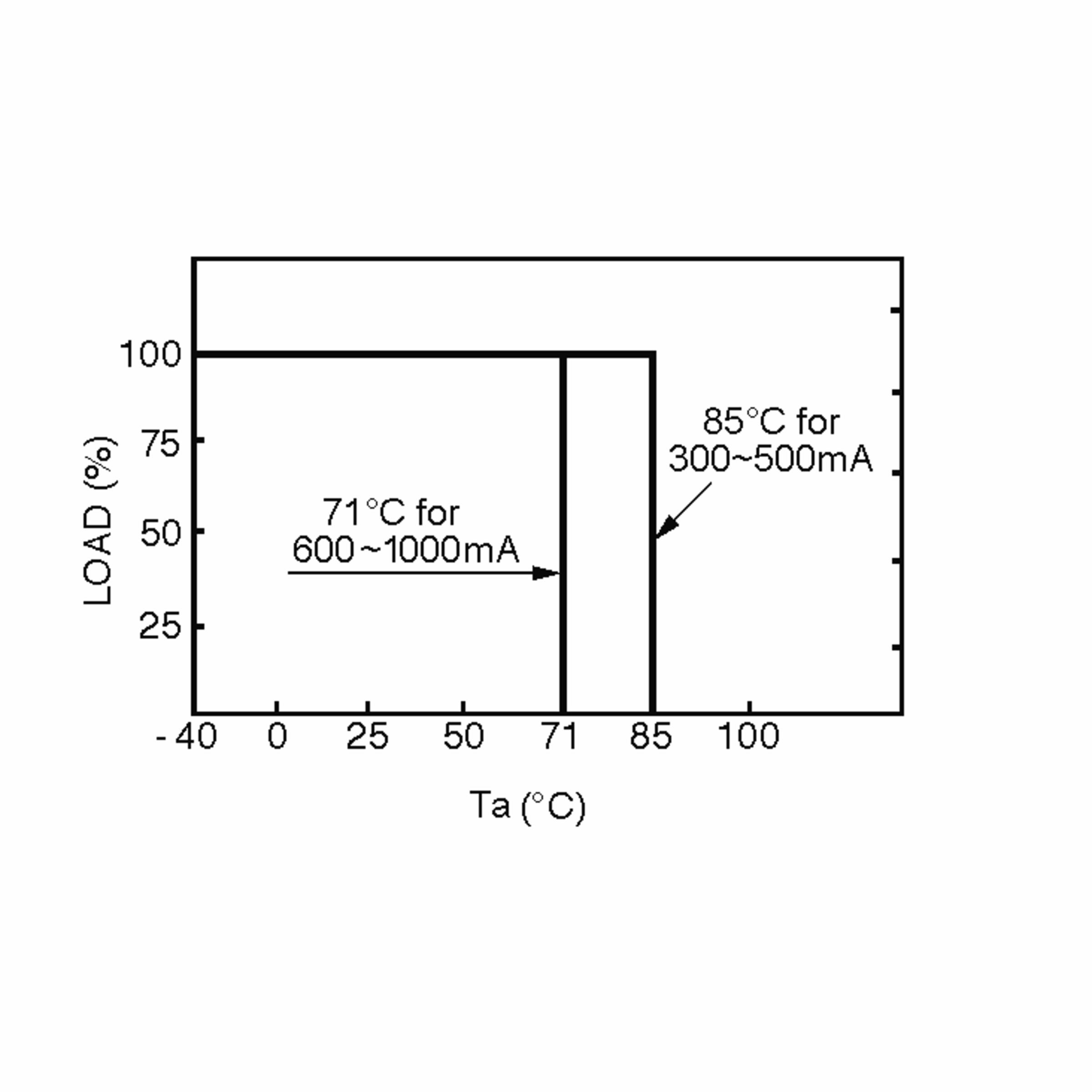

- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 125 °C
Input
- Input voltage min. DC
- 9 V
- Input voltage max. DC
- 56 V
- Efficiency
- 96 %
Output
- Output Voltage Min.
- 2 V
- Output Voltage Max.
- 52 V
- Ripple & Noise
- 350 mVp-p
- Output current
- 1.2 A
- Output current tolerance
- -5 % 5 %
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Capacitive load, max.
- 2.2 µF
Safety/Certifications
- Protection Class IP
- IP67
- Approvals
- EAC
- CE
