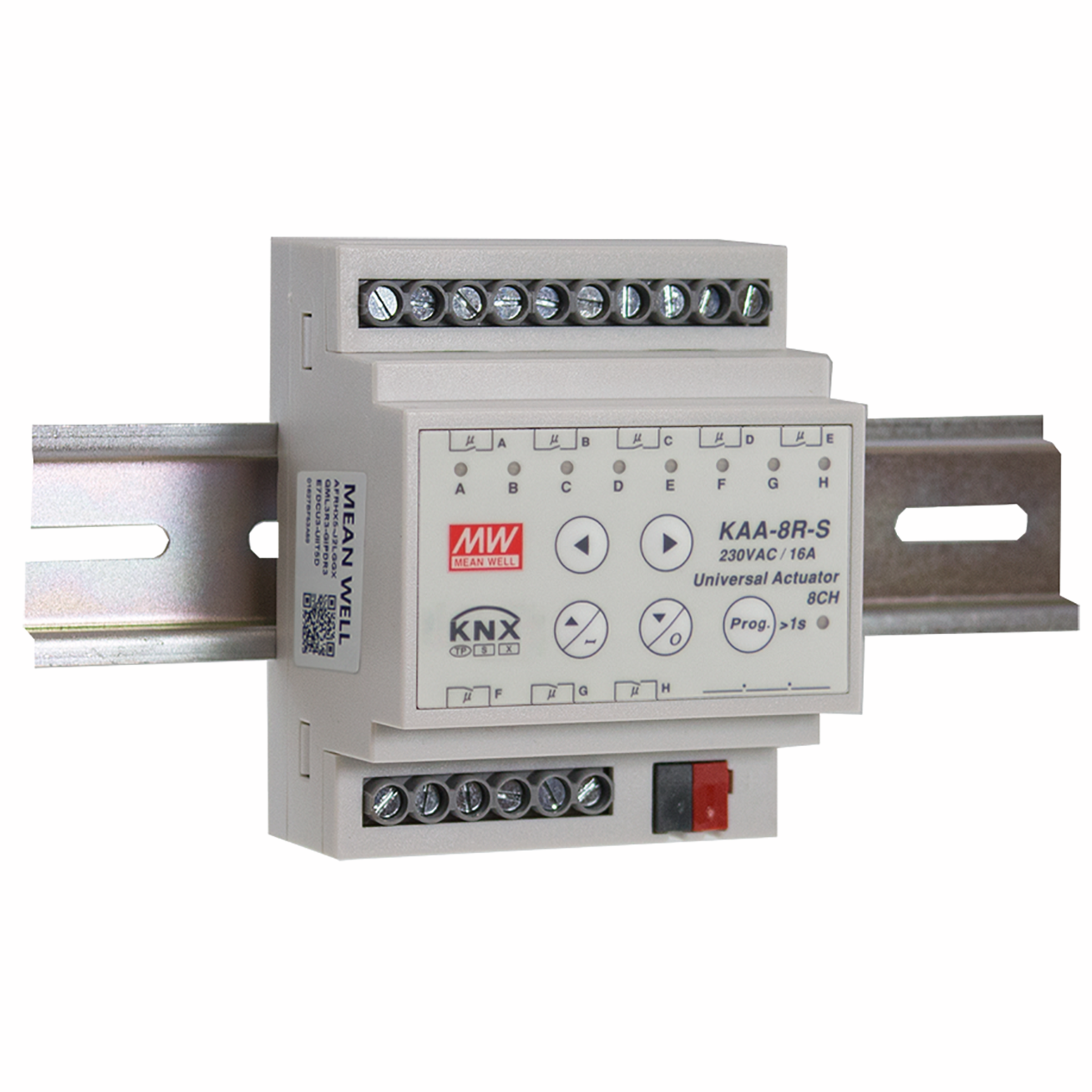

KAA-8R-10S
MEAN WELL KNX building automation Universal Actuator
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Next Stock Receipt
Week 04/2025
40 Pcs.
40 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 48 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Universal Actuator
- Number of Channels
- 8
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 45 °C
- Storage Temperature Min.
- -35 °C
- Storage Temperature Max.
- 70 °C
Input
- Input voltage min. DC
- 21 V
- Input voltage max. DC
- 31 V
- Input current
- 0.01 A
- Connection type, input
- Screw Terminal
Output
- Number of Channels
- 8
- Output current per channel
- 10 A
- Overload protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Screw Terminal
- Capacitive load, max.
- 220 µF
Safety/Certifications
- Approvals
- CE
- EAC
- EN
- UKCA
- Standards (safety)
- EN 50491
Documents
KAA-8R,KAA-8R-S-E.pdf
KNX_Application Database.pdf
MW_Catalog-led.pdf
MW_Industrial-EN-s.pdf
Other Products
All Products of the Series
