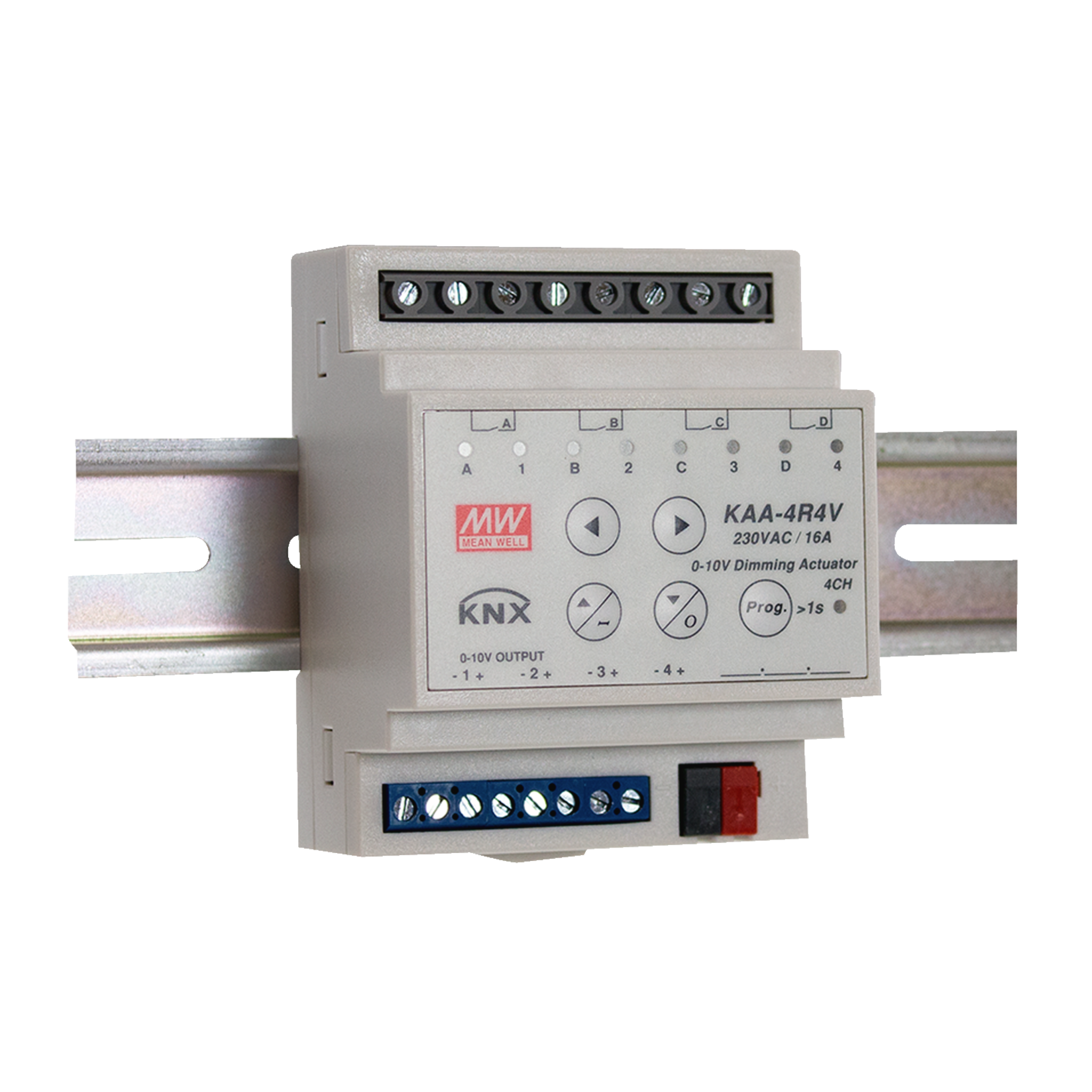

KAA-4R4V
MEAN WELL KNX building automation Dimming Actuator
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 01.06.2023
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 48 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 240 or multiple of 240)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Dimming Actuator
- Number of Channels
- 4
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 45 °C
- Storage Temperature Min.
- -35 °C
- Storage Temperature Max.
- 70 °C
Input
- Input voltage min. DC
- 21 V
- Input voltage max. DC
- 31 V
- Input current
- 0.011 A
- Connection type, input
- Screw Terminal
Output
- Number of Channels
- 4
- Output current per channel
- 16 A
- Overload protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Screw Terminal
- Capacitive load, max.
- 220 µF
Safety/Certifications
- Approvals
- CE
- EAC
- EN
- UKCA
- Standards (safety)
- EN 50491
Documents
KAA-4R4V-E.pdf
KNX_Application Database.pdf
MEAN_WELL_Katalog_Industrie_2026.pdf
MEAN_WELL_Katalog_LED.pdf
