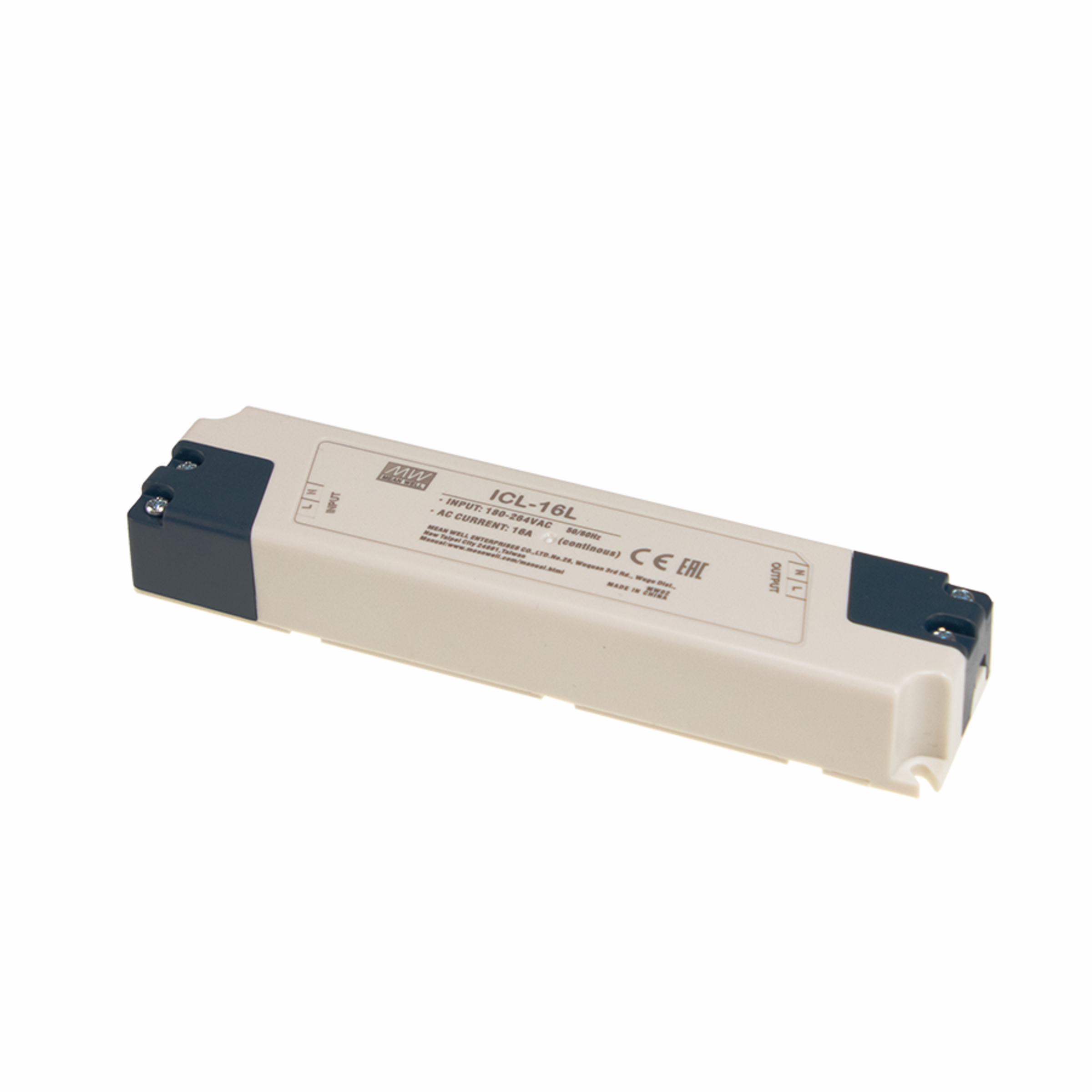

ICL-16L
MEAN WELL Inrush current limiter 23 A 300 ms 2.500 µF Enclosed Plastic
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
752 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 98 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Peak current limitation
- 23 A
- Limitation period
- 300 ms
- Capacitive load, max.
- 2,500 µF
- Package/Case
- Enclosed Plastic
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 2,508,620 h
- Operating Temperature Min.
- -30 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 85 °C
- Limitation period
- 300 ms
Input
- Mains connection/phases
- I
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 180 V
- Input voltage max. AC
- 264 V
- Input current
- 16 A
- Connection type, input
- Screw Terminal
Output
- Overload protection
- Overtemperature protection
- Connection type, output
- Screw Terminal
- Capacitive load, max.
- 2,500 µF
- Peak current limitation
- 23 A
Safety/Certifications
- Protection class
- II
- Approvals
- CE
- EAC
- UKCA
- Standards (EMC)
- EN 55032 Class B
- Standards (safety)
- IEC 62368-1
Documents
ICL AC inrush current limiter.pdf
ICL AC inrush current limiter.pdf
MW_Catalog-led.pdf
MW_Industrial-EN-s.pdf
Other Products
All Products of the Series
