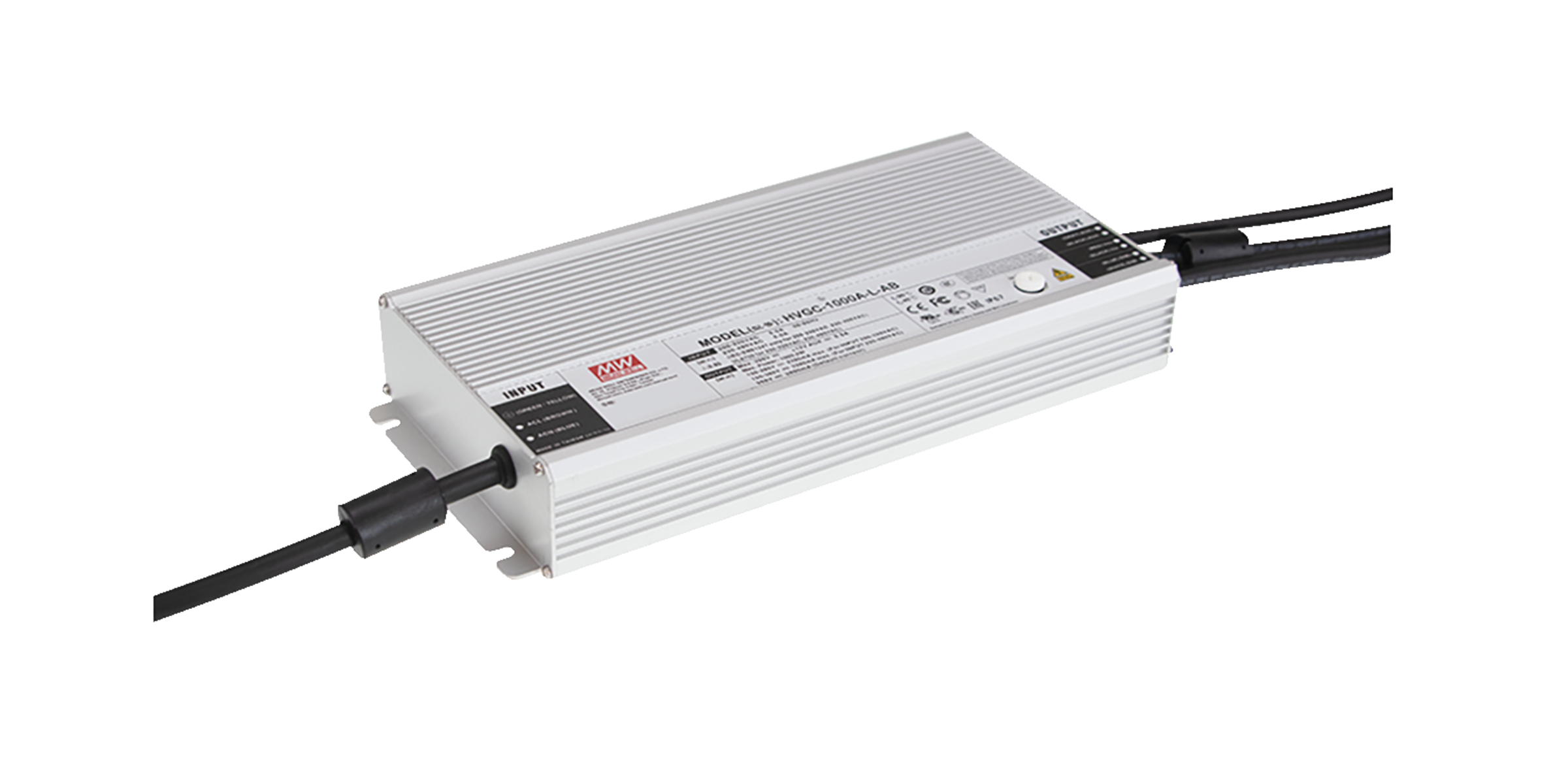

HVGC-1000A-H-DA
MEAN WELL AC/DC LED power supply unit CP 1.008W IP67 Dali-2
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
200 Pcs.
200 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 200 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Operating mode
- CP
- Output Power
- 1,008 W
- Output Current Min.
- 5.600 A
- Output Current Max.
- 7.000 A
- Output Voltage Min.
- 70 V
- Output Voltage Max.
- 180 V
- Protection Class IP
- IP67
- Interfaces
- Dali-2
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 68,400 h
- Operating expectation
- 50,000 h
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 90 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 80 °C
Input
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 180 V
- Input voltage max. AC
- 528 V
- Input current
- 2.28 A
- Efficiency
- 96 %
- No load power, less than
- 0.5 W
- Power consumption in networked standby mode (Pnet), less than
- 0.5 W
- Leakage current, max.
- 0.75 mA
- Inrush current, max.
- 40 A
- Max. number on B16 circuit breaker
- 4
- Max. number on C16 circuit breaker
- 8
- Power factor correction (PFC)
- Power factor
- 0.98
- Connection type, input
- Strand
- Cable length, input
- 30 cm
Output
- Number of outputs
- 1
- Output Power
- 1,008 W
- Output Voltage Min.
- 70 V
- Output Voltage Max.
- 180 V
- Selectable output current
- Output Current Min.
- 5.600 A
- Output Current Max.
- 7.000 A
- Output current tolerance
- -5 %
- Current ripple
- 3 %
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Strand
- Cable length, output
- 35 cm
Safety/Certifications
- Protection class
- I
- Protection Class IP
- IP67
- Isolation voltage I/P-O/P
- 3,000 V
- Isolation voltage I/P-FG
- 2,000 V
- Isolation voltage O/P-FG
- 1,500 V
- Approvals
- CCC
- CE
- CSA
- EAC
- EN
- ENEC
- IEC
- UKCA
- UL
- Standards (EMC)
- EN 55015
- Standards (safety)
- EN 61347-1
- EN 61347-2-13
- IEC 61347-1
- IEC 61347-2-13
- UL 8750
