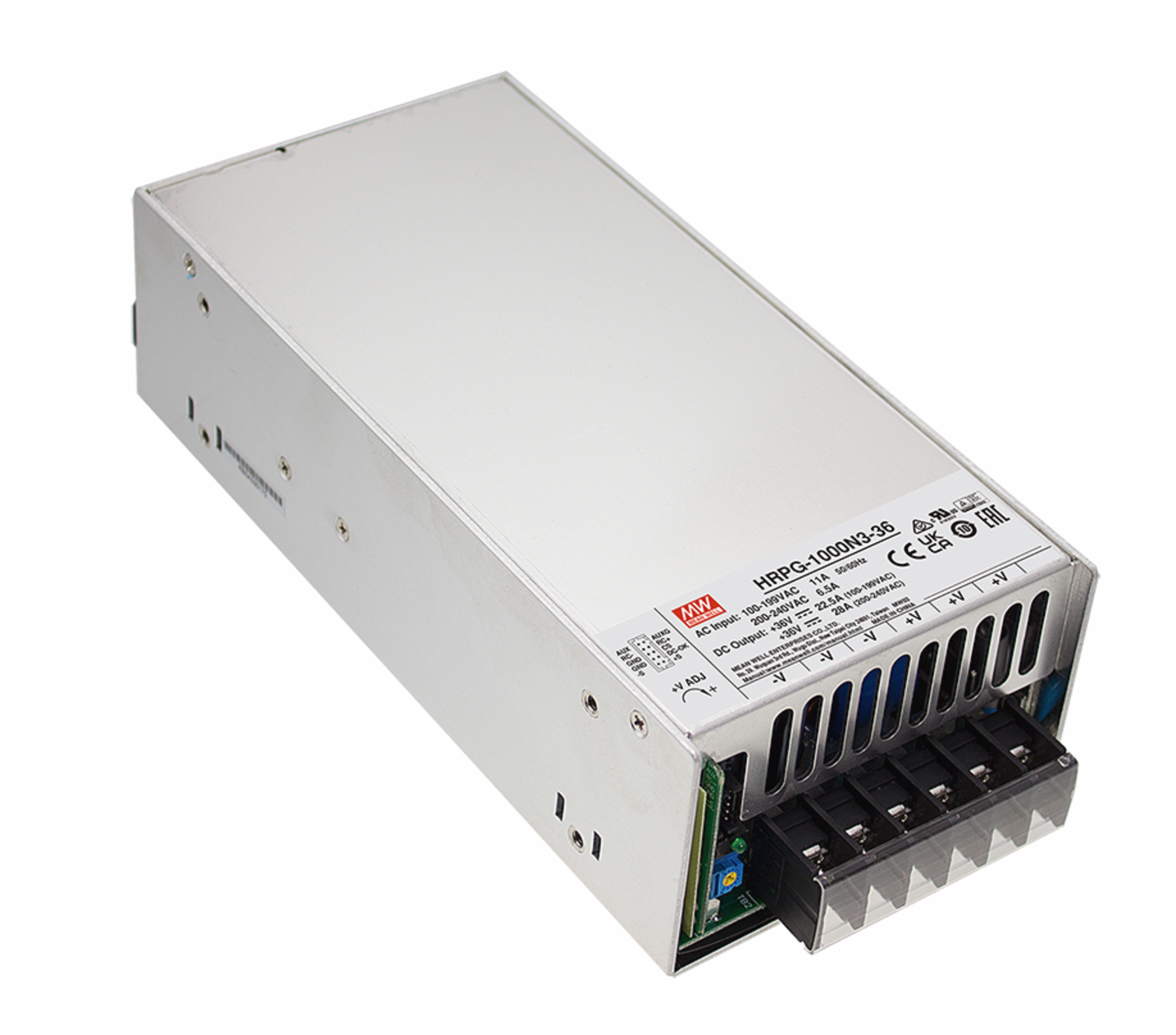

HRPG-1000N3-12

MEAN WELL AC/DC industrial power supply unit Enclosed Metal 960W 12V 80A

HRPG-1000N3-12HRPG-1000N3-12HRPG-1000N3-12HRPG-1000N3-12
Manufacturer Part No.
HRPG-1000N3-12
Schukat Part No.
HRPG-1000N3-12
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

4 Pcs. in stock

Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 8 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Package/Case
Enclosed Metal
Output Power
960 W
Output voltage
12 V
Output current
80.000 A
Efficiency
91.5 %
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • HRPG-1000N3
Product group
  • L2192
Application
  • ITE
  • Industry
Package/Case
  • Enclosed Metal
Dimension: Length
  • 218 mm
Dimension: Width
  • 105 mm
Dimension: Height
  • 61.5 mm
Weight
  • 1,460 g
Label
  • TÜV
Manufacturer's warranty (years)
  • 5
Product description
  • The HRPG-1000N3 series is a 1000W single output AC/DG power supply with extremely high peak power. This series operates with an input voltage of 90-264 VAC and offers models with different nominal voltages between 12 and 48 V, which can meet the requirements of all types of industrial equipment. Each model is cooled by the built-in variable speed fan and can operate up to a temperature of 70°C. In addition, the HRPG-1000N3 has various built-in functions, such as auxiliary voltage, remote sense and on/off remote control, which provide great flexibility for industrial applications. It can provide 320% peak power for motor applications and electromechanical loads for a short time, e.g. to cover the short-term, significantly higher power requirement during a motor start-up.
Features
  • AUX Power Supply
  • Adjustable Output Voltage
  • DC compatible
  • DC-OK-Signal
  • Parallel Function
  • Peak Power
  • Remote Function
  • Remote Sense
Application note
  • These power supplies are considered as a component that has to be installed in a final equipment.

Operating conditions

MTBF
  • 130,600 h
Operating expectation
  • 50,000 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 70 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Mains connection/phases
  • I
Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input voltage min. DC
  • 127 V
Input voltage max. DC
  • 370 V
Input current
  • 5 A
Efficiency
  • 91.5 %
No load power, less than
  • 0.85 W
Leakage current, max.
  • 1.2 mA
Inrush current, max.
  • 40 A
Power factor correction (PFC)
Power factor
  • 0.95
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 1
Output Power
  • 960 W
Output voltage
  • 12 V
Output voltage tolerance
  • -2.2 %
Ripple & Noise
  • 150 mVp-p
Output current
  • 80.000 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Screw Terminal

Safety/Certifications

Protection class
  • I
Isolation voltage I/P-O/P
  • 3,000 V
Isolation voltage I/P-FG
  • 2,000 V
Isolation voltage O/P-FG
  • 500 V
Approvals
  • AS/NZ
  • CE
  • CSA
  • EAC
  • EN
  • IEC
  • UKCA
  • UL
Standards (EMC)
  • EN 55032 Class B
Standards (safety)
  • EN 62368-1
  • IEC 62368-1
  • UL 62368-1

Documents

Enclosed_Type_GE.pdf
Download (pdf, 973 KB)
MEAN_WELL_Katalog_Industrie_2026.pdf
Download (pdf, 48.955 KB)
MEAN_WELL_Katalog_LED.pdf
Download (pdf, 53.159 KB)
