HLG-185H-12A

MEAN WELL AC/DC LED power supply unit CV/CC

HLG-185H-12AHLG-185H-12AHLG-185H-12AHLG-185H-12A
TOP
Manufacturer Part No.
HLG-185H-12A
Schukat Part No.
HLG-185H-12A
Manufacturer
MEAN WELL
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

29 Pcs. in stock

Next Stock Receipt
Week 51/2026
228 Pcs.
Planned delivery time
Ø 14 Weeks
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 12 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable surge protection devices.
Here you will find suitable inrush current limiters.
Here you will find suitable EMC & interference suppression components.
Here you will find suitable connection terminals.
Here you will find suitable crimp/solder connectors and sleeves/cable lugs.
Here you will find suitable PWM dimmers and controllers.
Operating mode
CV/CC
Output Power
156 W
Output voltage
12 V
Output current
13.000 A
Protection Class IP
IP65
Interfaces
not dimmable
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • MEAN WELL
Series
  • HLG-185H
Product group
  • L4175
Application
  • Lighting
Operating mode
  • CV/CC
Package/Case
  • Enclosed Metal

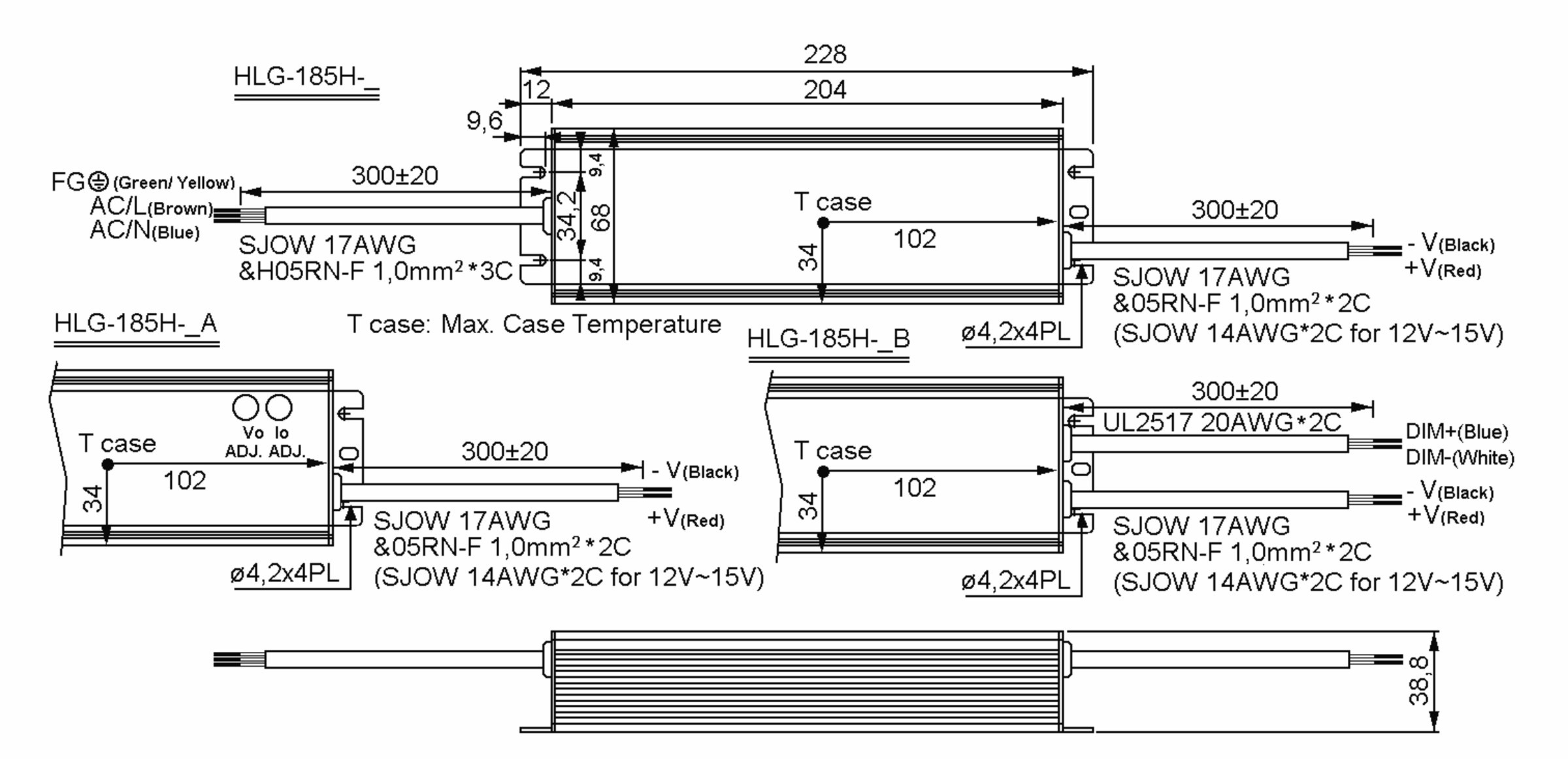

Dimension: Length
  • 228 mm
Dimension: Width
  • 68 mm
Dimension: Height
  • 38.8 mm
Weight
  • 1.15 g
Label
  • TÜV; SELV; MM-Zeichen
Dimmable
Interfaces
  • not dimmable
Manufacturer's warranty (years)
  • 7
Features
  • Adjustable output current
  • Adjustable output voltage
  • DC compatible
  • Independent Control Gear
Application note
  • Power supply for operating LED light sources. These products are not designed for operation in idle mode. End-of-life electronic equipment is recyclable and must not be disposed of with household waste. If the device has reached the end of its service life, please dispose of it in accordance with the applicable legal requirements at the collection points of the waste disposal system. Disposal via household waste is prohibited.
Notice

Operating conditions

MTBF
  • 192,200 h
Operating expectation
  • 62,000 h
Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 90 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 80 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 305 V
Input voltage min. DC
  • 127 V
Input voltage max. DC
  • 431 V
Input current
  • 0.8 A
Efficiency
  • 91.5 %
Leakage current, max.
  • 0.75 mA
Inrush current, max.
  • 65 A
Max. number on B16 circuit breaker
  • 4
Max. number on C16 circuit breaker
  • 7
Power factor correction (PFC)
Power factor
  • 0.95
Connection type, input
  • Strand
Cable length, input
  • 30 cm

Output

Number of outputs
  • 1
Output Power
  • 156 W
Output voltage
  • 12 V
Output voltage tolerance
  • -25.25 %
Ripple & Noise
  • 150 mVp-p
Output current
  • 13.000 A
Overload protection
Type of overload protection
  • Constant current limiting
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Strand
Cable length, output
  • 30 cm

Safety/Certifications

Protection class
  • I
Protection Class IP
  • IP65
Isolation voltage I/P-O/P
  • 3,750 V
Isolation voltage I/P-FG
  • 2,000 V
Isolation voltage O/P-FG
  • 1,500 V
Approvals
  • AS/NZ
  • CCC
  • CE
  • CSA
  • EAC
  • EN
  • IEC
  • KC
  • PSE
  • UKCA
  • UL
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13
  • IEC 61347-1
  • IEC 61347-2-13
  • UL 8750
