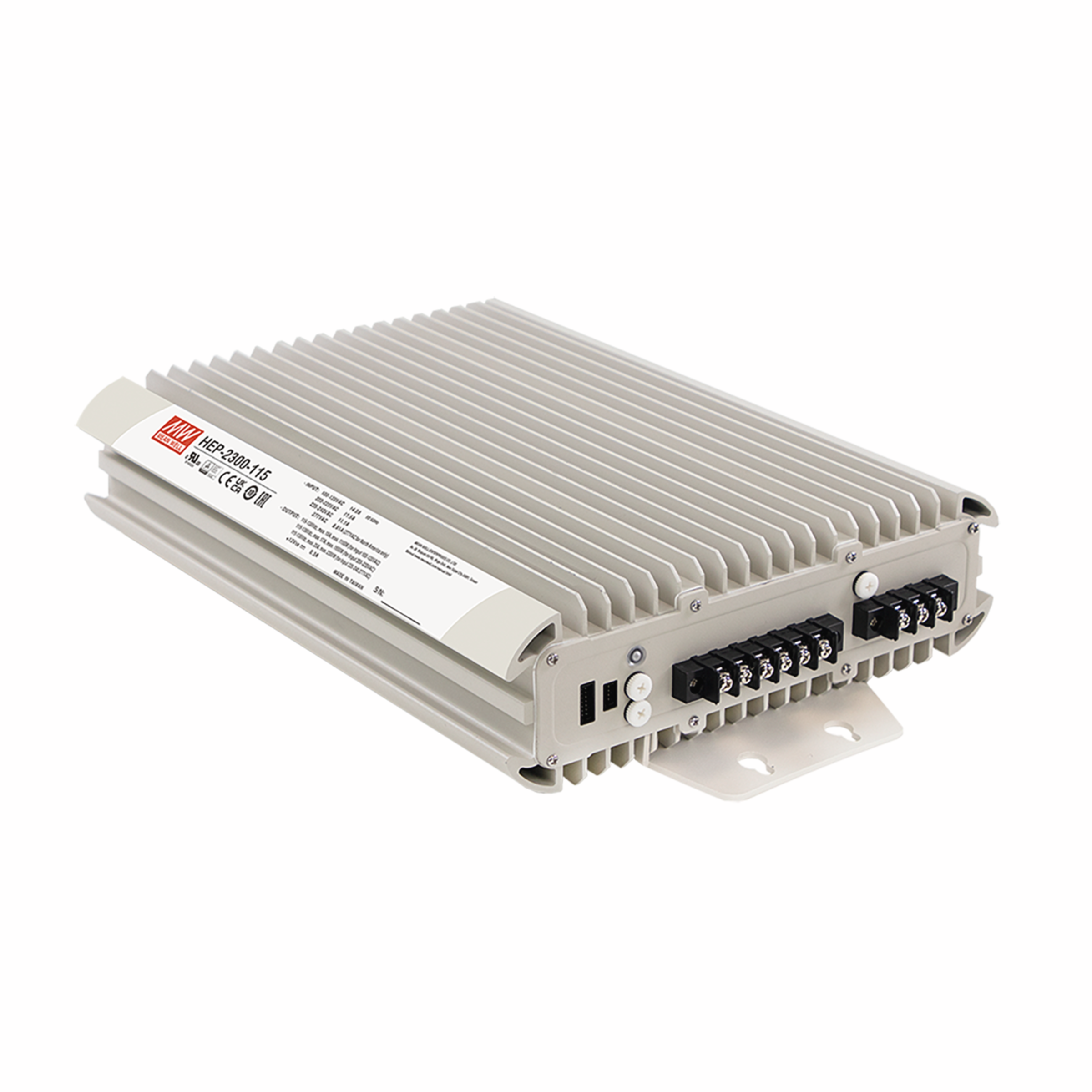

HEP-2300-55H
AC/DC industrial power supply unit Enclosed Metal 2.304W 55V 48A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
200 Pcs.
200 Pcs.
Planned delivery time
Ø 13 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Lieferbar auf Bestellung
Data Sheet
ECAD Model
Prices
Manufacturer bundle 42 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 200 or multiple of 200)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Output Power
- 2,304 W
- Output voltage
- 55 V
- Output current
- 48.000 A
- Efficiency
- 95.5 %
- RoHS-Conform
Specifications
Open all
Operating conditions
- MTBF
- 44,800 h
- Operating expectation
- 55,000 h
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 85 °C
Input
- Mains connection/phases
- I
- Mains frequency min.
- 47 Hz
- Mains frequency max.
- 63 Hz
- Input voltage min. AC
- 90 V
- Input voltage max. AC
- 305 V
- Input voltage min. DC
- 250 V
- Input voltage max. DC
- 431 V
- Input current
- 11 A
- Efficiency
- 95.5 %
- Leakage current, max.
- 1.8 mA
- Inrush current, max.
- 60 A
- Power factor correction (PFC)
- Power factor
- 0.95
Output
- Number of outputs
- 1
- Output Power
- 2,304 W
- Output voltage
- 55 V
- Output voltage tolerance
- -1.1 %
- Ripple & Noise
- 480 mVp-p
- Output current
- 48.000 A
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
Safety/Certifications
- Protection class
- I
- Protection Class IP
- IP66
- Isolation voltage I/P-O/P
- 6,000 V
- Isolation voltage I/P-FG
- 4,000 V
- Isolation voltage O/P-FG
- 4,000 V
- Overvoltage category
- 3
- Approvals
- UL
- EN
- EAC
- IEC
- CE
- UKCA
- Standards (safety)
- UL 62368-1
- IEC 62368-1
- EN 62368-1
